1.0 INTRODUCTION
This Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signal to analog L/R audio signal，also converters analog L/R audio signal to Coaxial or Toslink digital audio signal.
2.0 FEATURES
This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
1)Converts Coaxial or Toslink digital audio signals to analog audio.
2)Converts analog audio to Coaxial or Toslink digital audio signals.
3)Supports sampling rate at 32, 44.1, 48 and 192KHz.
4)24-bit SPDIF incoming bit stream on left and right channels.
5)Support Input select.
6)Support volume amplification and adjustment.
7)Provides electromagnetic-noise-free transmission.
8)Easy to install and simple to operate.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1) Audio Converter-------------------------------------------1 PCS
2) 5V DC Power Supply-------------------------------------1 PCS
3) User’s Manual----------------------------------------------1 PCS
4.0 SPECIFICATIONS
Signal Inputs/Output |
|
Input Audio | Coaxial/Toslink(digital)or R/L(Analog) audio |
Output Audio | Coaxial/Toslink(digital)or R/L(Analog) audio |
Connector |
|
Input audio connector | Toslink,1XRCA(Coaxial),2XRCA(R/L) |
Output audio connector | Toslink,1XRCA(Coaxial),2XRCA(R/L) |
Sampling rate | 32,44.1, 48,96 and 192KHz |
Mechanical |
|
Size(LxWxH) | 90.4x60.8x22.8mm |
Weight (Net) | 110g |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 ℃ to +70℃ |
Operating Humidity | 10% to 85% RH (no condensation) |
Storage Temperature | -10℃ to +80℃ |
Storage Humidity | 5% to 90% RH (no condensation) |
Power Requirement |
|
External Power Supply | DC 5V 1A |
Power Consumption | 0.5 watts (max) |
Regulatory Approvals |
|
Converter Unit | FCC,CE,UL |
Power Supply | UL,CE,FCC |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
Note: Specifications are subject to change without notice.

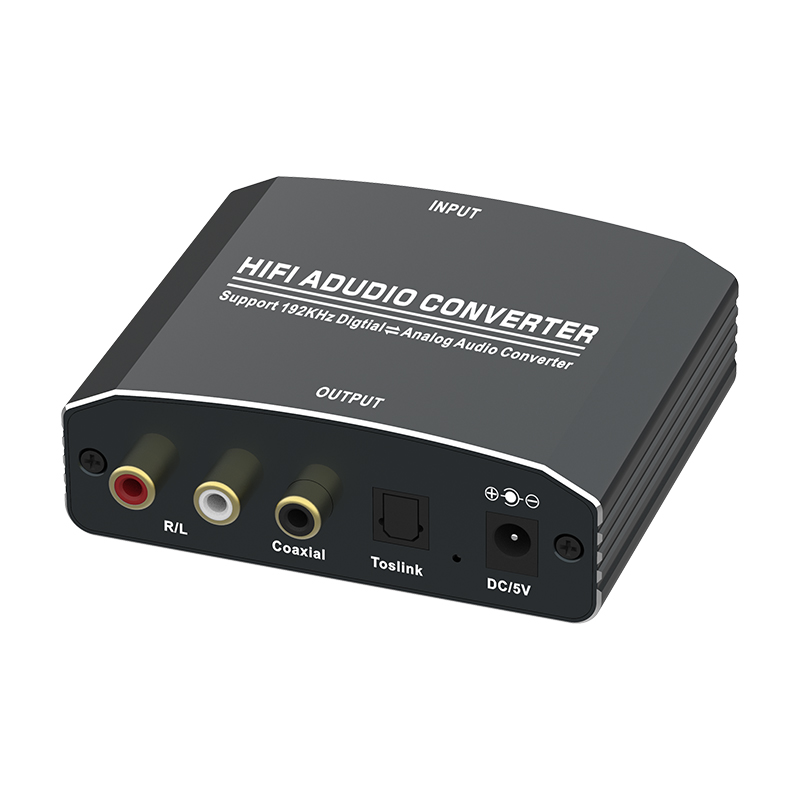

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

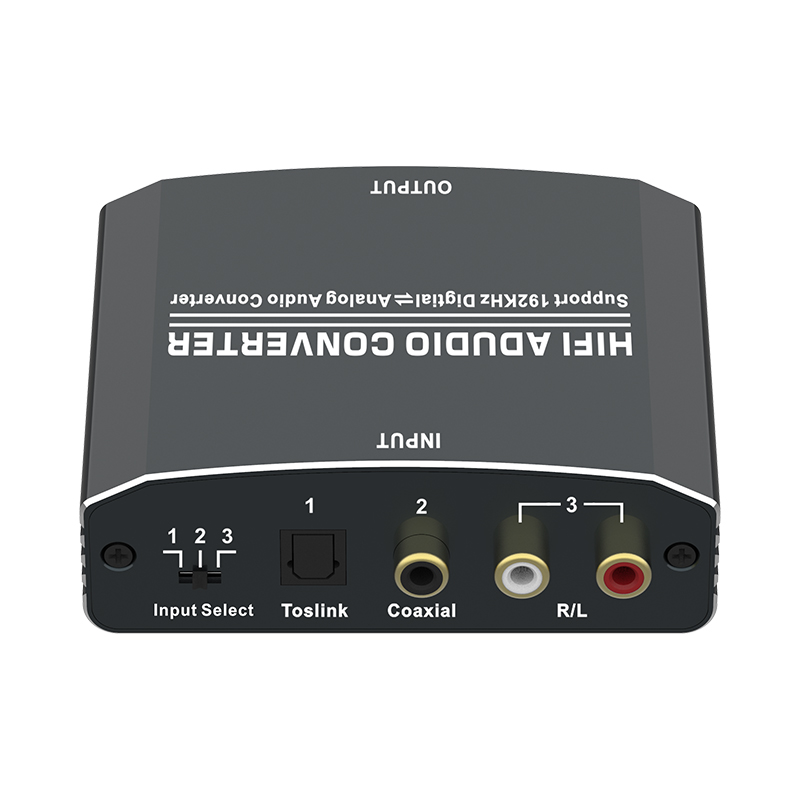

1/2/3 -------------------------------------------------------Input Select
1-Toslink --------------------Toslink digital audio input interface
2-Coaxial ------------------Coaxial digital audio input interface
3-R/L ----------------------------R/L analog audio input interface

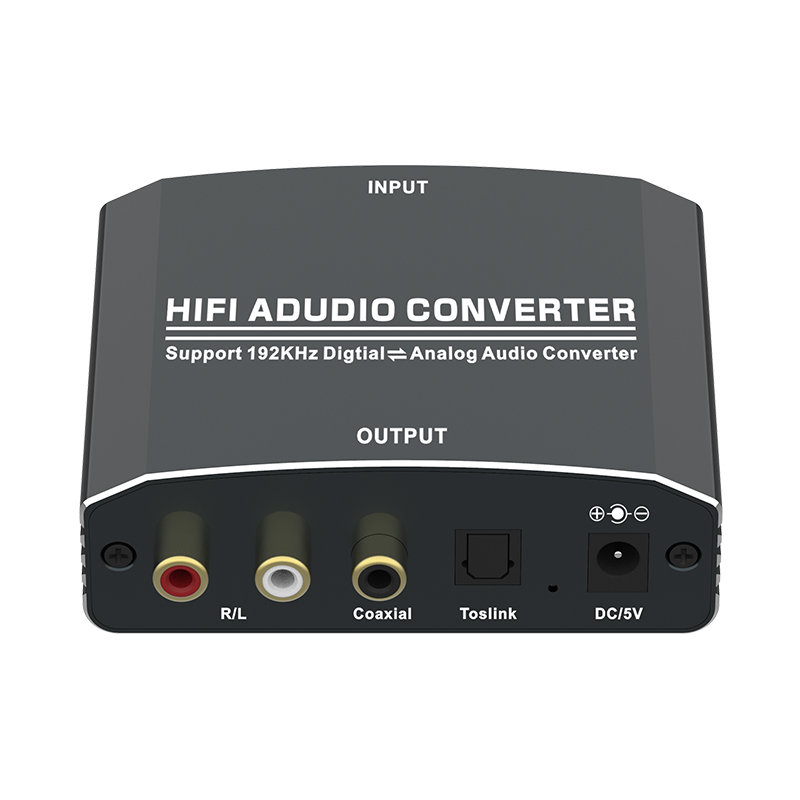

R/L -----------------------------R/L analog audio output interface
Coaxial -------------------Coaxial digital audio output interface
Toslink ---------------------Toslink digital audio output interface

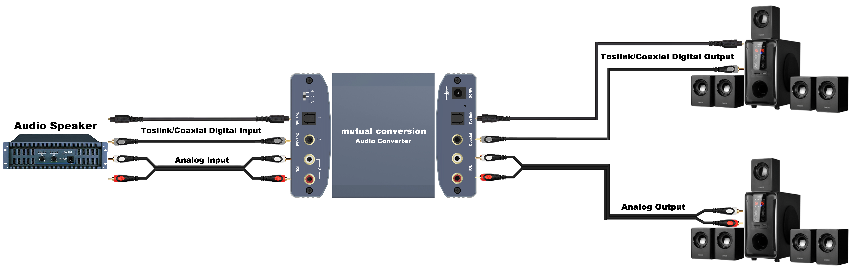

6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off.
1) Connect the audio source device to the Converter using appropriate Toslink
or Coaxial cables.
2) Connect the A/V Receivers or Amplifiers to the Converter using appropriate
R/L cable.
3) The earphone is connected to the converter 3.5mm audio interface.
4) Insert the DC side of 5v power supply into the converter and then connect
the AC side of the power supply into the wall outlet.
