Digital to Analog +3.5mm Stereo Audio Converter Price:¥

Online inquiry
Detailed content

1.0 INTRODUCTION

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks and 3.5mm stereo jack,This Converter is small in size and quite easy to install.



2.0 FEATURES

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1)Converts Coaxial or Toslink digital audio signals to analog audio.

2)Supports sampling rate at 32, 44.1, 48 and 192KHz.

3)24-bit SPDIF incoming bit stream on left and right channels.

4)Support Input select.

5)Support volume amplification and adjustment.

6)Provides electromagnetic-noise-free transmission.

7)Easy to install and simple to operate.



3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Digital to Analog Audio Converter---------------------1 PCS

2) 5V DC Power Supply-------------------------------------1 PCS

3) User’s Manual----------------------------------------------1 PCS



4.0 SPECIFICATIONS

Signal Inputs/Output


Input Audio

Coaxial or Toslink digital audio

Output Audio

R/L +3.5mm audio

Connector


Input audio connector

Toslink1XRCA(Coaxial)

Output audio connector

2XRCAR/L3.5mm stereo jack

Sampling rate

32,44.1, 48,96 and 192KHz

Mechanical


Size(LxWxH)

73x60.5x22.5mm

Weight (Net)

90g

Warranty


Limited Warranty

1 Year Parts and Labor

Environmental


Operating Temperature

0  to +70

Operating Humidity

10% to 85% RH (no condensation)

Storage Temperature

-10 to +80

Storage Humidity

5% to 90% RH (no condensation)

Power Requirement


External Power Supply

DC 5V 1A

Power Consumption

0.5 watts (max)

Regulatory Approvals


Converter Unit

FCC,CE,UL

Power Supply

UL,CE,FCC

Accessories Adapter


AC Power Adapter

US standard, UK standard and so on

User Manual

English Version

Note: Specifications are subject to change without notice.

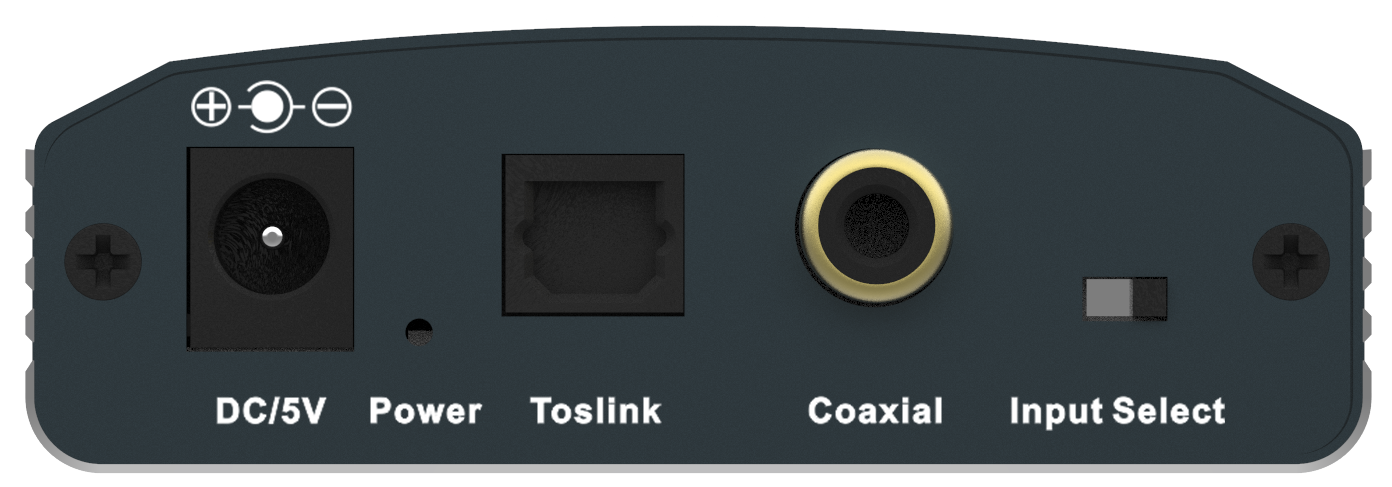

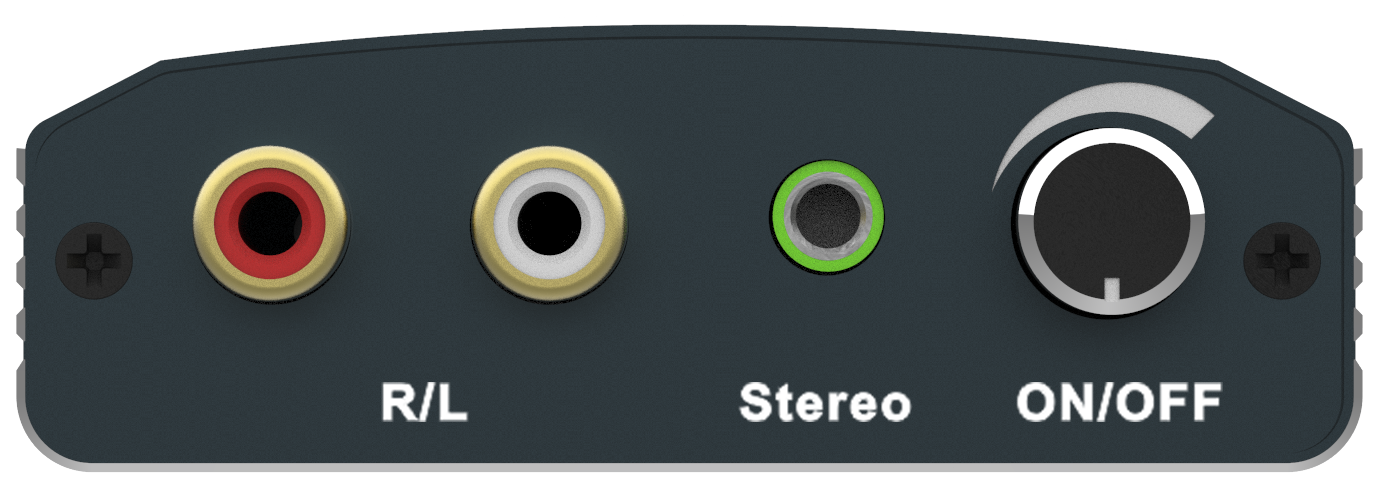

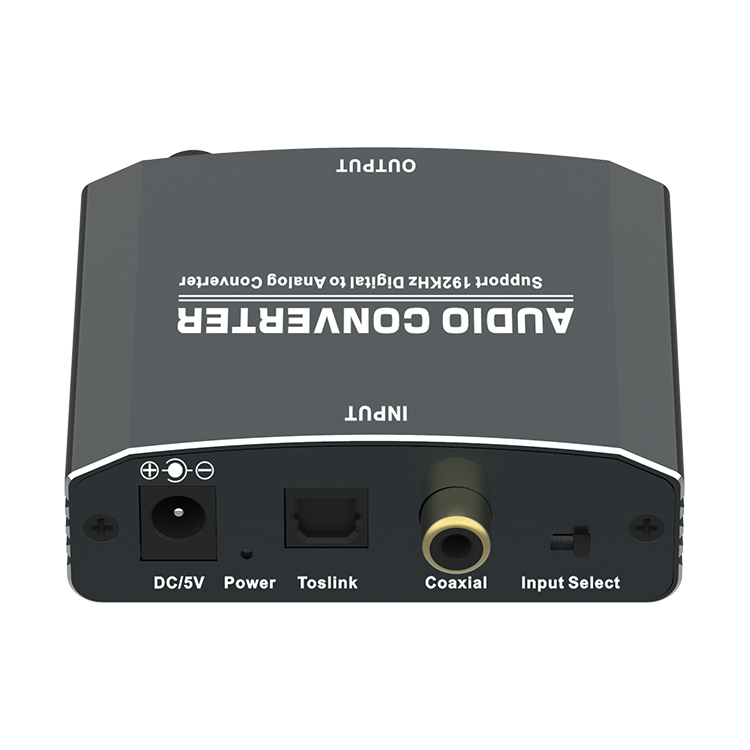

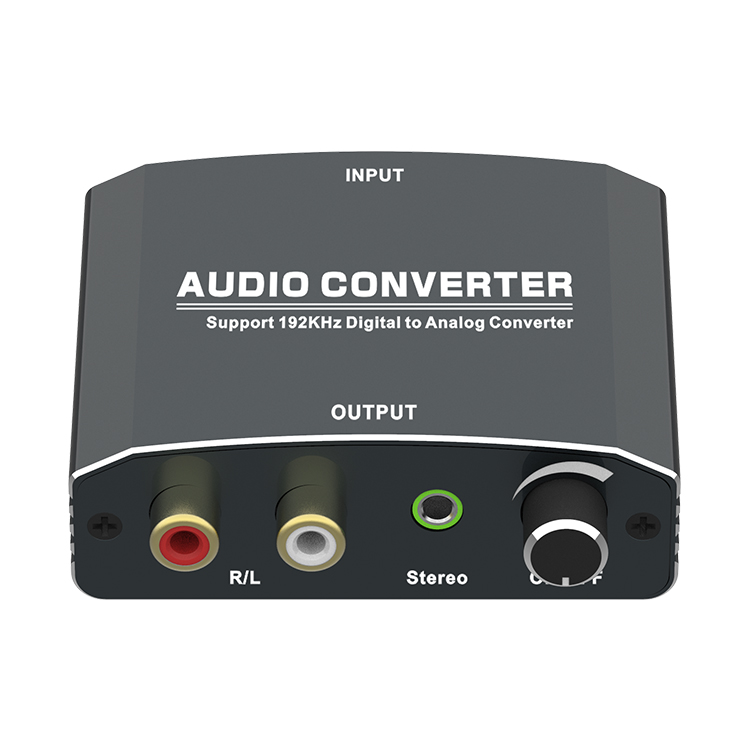

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.


DC/5V---------------------------------------5V Power Input port

LED -------------------------------------Power Status Indicator

Toslink ------------------------Toslink Digital Audio Input port

Coaxial ----------------------Coaxial Digital Audio Input port

Input Select --------------------------------Input Select button

R/L ----------------------------------------R/L Audio Output port

Stereo ---------------------------Earphone Audio Output port

ON/OFF ------------Power switch and Volume adjustment



6.0 CONNECTION AND OPERATION

Before installation, please make sure all devices you wish to connect have been turned off.


1) Connect the audio source device to the Converter using appropriate Toslink

   or Coaxial cables.

2) Connect the A/V Receivers or Amplifiers to the Converter using appropriate

   R/L cable.

3) The earphone is connected to the converter 3.5mm audio interface.

4) Insert the DC side of 5v power supply into the converter and then connect

  the AC side of the power supply into the wall outlet.
