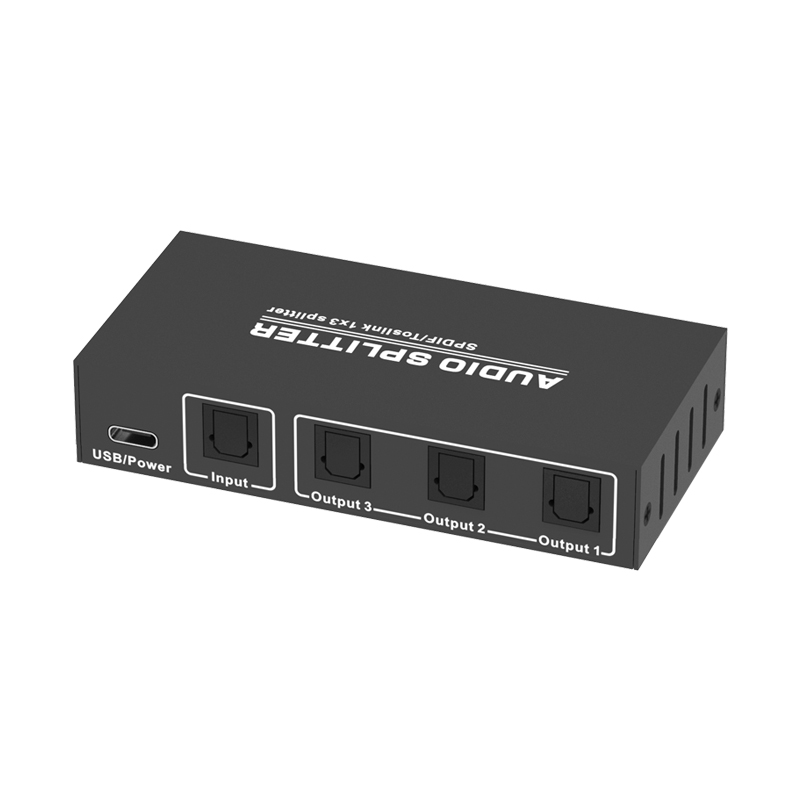

1.0 Introduction:
This SPDIF/Toslink Digital Optical Audio splitter can let the user to connect and distribute one digital optical SPDIF Toslink source to three amplifier.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 Features:
1.One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink
signal receiving device.
2.Audio format support : LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
5.The input control can through R/M and also can directly press the button
Support last time working state memory when power off.
6.Over-voltage protection can prevent the damage caused by connecting
unmatched power adapter to the machine.
7.Installs in minutes,No loss of quality.
3.0 Packaging accessories:
1. Audio Splitter------------------------------------------------1 PCS
2. USB Power Cable------------------------------------------1 PCS
3. User Manual-------------------------------------------------1 PCS
4.0 Technical parameters:
Support audio format--------------------------------------LPCM2.0/DTS/Dolby-AC3
Peak wavelength---------------------------------------------------------------------650nm
Max baud rate------------------------------------------------------------------------16Mbps
Output cable distance ---------≤40m(optical fiber cable loss less the 0.2Db/m)
Max working current-----------------------------------------------------------------100mA
Power adapter format------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V
Operating Temperature range-----------------------------------------------(0 to +40℃)
Operating Humidity range--------------------------5 to 90%RH (No Condensation)
Dimension (L x W x H)------------------------------------------------100x48x21.5 (mm)
Weight----------------------------------------------------------------------------------------50g

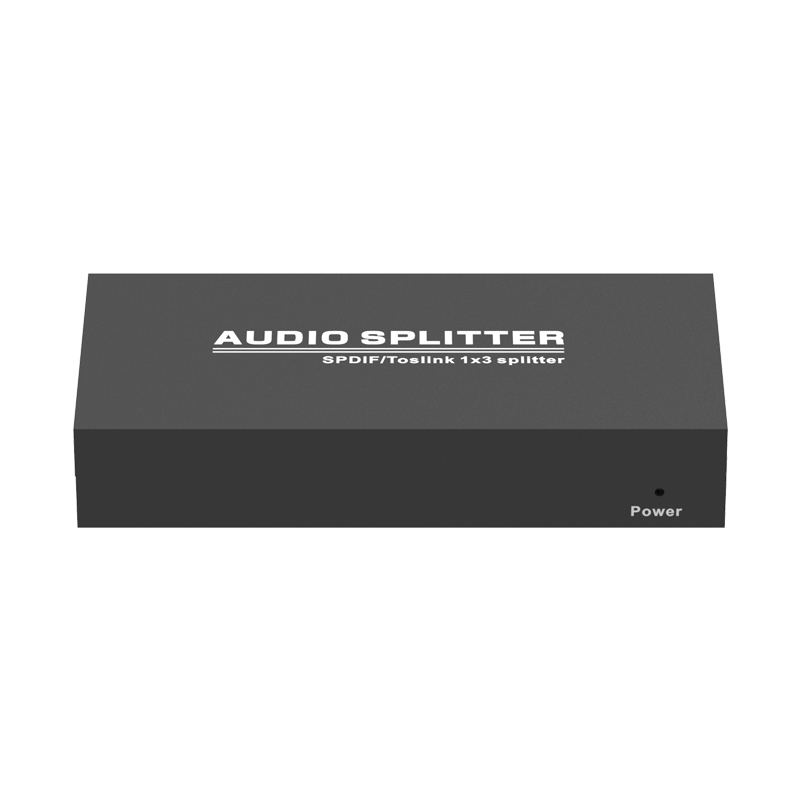

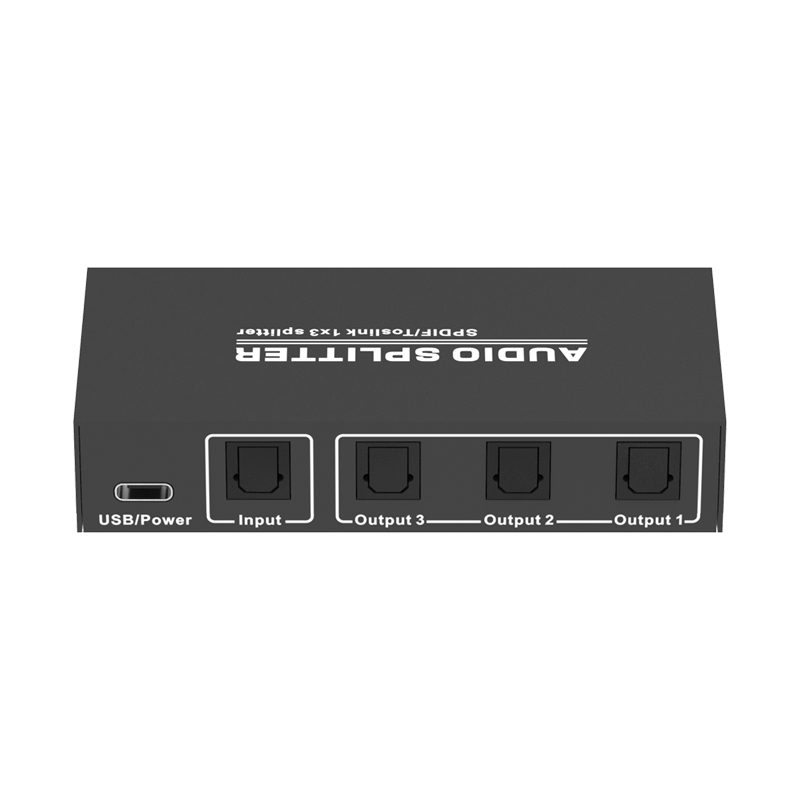

5.0 Panel Introduction:

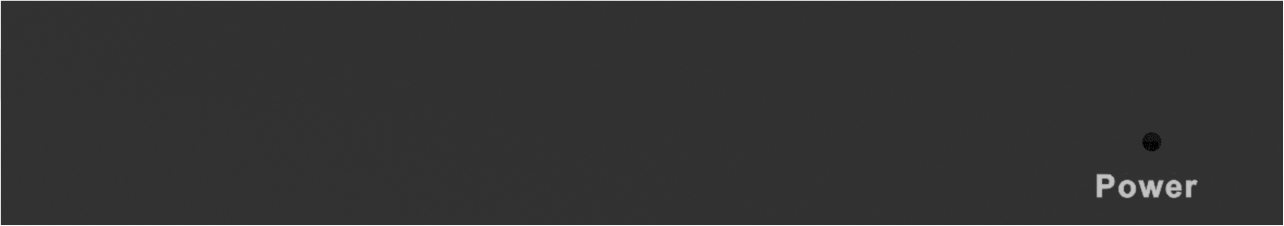

![面板1.jpg](/../../upload/image/20240529/6385257258675318816856761.jpg)

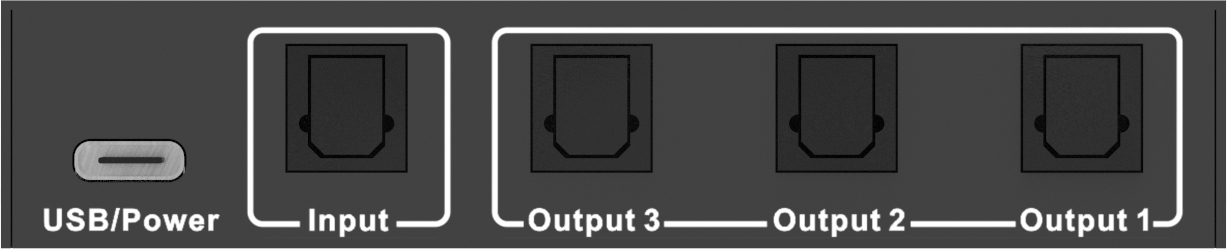

Power -----------------------------------Power status
USB/Power ------------------------Power input port
Input -----------------------SPDIF/Toslink input port
Output3-1 -------------SPDIF/Toslink output ports

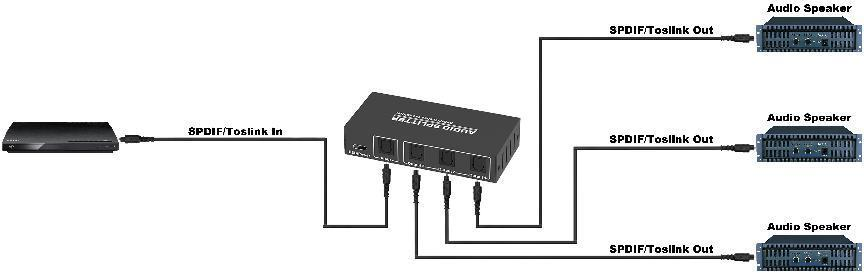

6.0 Connection diagram:
1.To use the optical fiber cable to connect the optical fiber signal source (such
as blue-ray player, the computer and so on) with the splitter input.
2. The splitter output port connected to the optical fiber signal receiver
(such as amplifier, home theater and so on) by using the optical cable.
3. Connect 5V power to the splitters power input port.
