1.0 INTRODUCTION

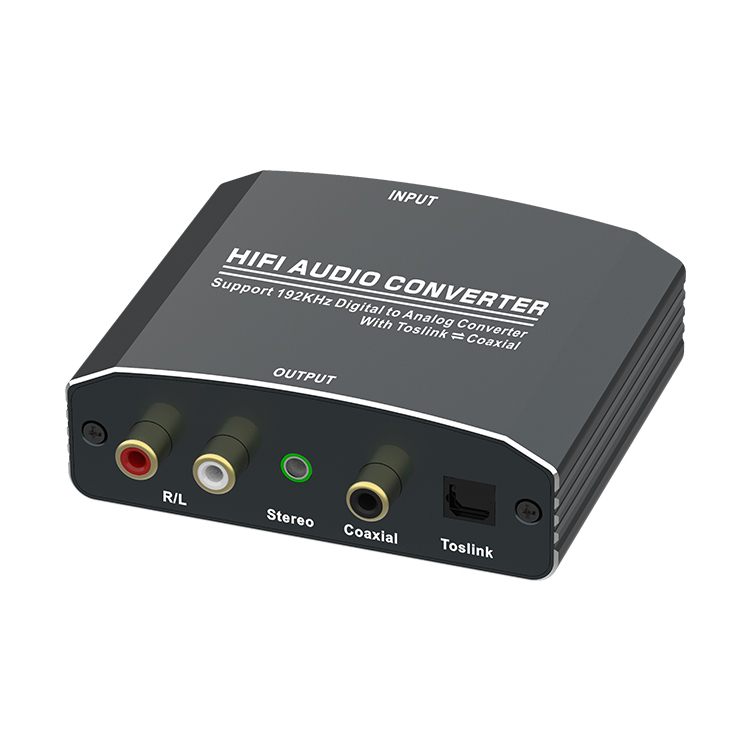

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio or digital audio and available for connection to an external device such as an amplifier via standard RCA-style jacks and 3.5mm stereo jack,SPDIF and Coaxial,This Converter is small in size and quite easy to install.



2.0 FEATURES

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1)Converts Coaxial or Toslink digital audio signals to analog audio.

2)Converts Coaxial to Toslink or Converts Toslink to Coaxial.

3)Supports sampling rate at 32, 44.1, 48 and 192KHz.

4)24-bit SPDIF incoming bit stream on left and right channels.

5)Support Input select.

6)Support volume amplification and adjustment.

7)Provides electromagnetic-noise-free transmission.

8)Easy to install and simple to operate.



3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Audio Converter-------------------------------------------1 PCS

2) 5V DC Power Supply-------------------------------------1 PCS

3) User’s Manual----------------------------------------------1 PCS



4.0 SPECIFICATIONS

Signal Inputs/Output


Input Audio

Coaxial or Toslink digital audio

Output Audio

Coaxial/Toslink/R/L +3.5mm audio

Connector


Input audio connector

Toslink1XRCA(Coaxial)

Output audio connector

2XRCAR/L1X3.5mm stereo jack

1XToslink1XRCA(Coaxial)

Sampling rate

32,44.1, 48,96 and 192KHz

Mechanical


Size(LxWxH)

90.4x60.8x22.8mm

Weight (Net)

110g

Warranty


Limited Warranty

1 Year Parts and Labor

Environmental


Operating Temperature

0  to +70

Operating Humidity

10% to 85% RH (no condensation)

Storage Temperature

-10 to +80

Storage Humidity

5% to 90% RH (no condensation)

Power Requirement


External Power Supply

DC 5V 1A

Power Consumption

0.5 watts (max)

Regulatory Approvals


Converter Unit

FCC,CE,UL

Power Supply

UL,CE,FCC

Accessories Adapter


AC Power Adapter

US standard, UK standard and so on

User Manual

English Version

Note: Specifications are subject to change without notice.



5.0 PANEL DESCRIPTIONS

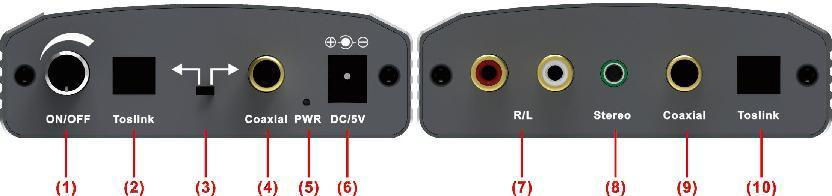

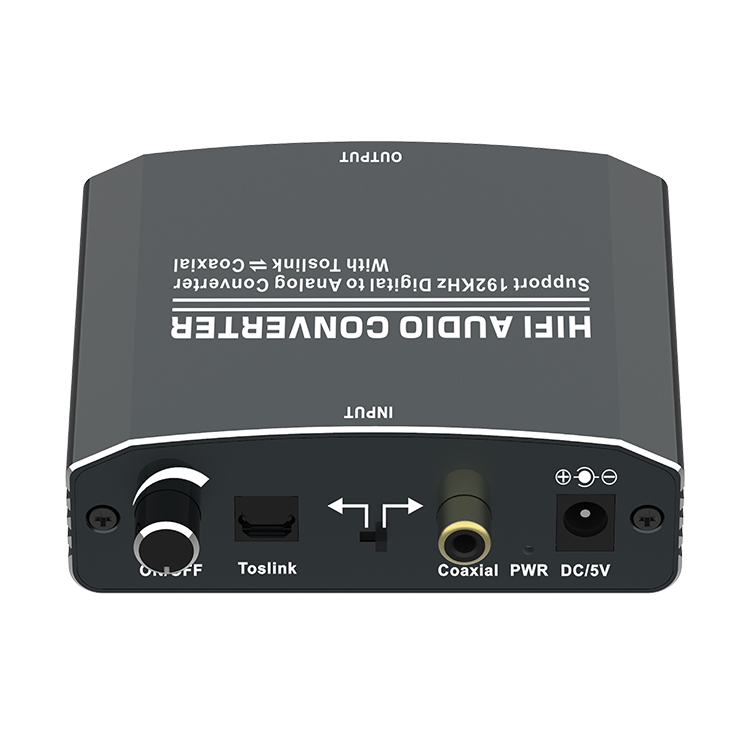

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.


(1)ON/OFF ------------Power switch and Volume adjustment

(2)Toslink ------------------------Toslink Digital Audio Input port

(3)Switch ----------------------------------------Input Select button

(4)Coaxial ----------------------Coaxial Digital Audio Input port

(5)PWR ------------------------------------Power Status Indicator

(6)DC/5V---------------------------------------5V Power Input port

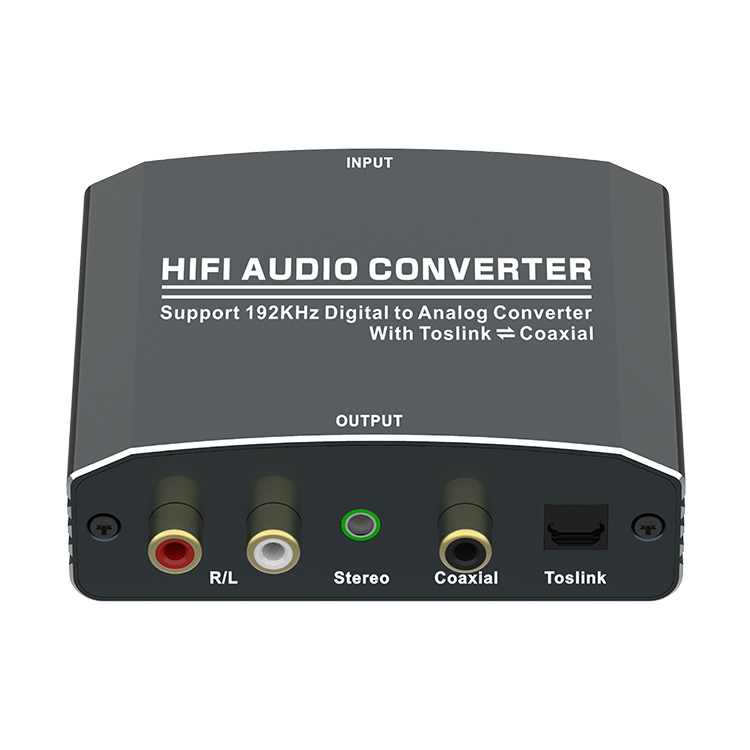

(7)R/L ----------------------------------------R/L Audio Output port

(8)Stereo ---------------------------Earphone Audio Output port

(9)Coaxial --------------------Coaxial Digital Audio Output port

(10)Toslink --------------------Toslink Digital Audio Output port



6.0 CONNECTION AND OPERATION

Before installation, please make sure all devices you wish to connect have been turned off.

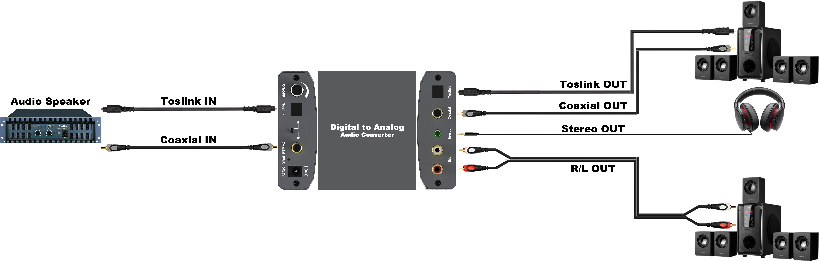

1) Connect the audio source device to the Converter using appropriate Toslink

   or Coaxial cables.

2) Connect the A/V Receivers or Amplifiers to the Converter using appropriate

   R/L cable.

3)The earphone is connected to the converter 3.5mm audio interface.

4) Connect the digital audio Receivers or Amplifiers to the Converter using appropriate Toslink or coaxial cable.

5) Insert the DC side of 5v power supply into the converter and then connect

  the AC side of the power supply into the wall outlet.
