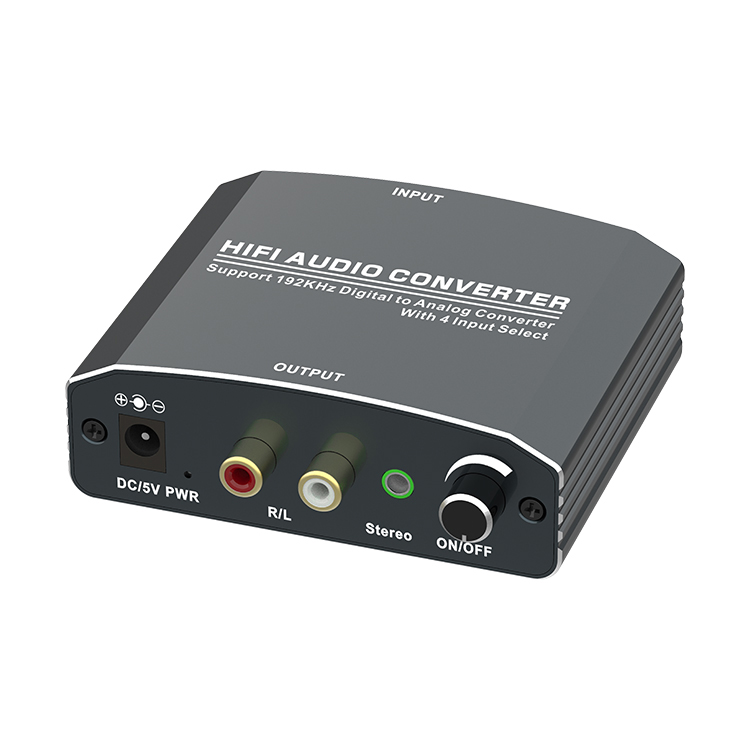

1.0 INTRODUCTION
This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks and 3.5mm stereo jack,This Converter is small in size and quite easy to install.
2.0 FEATURES
This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
1) Converts Coaxial or Toslink digital audio signals to analog audio.
2) Support 4 digital audio input select.
3) Supports sampling rate at 32, 44.1, 48 and 192KHz.
4) 24-bit SPDIF incoming bit stream on left and right channels.
5) Support volume amplification and adjustment.
6) Provides electromagnetic-noise-free transmission.
7) Easy to install and simple to operate.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1) Digital to Analog Audio Converter---------------------1 PCS
2) 5V DC Power Supply-------------------------------------1 PCS
3) User’s Manual----------------------------------------------1 PCS
4.0 SPECIFICATIONS
Signal Inputs/Output |
|
Input Audio | Coaxial or Toslink digital audio |
Output Audio | R/L +3.5mm audio |
Connector |
|
Input audio connector | 2XToslink、2XRCA(Coaxial) |
Output audio connector | 2XRCA（R/L）3.5mm stereo jack |
Sampling rate | 32,44.1, 48,96 and 192KHz |
Mechanical |
|
Size(LxWxH) | 90.4x60.8x22.8mm |
Weight (Net) | 110g |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 ℃ to +70℃ |
Operating Humidity | 10% to 85% RH (no condensation) |
Storage Temperature | -10℃ to +80℃ |
Storage Humidity | 5% to 90% RH (no condensation) |
Power Requirement |
|
External Power Supply | DC 5V 1A |
Power Consumption | 0.5 watts (max) |
Regulatory Approvals |
|
Converter Unit | FCC,CE,UL |
Power Supply | UL,CE,FCC |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
Note: Specifications are subject to change without notice.

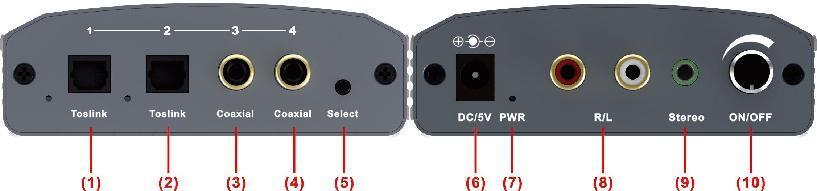

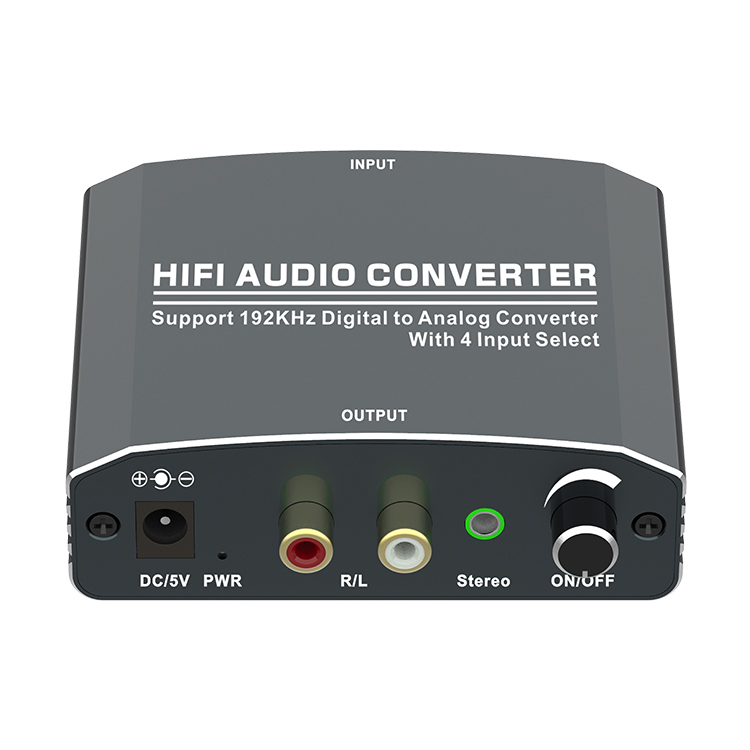

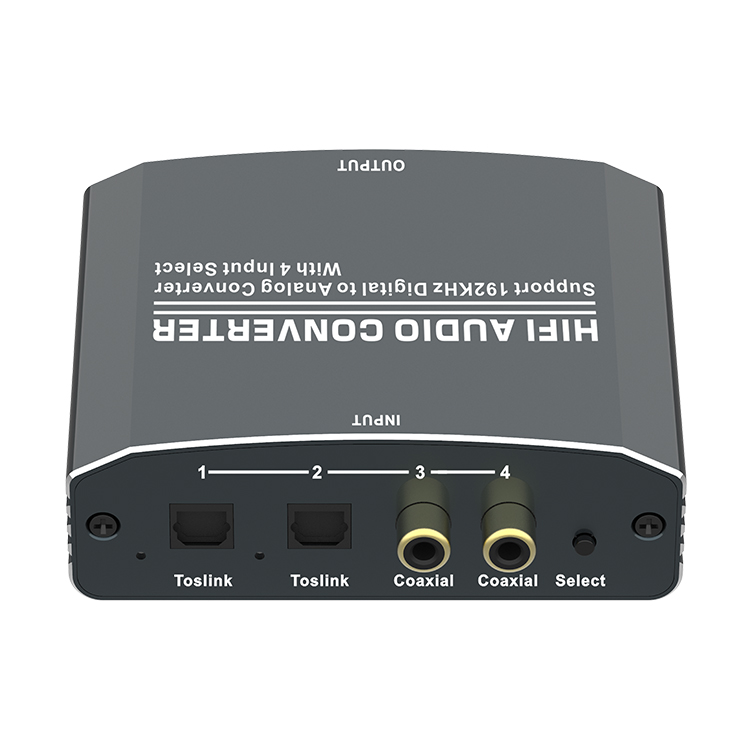

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
(1)Toslink ------------------------Toslink Digital Audio Input port 1
(2)Toslink ------------------------Toslink Digital Audio Input port 2
(3)Coaxial ----------------------Coaxial Digital Audio Input port 1
(4)Coaxial ----------------------Coaxial Digital Audio Input port 2
(5)Select ------------------------------------------Input Select button
(6)DC/5V-----------------------------------------5V Power Input port
(7)PWR ---------------------------------------Power Status Indicator
(8)R/L ------------------------------------------R/L Audio Output port
(9)Stereo ------------------------------Earphone Audio Output port
ON/OFF ------------------Power switch and Volume adjustment

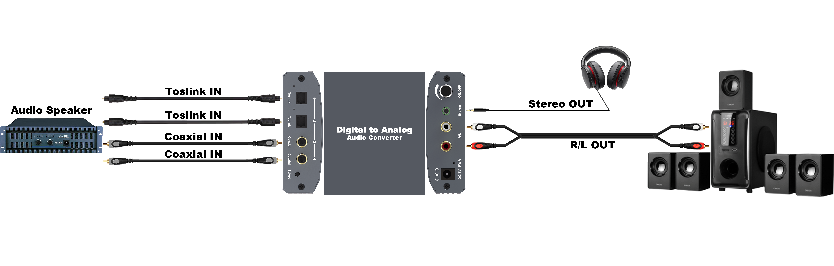

6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off.
1) Connect the audio source device to the Converter using appropriate Toslink
or Coaxial cables.
2) Connect the A/V Receivers or Amplifiers to the Converter using appropriate
R/L cable.
3) The earphone is connected to the converter 3.5mm audio interface.
4) Insert the DC side of 5v power supply into the converter and then connect
the AC side of the power supply into the wall outlet.
