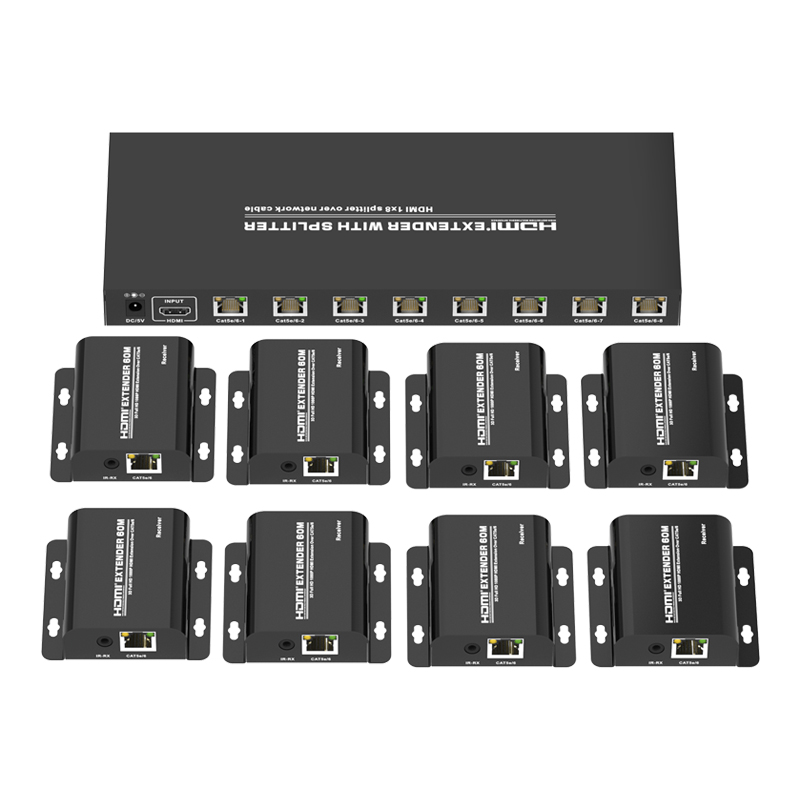

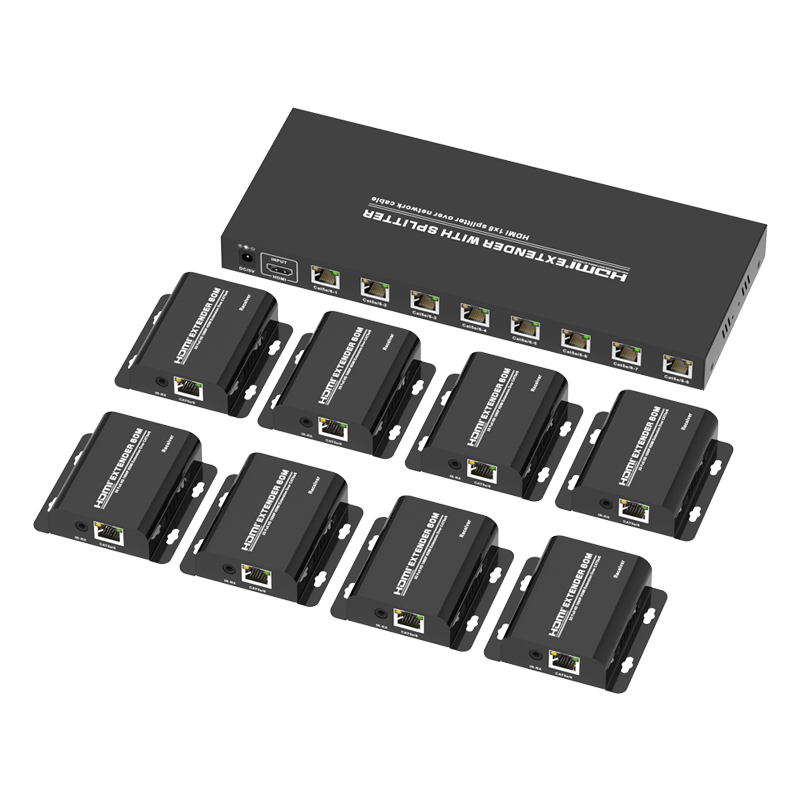

1.0 Introduction:
HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
2.0 Features:
1.One HDMI input signal split to Multiple HDMI sink devices(outputs is the RJ45).
2.Fully HDMI 1.3 specification compliant. It is applicable to source device and high definition display device ,such as DVD and HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.
3.Support high resolutions up to 480i/p,576i/p,720i/p,1080i/p.
4.Support 30/36 dark, extended color space support, including:SYCC601,Adobe RGB,Adobe YCC601.
5.Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
6.Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
7.Extend the transmission distance and improve transmission signal.
8.Support EDID Seting.
9.Support 20~60KHz IR working.
10.Support output up to 60metres CAT6 cable.
11.Metal casing design and overall shielding without signal interference.
12.Power supply (please refer to technical parameter).
3.0 Packaging accessories:
1. HDMI Splitter------------------------------------------------------1 PCS
2. HDMI Receiver------------------------------------------------(Choice)
3. DC Power Adaptor--------------------------------------------(Choice)
4. IR-TX Cable-------------------------------------------------------1 PCS
5. IR-RX Cable-----------------------------------------------------(Choice)
6. User Manual--------------------------------------------------------1 PCS
4.0 Technical parameters
HDMI resolution-----------------------------------------3D /1080p/1080i/720p/576p/576i/480p/480i
Support video color format-------------------------------------------------24bit/deep color 30bit,36bit
Support audio format -------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth-----------------------------------------------------------------------------------------250MHz
Max baud rate----------------------------------------------------------------------------------------6.25Gbps
Input/Output TMDS signal--------------------------------------------------------0.5~1.5Volts p-p(TTL)
Input/Output DDC signal------------------------------------------------------------------5Volts p-p (TTL)
Input cable distance----------------------------------------------≤10m AWG26 HDMI standard cable
Output cable distance--------------------------------------------------------------- ≤60m Cat5e/6 cable
Max working current-----------------------------------------------------------------------------------800mA
Power adapter format Input ------------------AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A
Operating Temperature range--------------------------------------------------------------(-15 to +55℃)
Operating Humidity range-------------------------------------------5 to 90%RH (No Condensation)
Dimension (L x W x H)-------------------------------------------------------Splitter:149x64x21.5 (mm)
Receiver:75x80x22(mm)
Weight------------------------------------------------------------------------------0.8kg(spilitter+Receiver)

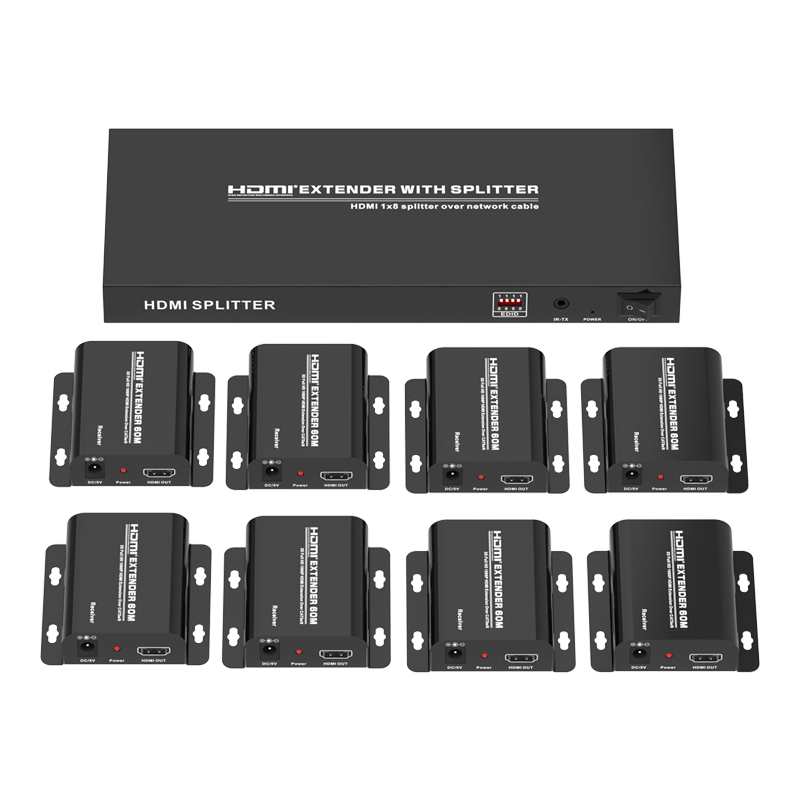

5.0 Panel Introduction
EDID ---------------------------------------------------EDID seting switch
IR-TX ----------------------------------------------------IR transmitter port
Power --------------------------------------------Power status indication
ON/OFF--------------------------------------------------------Power button
DC/5V ----------------------------------------------------DC 5V Input Port
HDMI INPUT----------------------------------------------HDMI Input Port
Cat5e/6-1-4 -----------------------------Cat5e/1-4: RJ45 Output Ports

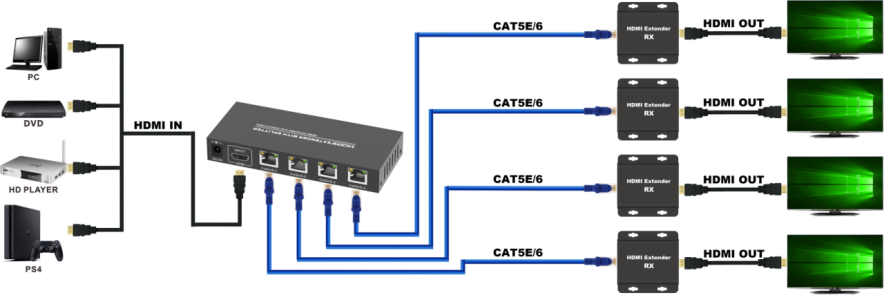

6.0 Connection diagram
Using splitter and receiver pairing, you can achieve the transmission of HDMI signals to 60 meters, through the Cat5e/6 Cable.
6.01 Connect the HDMI cable between signal source and input port of splitter.
6.02 Connect the Network cable between output port of splitter and receiver.
6.03 Connect the HDMI cable between output port of receiver and HDTV.
6.04 Connect splitter and Receiver power adapter.
6.05 Open the signal source and the power of HDTV, then it works.
