1.0 DESCRIPTION

HDMI Switch is a product that can switch multi-group HDMI signals to one high definition display device such as HDTV by using manual push button. Doing so can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.



2.0 FEATURES

1. To support the simultaneous transmission of three video streams, multiple

   video signals can be transmitted to the same screen;

2. Switching is done via itself automatically when signal present on the ports;

3. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

4. Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR

   4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

5. Support 3D frame sequential video format up to 1080p@60;

6. Support high resolution VESA mode video format up to QSXGA@60Hz;

7. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio;

8. Supports IR and Panel button control;

9. Compatible with DVI by using HDMI TO DVI adapter;

10.Extend the transmission distance and improve transmission signal;

11.Metal casing design and overall shielding without signal interference;

12.Power supply(Please refer to technical parameter).



3.0 PACKAGING ACCESSORIES

When first unpacking your extender please check to see if the following items are included:

HDMI 3x1 switcher-------------------------------------------1PCS

USB Power cable---------------------------------------------1PCS

Remote control------------------------------------------------1PCS

User Manual----------------------------------------------------1PCS



4.0 TECHNICAL PARAMETER IN DETAIL

Product

3X1 HDMI SWITCH

HDMI Source Input Port

3

Display Device Output Port

1

Source Port Connector

19 PIN HDMI(A TYPE)

Display Device Port Connector

19 PIN HDMI(A TYPE)

HDCP Compliant

YES

Source Device Selection

Push Button IR Remote Control

Input Video Signal

0.5-1.0 Volts P-P

Input DDC signal

5 Volts P-P(TTL)

Deep Color

48 bit

Single Link Range

3840x2160

HDMI Version

HDMI2.0

Bandwidth

Up to 600Mhz

Signal Speed

Up to 18Gbps

The length of input cable

10M

The length of output cable

10M

The cable standard

28AWG HDMI2.0

Vertical Frequency Range

60Hz

Power Consumption(max)

2.5 Watts

Operation Temperature

0℃ TO 70℃

Working Voltage

DC 5V

Power Adaptor

USB Cable

Net Weight(g)

110

Dimension: L×W×H(mm)

102×60.5×16



5.0 PANEL INTRODUCTION

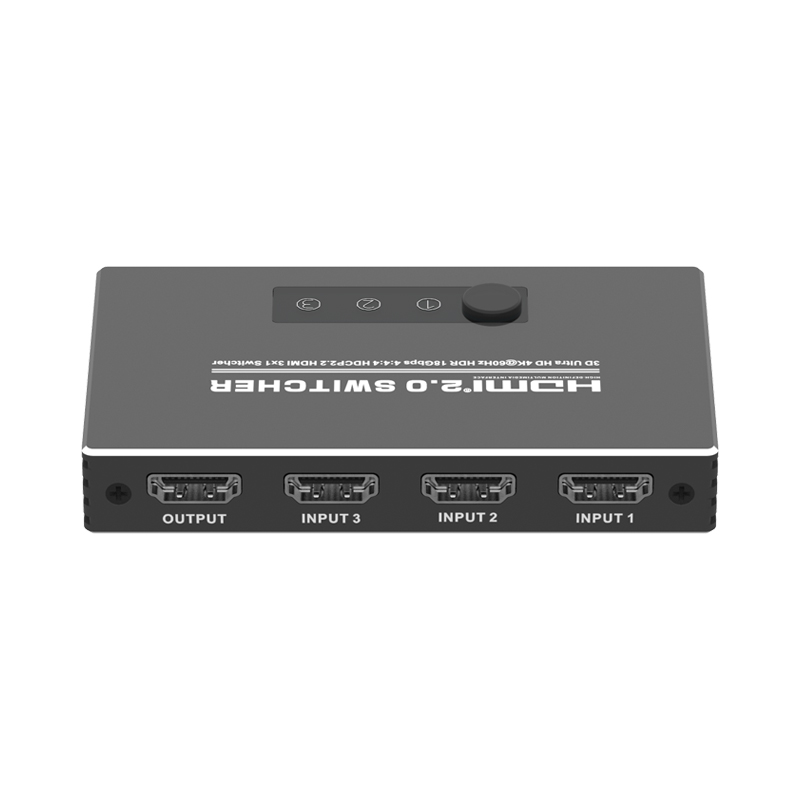

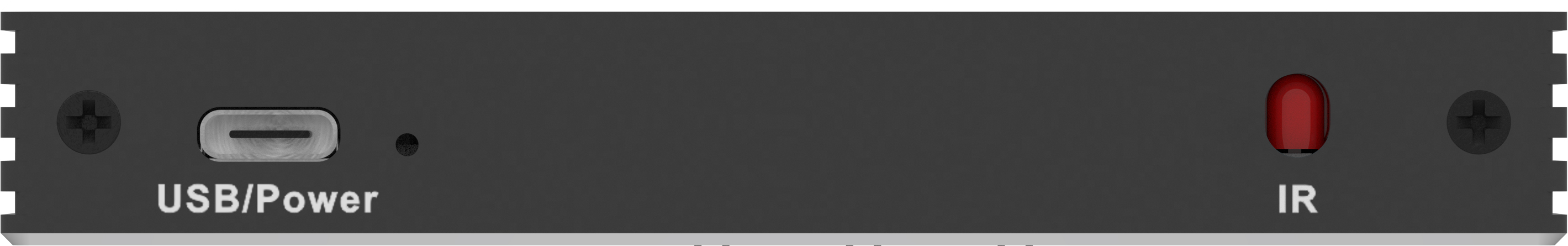

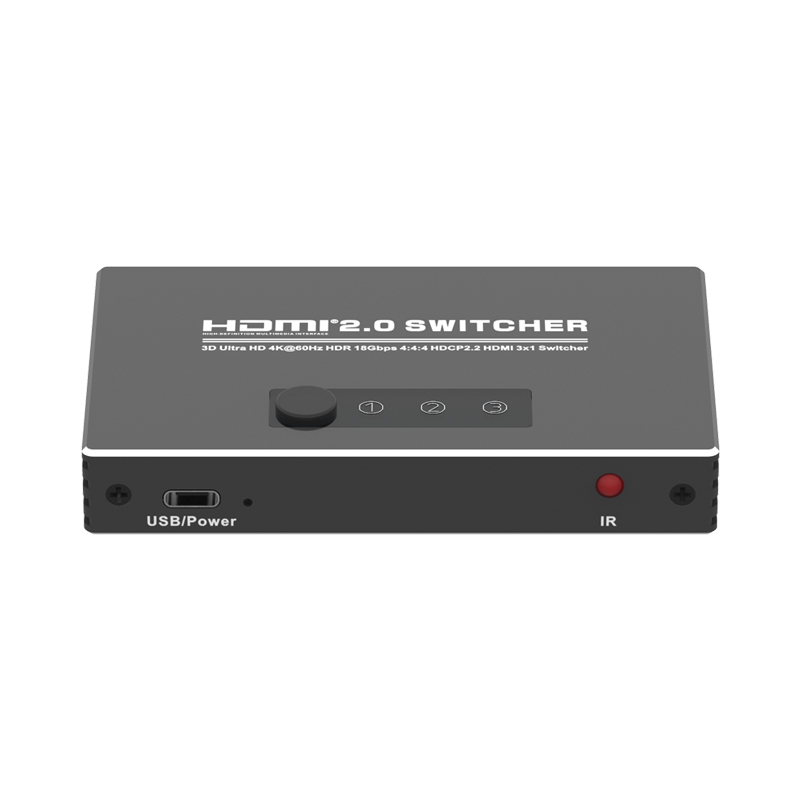

USB/Power -------------------------------DC Power Input Port

IR -------------------------------------------------IR Receiver Port


HDMI OUTPUT ------------------------------HDMI Output Port

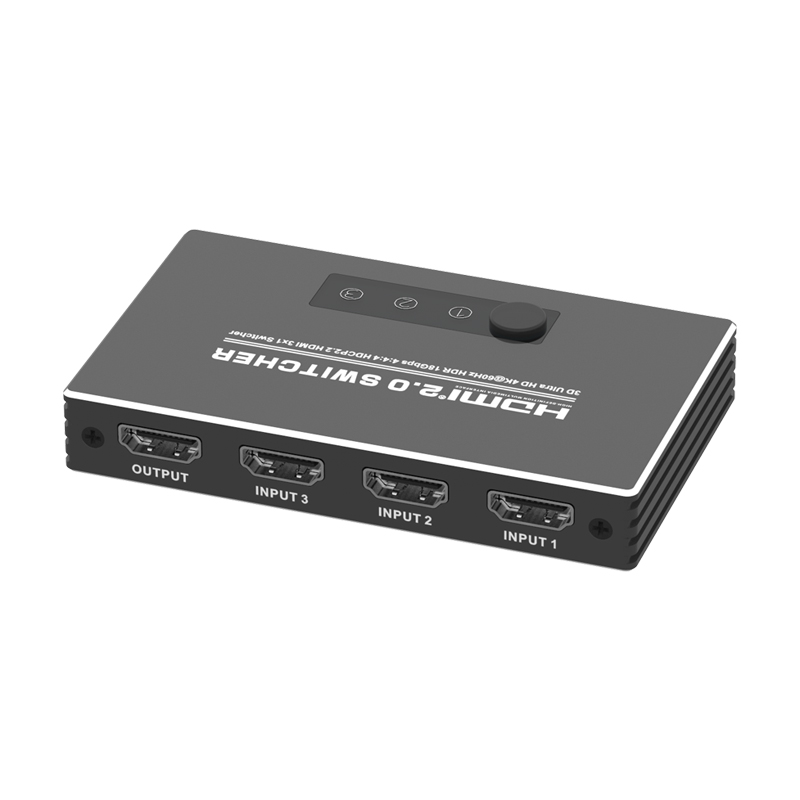

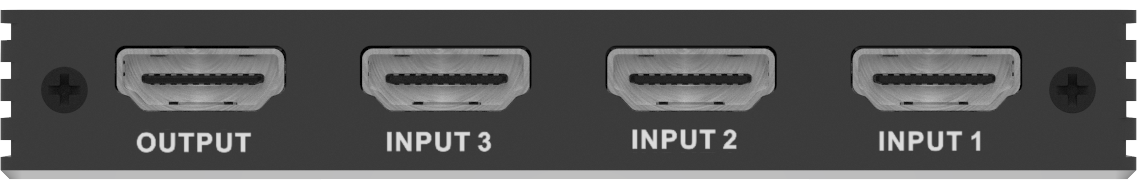

HDMI INPUT1-3 ------------------------------HDMI Input Ports



6.0 APPLICATION

It switches several routes HDMI signals from source device such as DVD, Satellite Receiver, Set-top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat Panel Display.

6.1 Connect high definition display device such as HDTV TO HDMI Switch's

    output port.

6.2 Connect source device such as DVD and ps4 TO HDMI Switch's input

    ports.

6.3 After all the connections have been successfully done and then power on,

    you can select the information you want to view or listen
