1.0 Introduction

The 4K 120M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,you can extend the 4K signal to 120 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.



2.0 Features

1.Signal transmission :cat5e or cat-6(recommended) cables up to 120

  meters instead of HDMI cables are connected between TX and RX

  Extender;

2. Support HDMI1.4v;

3. Support input/Output Resolution :

4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;

4. Support Multi-receiver cascade transmission;

5. Support 20~60KHz IR dual re-transmitting;

6. Support CEC;

7. Audio format support :

   DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

8.No loss of quality;

9.Installs in minutes;

10.Need DC5V/1A power supply.



3.0 Packaging Accessories

When first unpacking your extender please check to see if the following items are included:

1.HDMI Transmitter ------------------1PCS

2.HDMI Receiver ---------------------1PCS

3.IR Receiver --------------------------2PCS

4.IR Transmitter -----------------------2PCS

5.Power supply-------------------------2PCS

6.User manual--------------------------1PCS



4.0 Specification

Length of CAT-6 cable between Transmitter and Receiver----------------------------------------Up to120 meters

HDMI Input/Output---------------------------------------------------4Kx2K/1080p/1080i/720p/576p/576i/480p/480i

Support audio format ------------------------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth-----------------------------------------------------------------------------------------------------------340MHz

Max baud rate---------------------------------------------------------------------------------------------------------10.2Gbps

Input Video signal -------------------------------------------------------------------------------------------0.5~1.5Volts p-p

Output DDC signal-----------------------------------------------------------------------------------------5Volts p-p (TT1L)

Input/Output HDMI cable distance-------------------------------------------15m AWG26 HDMI standard cable

Max working current----------------------------------------------------------------------------------------------------800mA

Power adapter format ------------------------------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range------------------------------------------------------------------------------ (-15 to +55)

Operating Humidity range------------------------------------------------------------5 to 90%RH (No Condensation)

Dimension(L x W x H)---------------------------------------------------------------------------------------100x73x25mm



5.0 Panel Descriptions

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

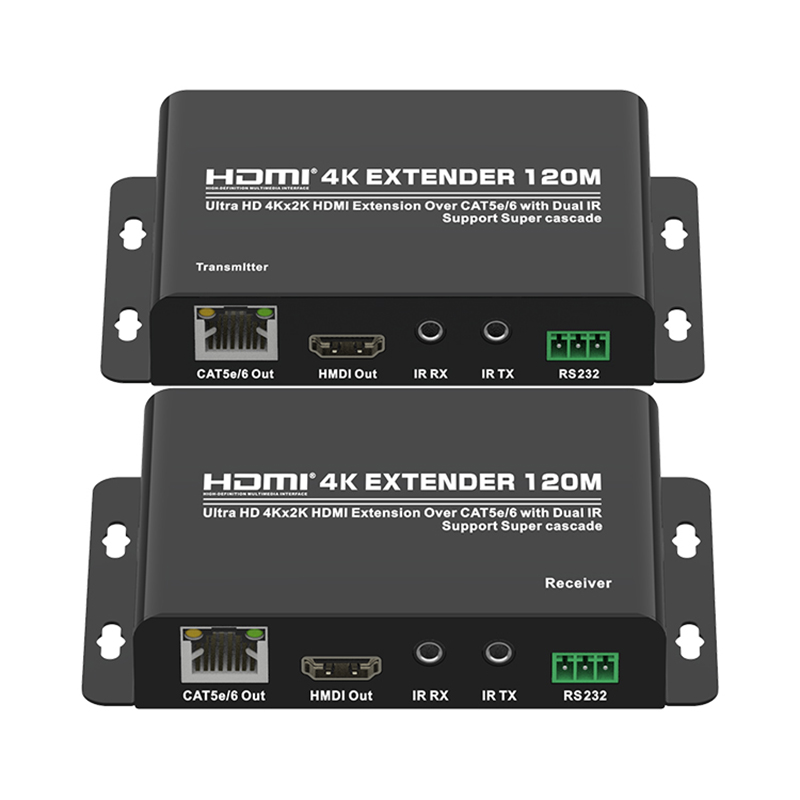

HDMI EXTENDER TX PANEL


DC 5V------------------------------------DC Power Input Port

HDMI -------------------------------------HDMI Input indicator

HDMI Input -----------------------------------HDMI Input port

Cat5e/6 -------------------------------LAN cable Output port

HDMI Output ------------------------------HDMI Output port

IR-RX ------------------------------------------IR receiver port

IR-TX --------------------------------------IR Transmitter port

RS232 ----------------------------------------------RS232 port

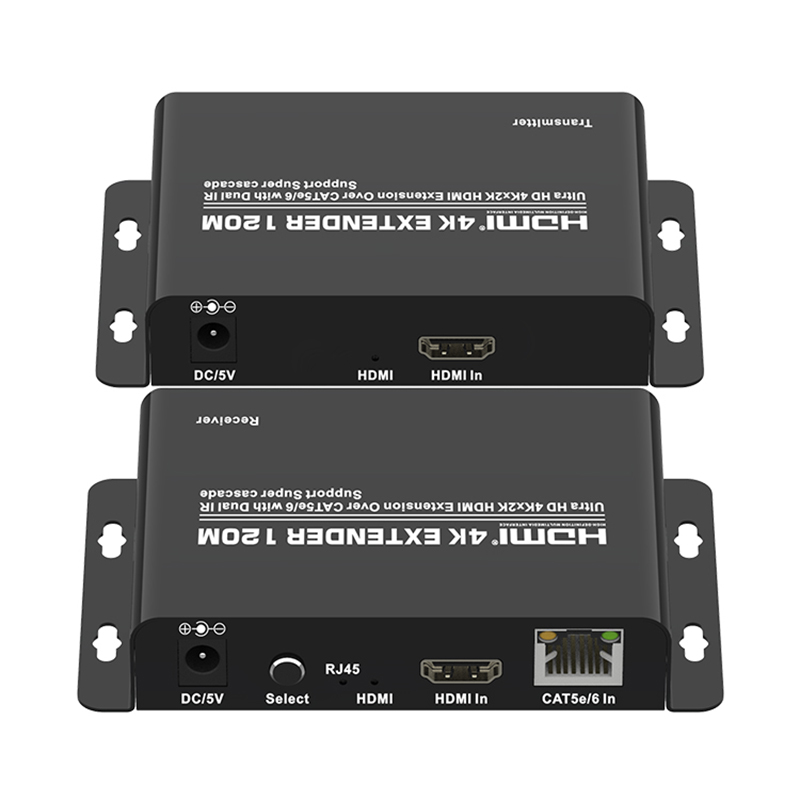

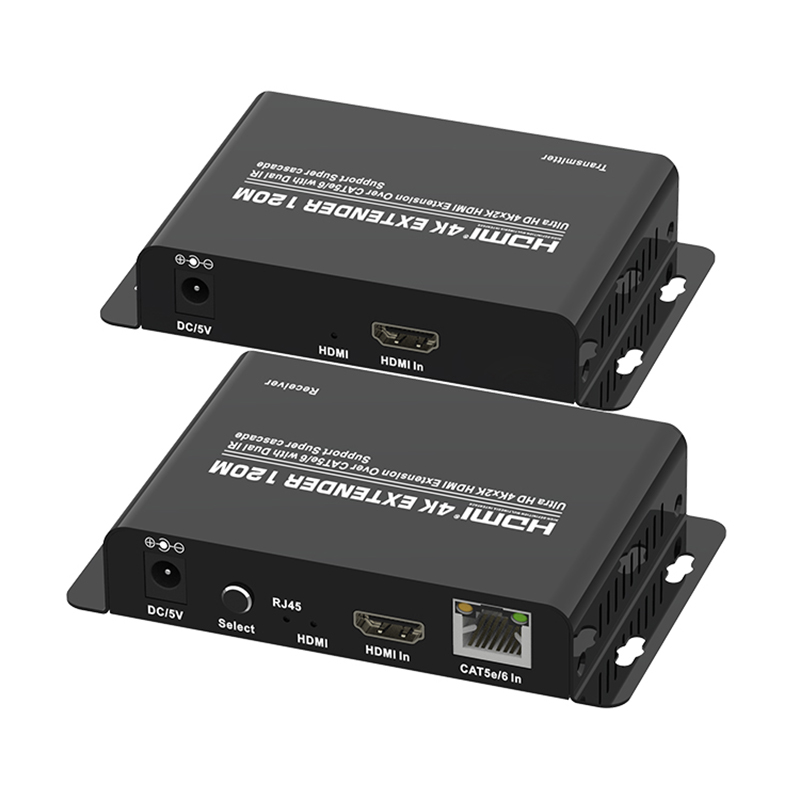

HDMI EXTENDER RX PANEL


DC 5V------------------------------------DC Power Input Port

Select -----------------------------switch input signal Button

RJ45 --------------------------------------RJ45 Input indicator

HDMI ------------------------------------HDMI Input indicator

HDMI Input ----------------------------------HDMI Input port

Cat5e/6 In ---------------------------------Cat5e/6 Input port

Cat5e/6 -------------------------------LAN cable Output port

HDMI Out ----------------------------------HDMI Output port

IR-RX ------------------------------------------IR receiver port

IR-TX --------------------------------------IR Transmitter port

RS232 ----------------------------------------------RS232 port



6.0 Connect and Operate

Application

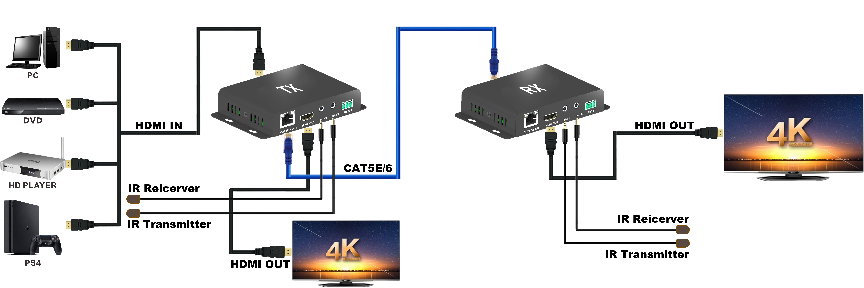

(Point to point application)




Application

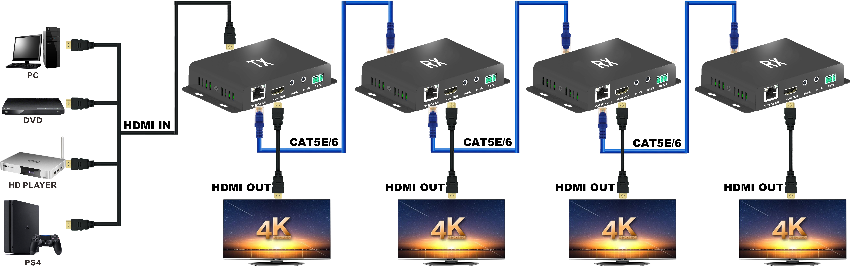

(Multi-receiver cascade transmission)




6.01 Connect source device with transmitter by one HDMI cable(Max=10M).

6.02 Connect display device with receiver by one HDMI cable(Max=10M).

6.03 Connect TX with RX by one cat5e/6(Max=120M).

6.04 One pair of IR-RX and IR-TX cable,connected to the 3.5mm IR-RX and

IR-TX ports of the transmitter and receiver respectively.

6.05 Connect the power supply to the TX and RX.

6.06 LED indicator:When a signal is input to work,steady blue light.

6.07 Select the input source via the select button on the RX.



7.0 Installation and precautions

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. The equipment should not be placed under the sun , rain and damp or  unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
