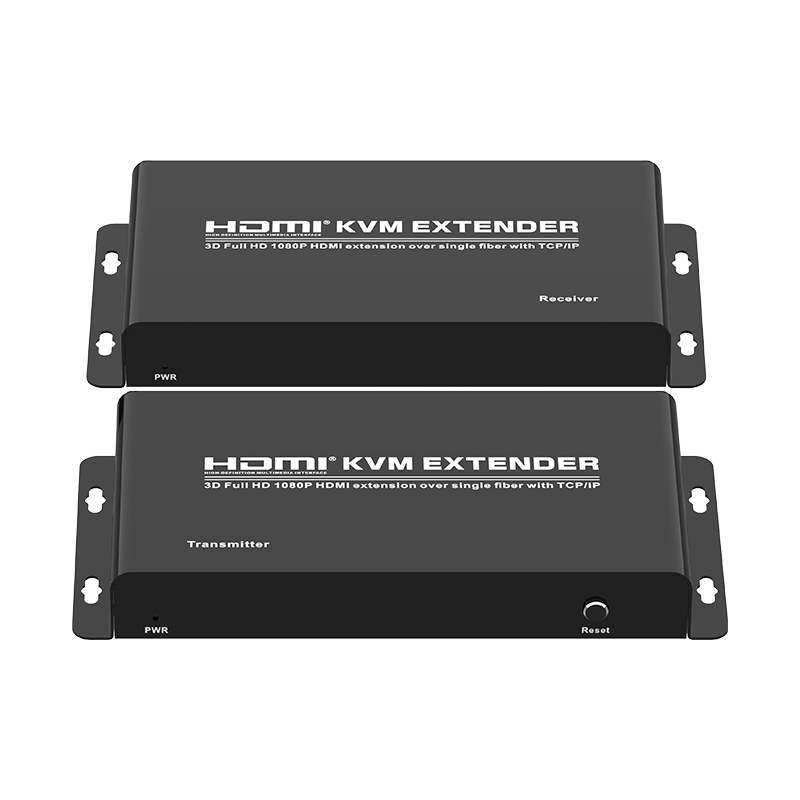

1.0 INTRODUCTION

This HDMI KVM Extender is based on TCP/IP standard. It transmits max 20KM from your HDMI or DVI-D source to HD display by single Fiber cable.

At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode.

2.0 FEATURES

1.Signal transmission :SC fiber(recommended) cables up to 20000

meters instead of HDMI cables are connected between TX and RX

Extender.

2.Support HDMI1.3,HDCP 1.2 protocol compliant.

3.Support input/output resolution:480p,576p,720p,1080p.

4.Support point-to-point mode, one point-to-many mode.

5.Protocol compliant TCP/IP one transmitter and multiple receivers,with a maximum of 253 receivers.

6.Support IR control, you can control STB or Blue-Ray DVD at receiving site by remote control.

7.Support IR remote control 20~60KHz,NEC.

8.Support long distance controlled by keyboard and mouse.

9.Installs in minutes,No loss of quality.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

HDMI Extender Transmitter ----------------------------------- 1PCS

HDMI Extender Receiver -------------------------------------- 1PCS

IR Transmitter ---------------------------------------------------- 1PCS

IR Receiver ------------------------------------------------------- 1PCS

5V DC Power Supply adapter ------------------------------- 2PCS

USB Data Cable--------------------------------------------------1PCS

Operation Manual ----------------------------------------------- 1PCS

4.0 SPECIFICATIONS

HDMI Version-----------------------------------------------------------------HDMI1.3a

Transmitter Input Ports ---------------------------------HDMIx1(AF),USB(BF)x1

Transmitter Output Ports -------------------HDMIx1(AF),SC Fiberx1,IR TXx1

Receiver Input Ports------------------------------------------SC Fiberx1,IR RXx1

Receiver Output Ports----------------------------------HDMIx1(AF),USB(AF)x2

Frequency Bandwidth--------------------------------------2.25Gbps (single link)

Input/Output Resolutions---------------------------------480p,576p,720p,1080p

Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz

IR remote control-----------------------------------------------------20~60KHz;NEC

ESD Protection Human Body Model ---------------± 8kV (air-gap discharge)

                                          ± 4kV (contact discharge)

Operating Temperature--------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity---------------------------------20~90% RH (non-condensing)

Dimensions (mm)--------------------------------------------------------170x81.5x22

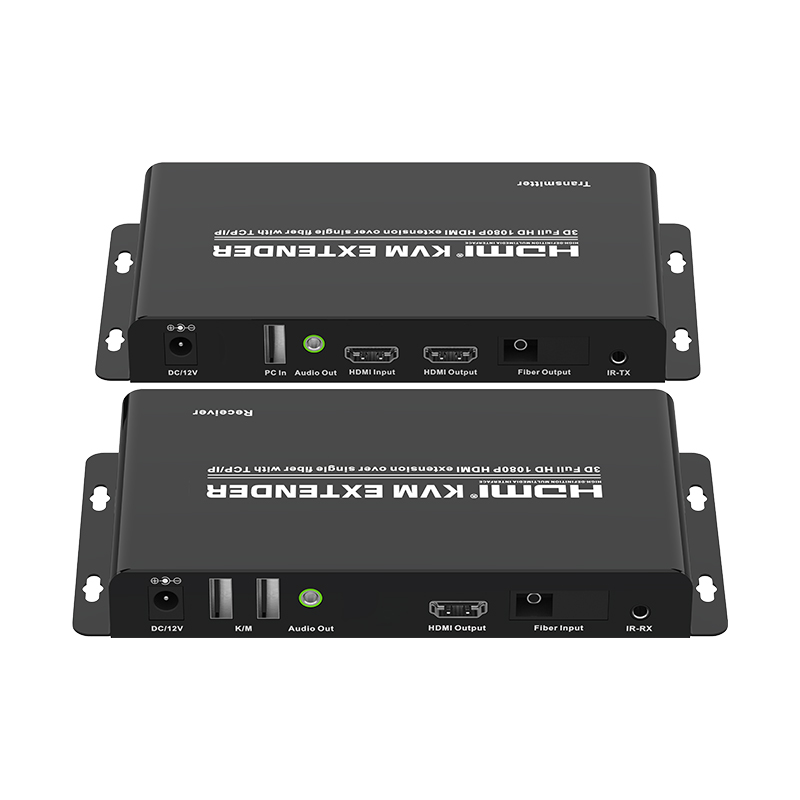

5.0 PANEL DESCRIPTIONS

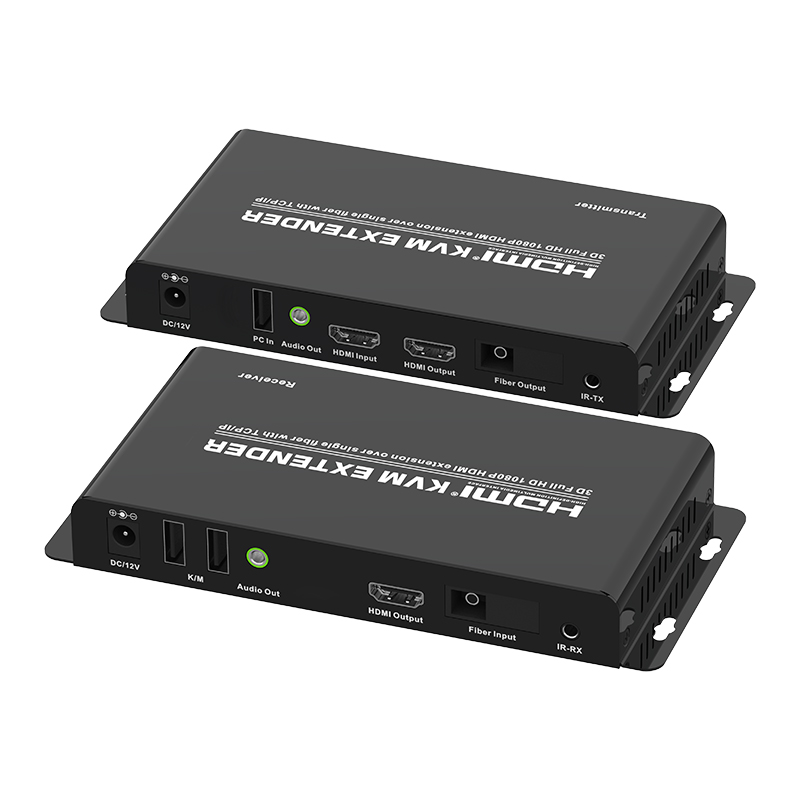

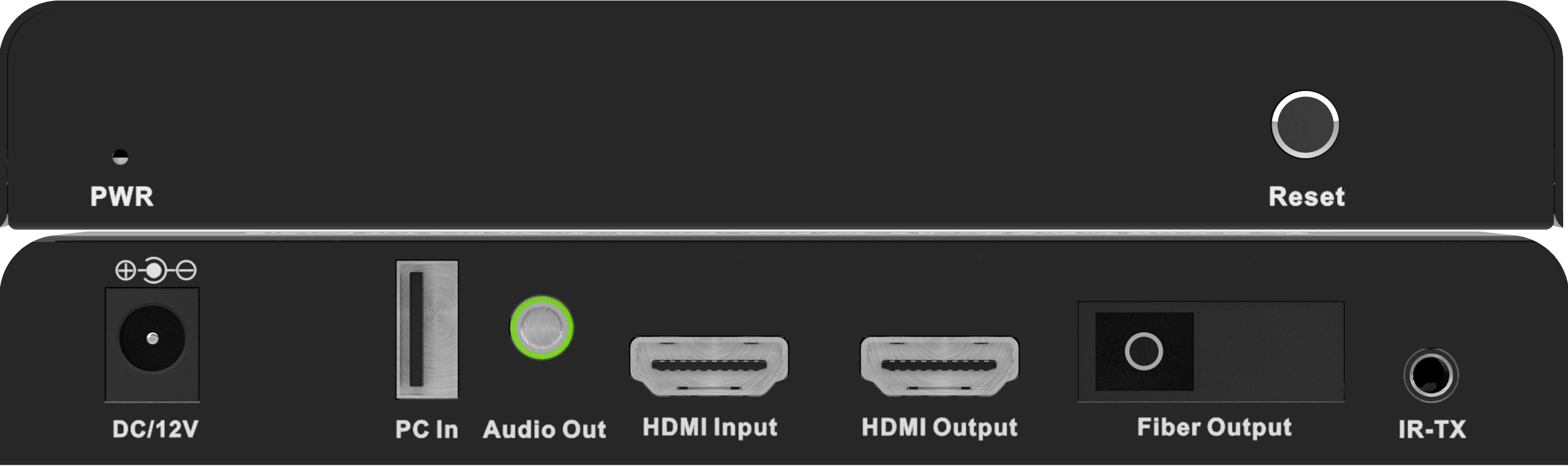

HDMI KVM Extender Transmitter

PWR -----------------------------------------------Power indication

Reset--------------------------------------------------- Reset button

DC/12V----------------------------------DC Power input interface

PC Input ---------------------------------------USB Input interface

Audio In -----------------------------------Stereo output interface

HDMI Input --------------------------------- HDMI input interface

HDMI Output -------------------------- HDMI Loopout interface

Fiber Output ------------------------------Fiber Output interface

IR-TX ------------------------------------------------IR TX interface

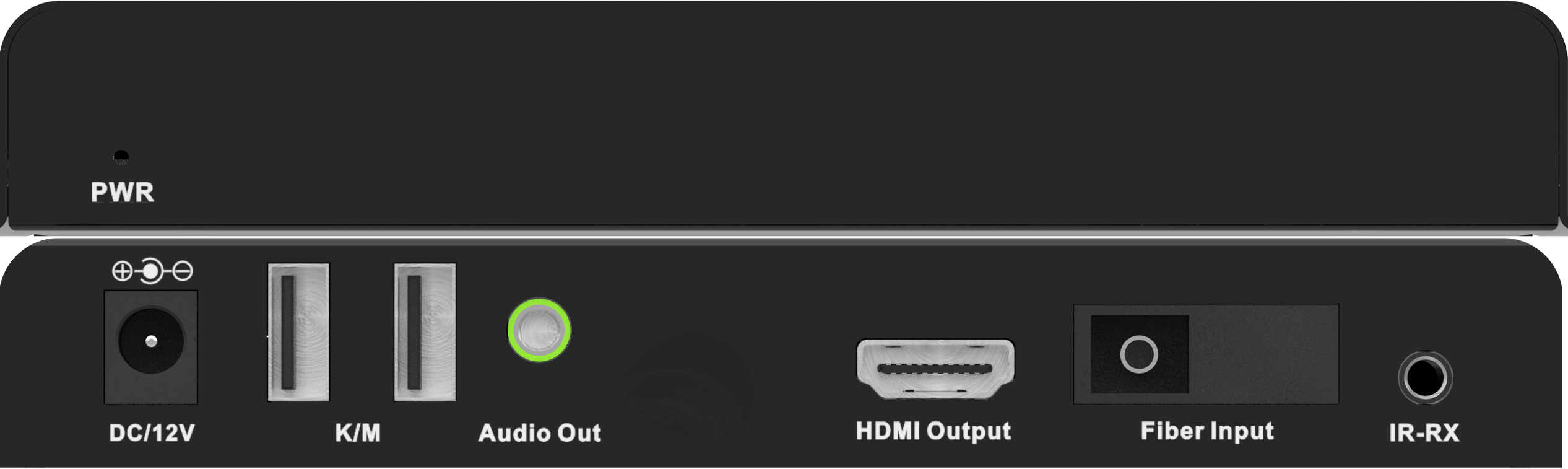

HDMI KVM Extender Receiver

PWR -----------------------------------------------Power indication

DC/12V---------------------------------DC Power input interface

Keyboard/Mouse --------------------Keyboard/Mouse interface

Audio Out ---------------------------------Stereo output interface

HDMI Output ----------------------------- HDMI output interface

Fiber Input ------------------------------------Fiber Input interface

IR-RX ------------------------------------------------IR RX interface

6.0 CONNECTION AND OPERATION

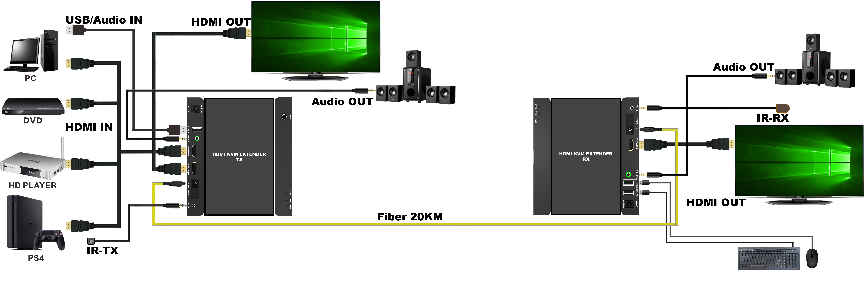

6.01 Transmitter and Receiver one by one application.

1.Connect HDMI signal source to the transmitter of HDMI KVM extender;

2.Connect USB signal source to the transmitter of HDMI KVM extender;

3.Use Fiber cable(Recommend:SC Fiber) to connect transmitter and receiver

of HDMI KVM Extender;

4.Connect the display equipment with HDMI connector to the receiver of

HDMI KVM extender;

5.Connect keyboard and mouse to the receiver of HDMI KVM extender;

6.Turn on the power of all devices and the product starts to work.

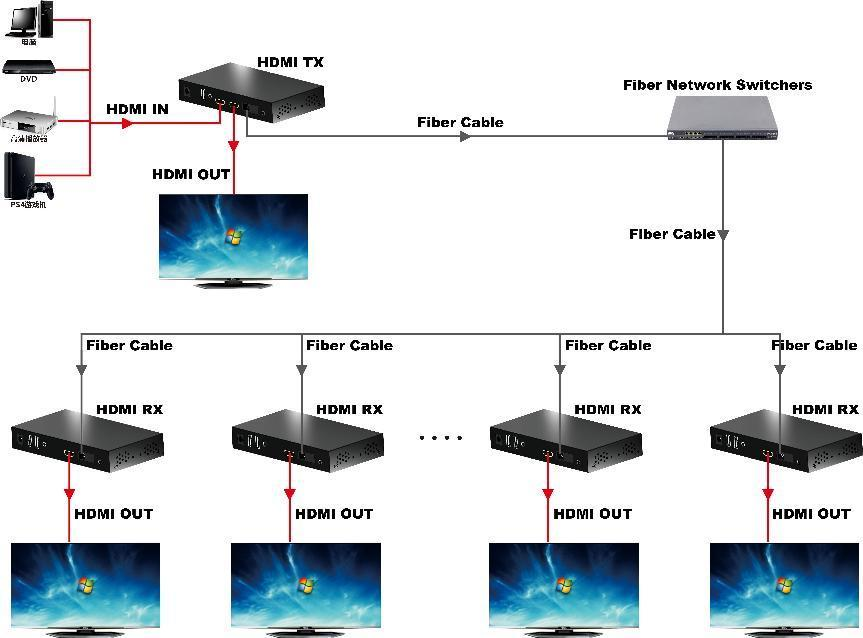

6.02 Transmitter and Receiver one by N application, N can up to 253.

7.0 INSTALLATION AND PRECAUTIONS

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. The equipment should not be placed under the sun , rain and damp or unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
