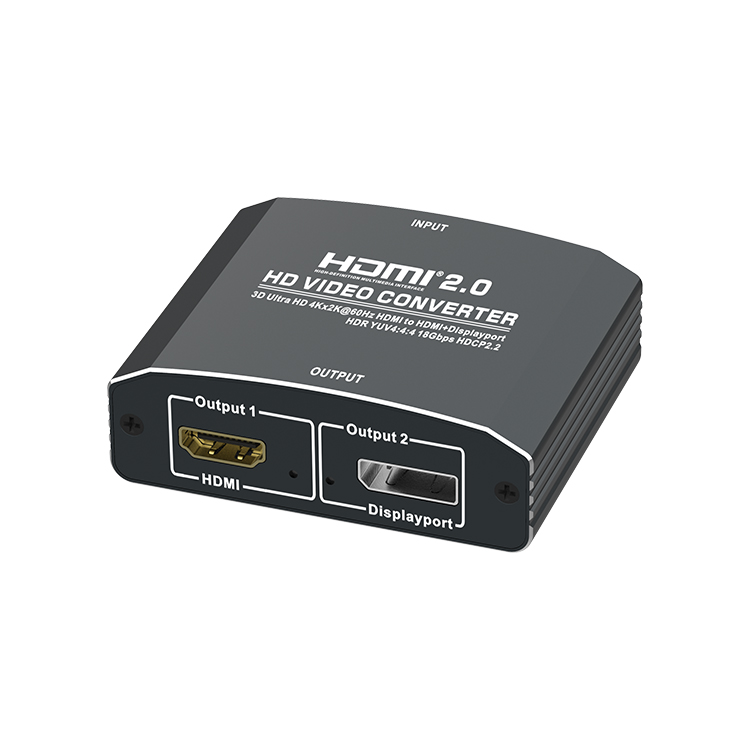

1.0 INTRODUCTION
The converter converts a set of HDMI 2.0 signals into a set of HDMI signals and a set of Displayport signal sync outputs.
It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 FEATURES
1.Plug and play, Installs in minutes;
2.Support the HDCP2.2 protocol, Support for HDMI2.0;
3.Support HDR 18Gbps YUV4:4:4;
4.One HDMI input converted to HDMI+Displayport output;
5.Displayport output support DP1.2;
6.HDMI Input resolution: up to 4Kx2K(60Hz);
7.HDMI/DP Output resolution: up to 4Kx2K(60Hz);
8.Support HDMI and Displayport signal synchronization distribution.
3.0 PACKAGE CONTENTS
Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:
1.Main unit----------------------------------1Pcs
2.User's Manual---------------------------1Pcs
3.5V DC Power Supply------------------1Pcs
4.0 SPECIFICATIONS:
HDMI IN/Out sesolution----------------480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz
DP output----------------------------------480i/p,576i/p,720p,1080i/p,4Kx2K@60Hz
Support video color format-------------------------------24bit/36bit/48bit deep color
Max bandwidth-----------------------------------------------------------------------600MHz
Max baud rate-------------------------------------------------------------------------18Gbps
Input/Output TMDS signal---------------------------------------0.5~1.5Volts p-p(TTL)
Input/Output DDC signal------------------------------------------------5Volts p-p (TTL)
Input cable distance--------------------------------------------------------≤10m 28AWG
Output cable distance ------------------------≤10m 28AWG HDMI standard cable
Max working current------------------------------------------------------------------500mA
Power adapter ----------------Input: AC(50/60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range-------------------------------------------- (-15 to +55℃)
Operating Humidity range----------------------5 to 90%RH (No no Condensation)
Dimension (L x W x H)---------------------------------------------73X60.5X22.5 (mm)
Weight---------------------------------------------------------------------------------------90g
5.0 PANEL DESCRIPTIONS

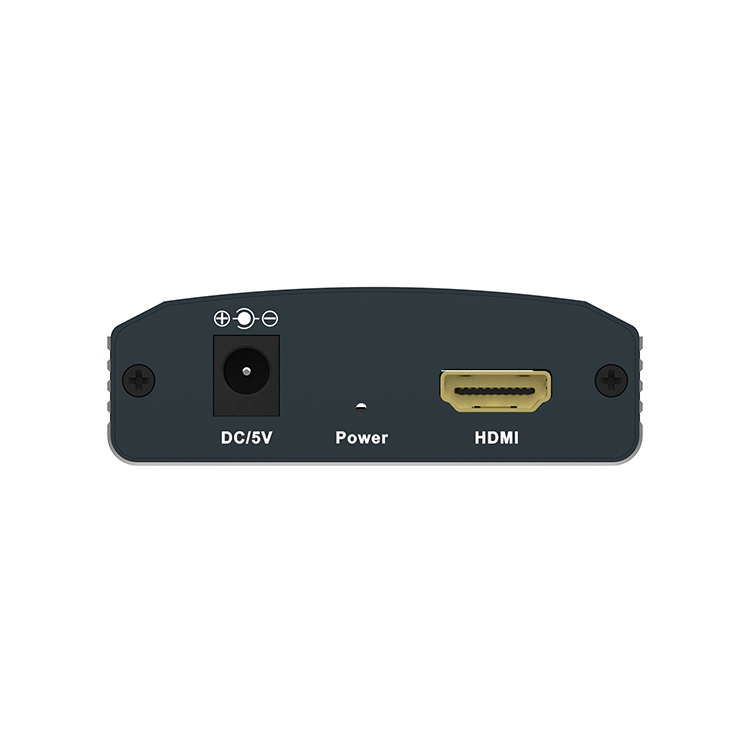

Please study the panel drawings below and become familiar with the signal input(S),output(S)and power requirements.
![T-631-面板1.jpg](/../../upload/image/20240523/6385205543287388174248886.jpg)

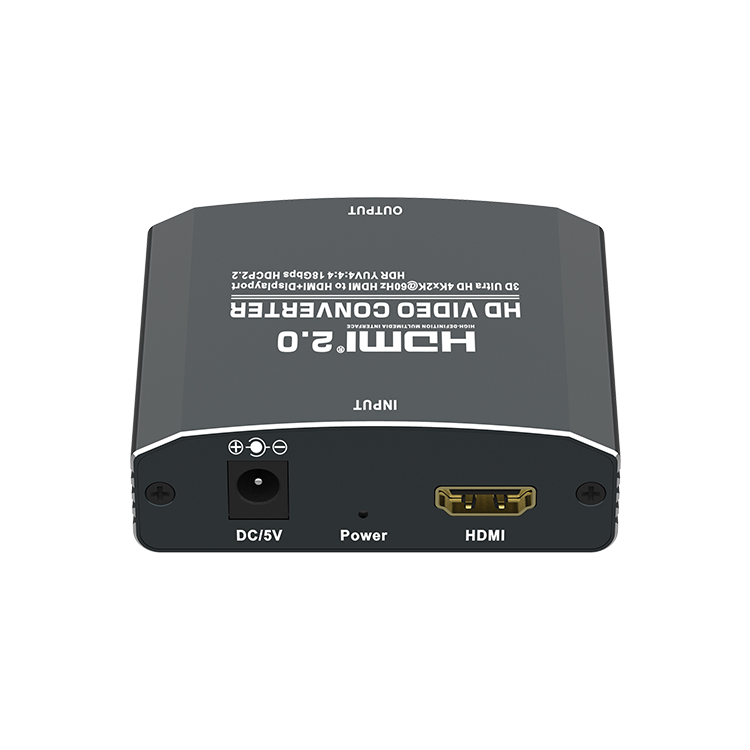

DC/5V---------------------------------------------------------------5V Power Interface
Power--------------------------------------------------------------------Power indicator
HDMI -------------------------------------------------------------------------HDMI Input

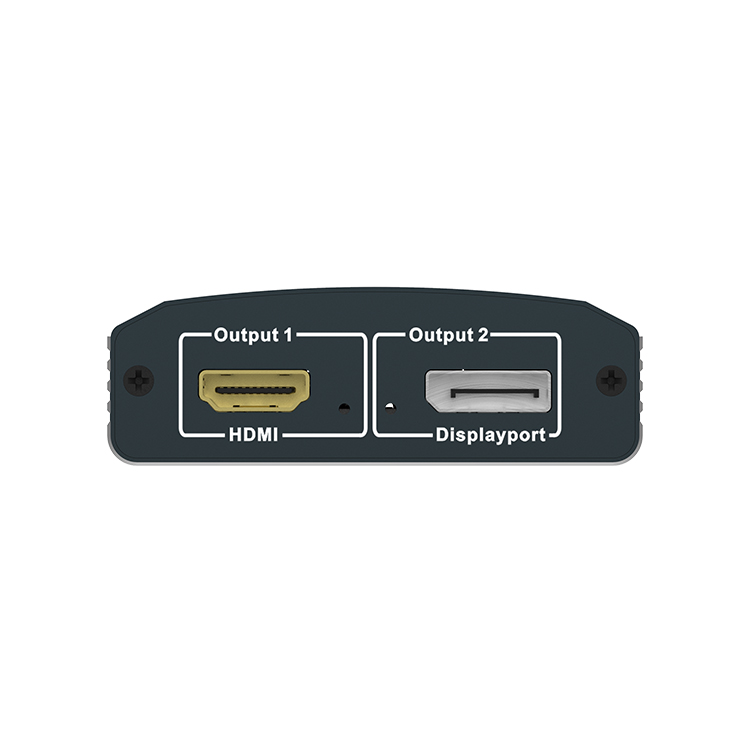

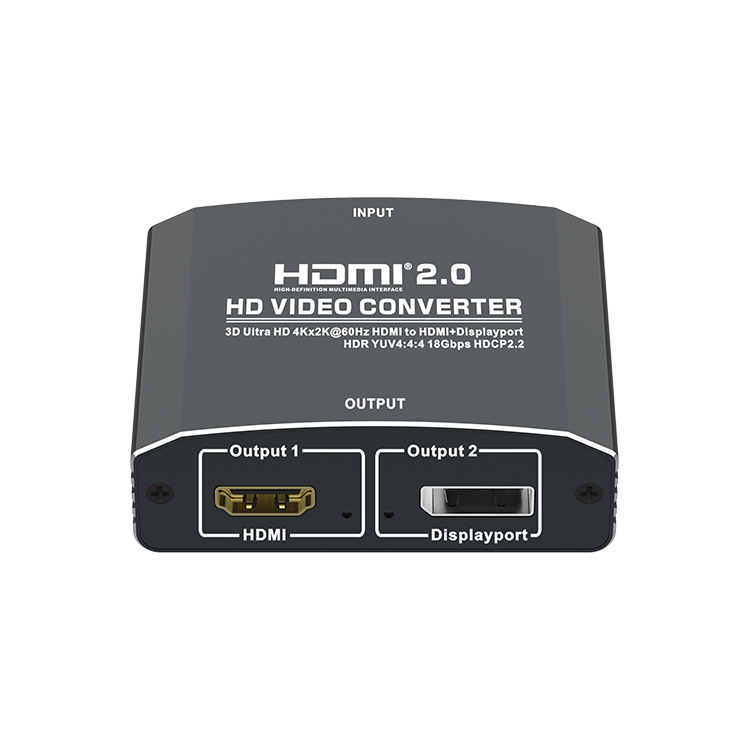

Output1 --------------------------------------------------------------------HDMI Output
Output2 -------------------------------------------------------------Displayport Output
6.0 Operating and Connecting:

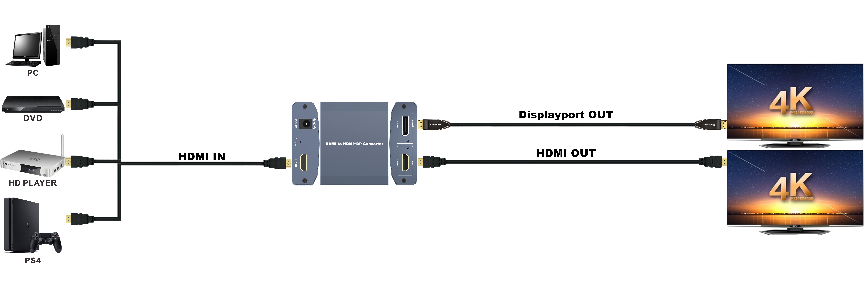

Before installation, please make sure all devices you wish to connect have been turned off.
1.To use one HDMI cable to connect the HD Source with the input HDMI port.
2.To connect the converter HDMI output port with the HDMI Display.
3.To connect the converter Displayport output port with the DP Display.
4.To connect the converter with 5V DC power adaptor.
5.Power on all connected devices, choose the input of the display device
to its HDMI/DP channel.
