1.0 Introduction:

DP Switch is a product that can switch multi-group DP signals to one high definition display device such as HDTV by using manual push button.That  can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.

2.0 Features:

1.Compliant with DP1.2

2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,

and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.

3.Support 3D frame sequential video format up to 1080p@60.

4.Support high resolution VESA mode video format up to QSXGA@60Hz.

5.Support HDR and 18Gbps Signal Speed.

6.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

7.Extend the transmission distance and improve transmission signal.

8.Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. DP Switch----------------------------------------------------------1 Pcs

2. USB Power Cable------------------------------------------------1 Pcs

4.0 Technical parameters

Single Link Range--------------------------------------------------------------4096x2160

Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P

Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)

Deep Color------------------------------------------------------------------------------48 bit

DP Version------------------------------------------------------------------------------DP1.2

Bandwidth---------------------------------------------------------------------Up to 600Mhz

Signal Speed-----------------------------------------------------------------Up to 18Gbps

The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M

The length of output cable-----------------------------------------------------------≤10M

The cable standard-----------------------------------------------------28AWG HDMI2.0

Vertical Frequency Range------------------------------------------------------------60Hz

Power Consumption(max.)-------------------------------------------------------0.5Watts

Operation Temperature-----------------------------------------------------------0℃-70℃

Net Weight------------------------------------------------------------------------------0.03Kg

Dimension: L*W*H(mm)-----------------------------------------------------53.9x52x15.4

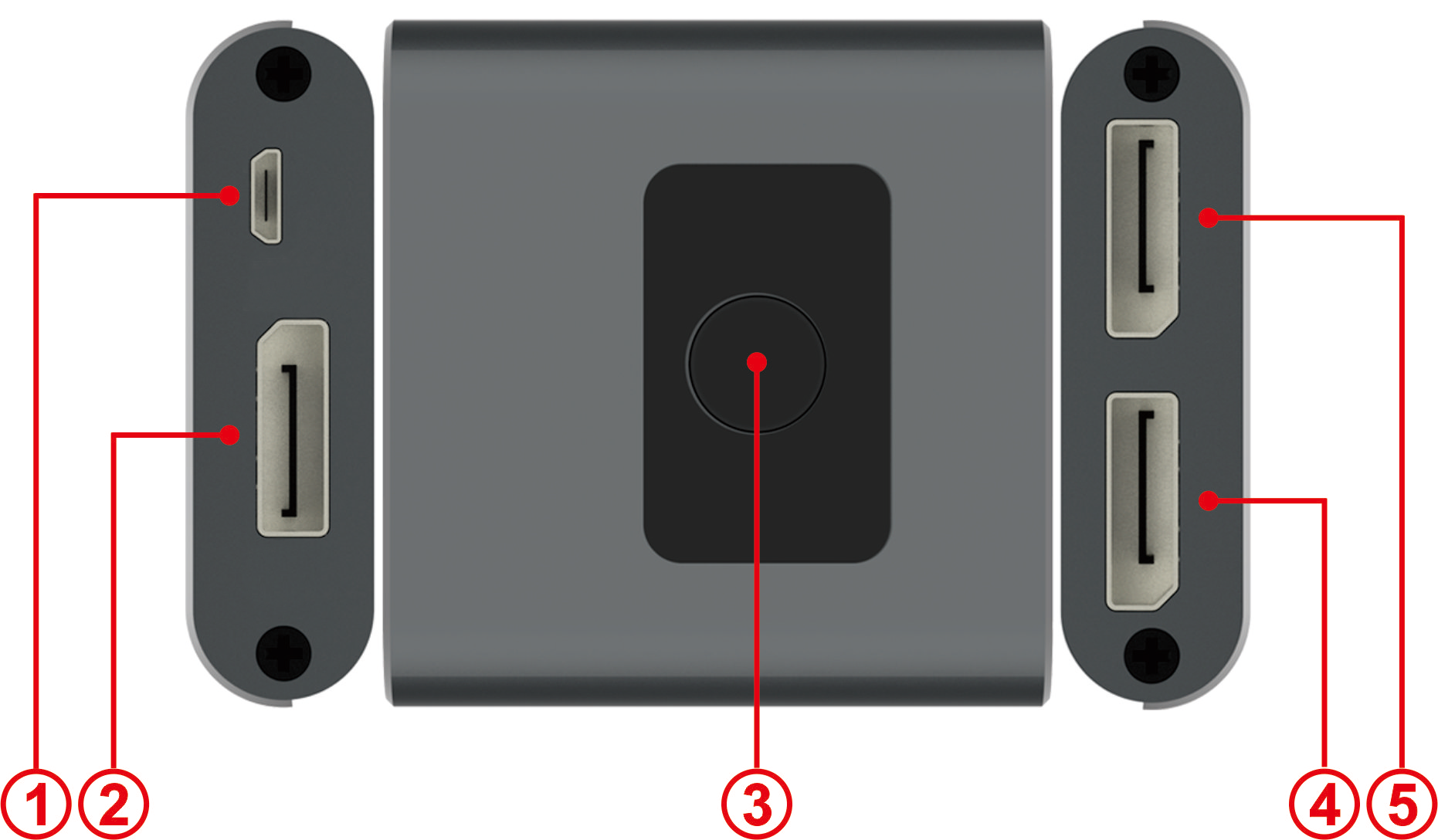

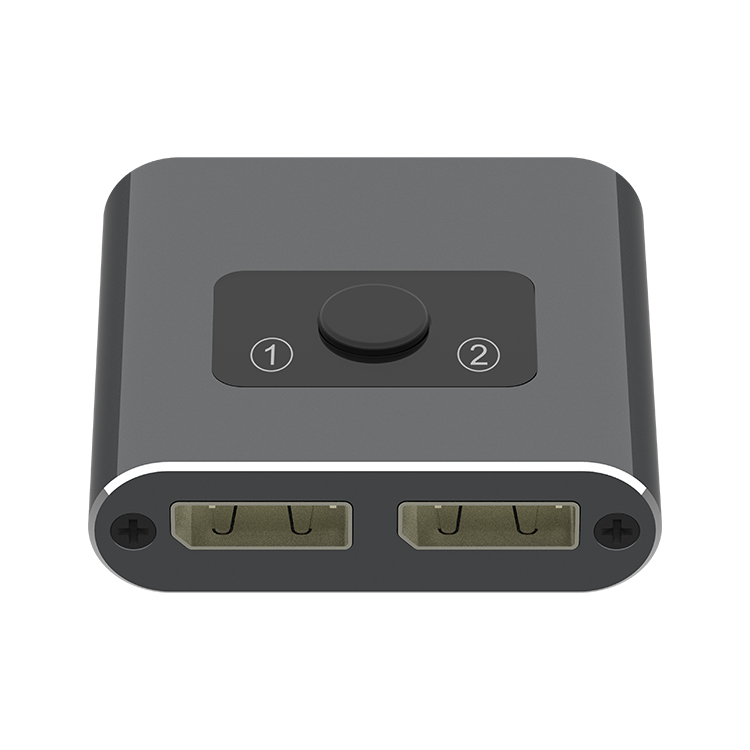

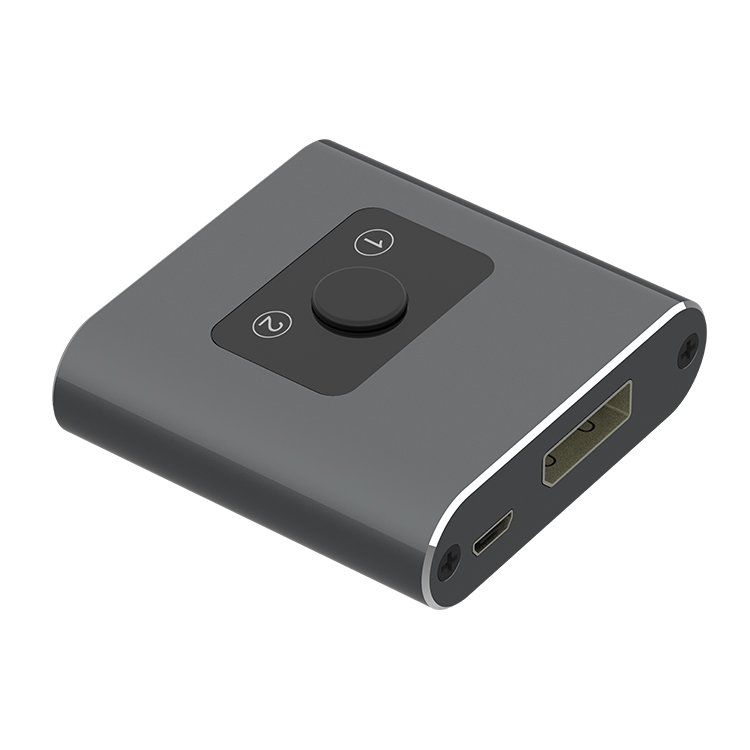

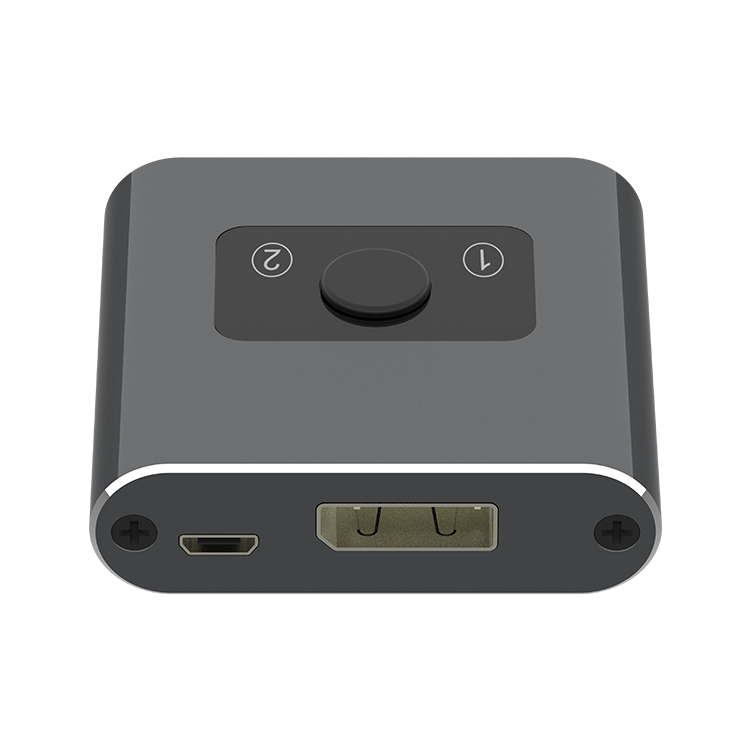

5.0 Panel Introduction

1.USB Power Input

When DP 1x2 splitter is using, 1 is input

When DP 2x1 switcher is using, 1 is output

3.Switch Button

When DP 1x2 splitter is using, 4/5 is output

When DP 2x1 switcher is using, 4/5 is input

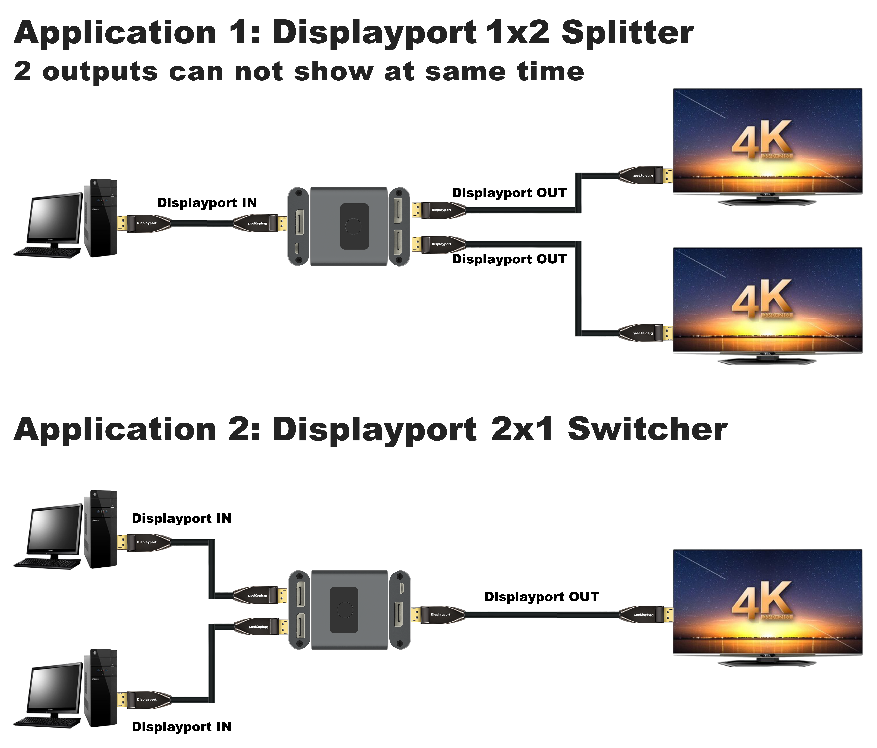

6.0 Connection diagram

Before installation, please make sure all devices you wish to connect have been turned off.

6.01 Connect the DP cable between signal source and input port of product.

6.02 Connect the DP cable between output port of product and HDTV.

6.04 Open the signal source and the power of HDTV, then it works.
