1.0 Features

1) Support input max resolution 4K@30Hz;

2) Support output max resolution 1080P@60Hz;

3) Support HDMI Loopout;

4) Support 8/10/12bit deep color;

5) Support 26AWG HDMI standard cable(Input up to 15 meters)

6) Support most acquisition software,such as VLC,OBS,Amcap,etc;

7) Support Windows,Android and Mac OS;

8) Conform to USB Video and UVC standard;

9) Conform to USB Audio UAC standard;

10) Without external power supply,compact and portable.

2.0 Hardware requirements(Recommended)

Intel Core solo (Intel Core i5).1G Ram(2G Ram)Available USB3.0 interface.

3.0 System requirements(Recommended)

Windows 7/8/10/Server 2008,Linux Kernel version 2.6.38 and above,OS X 10.8 and above,Android.5.0 or above (only video)

4.0 Compatible software

Adobe Flash Media Live Encoder (Windows, OS X),Real Producer Plus

(Windows),Quick Time Broadcaster (OS X),Quick Time Player (OS X),Windows Media Encoder (Windows),Daum Pot player (Windows, OS

X),X split Broadcaster (Windows, OS X), VLC (Windows, OS X, Linux)Wire cast (Windows, OS X), OBS etc.

5.0 Packaging accessories

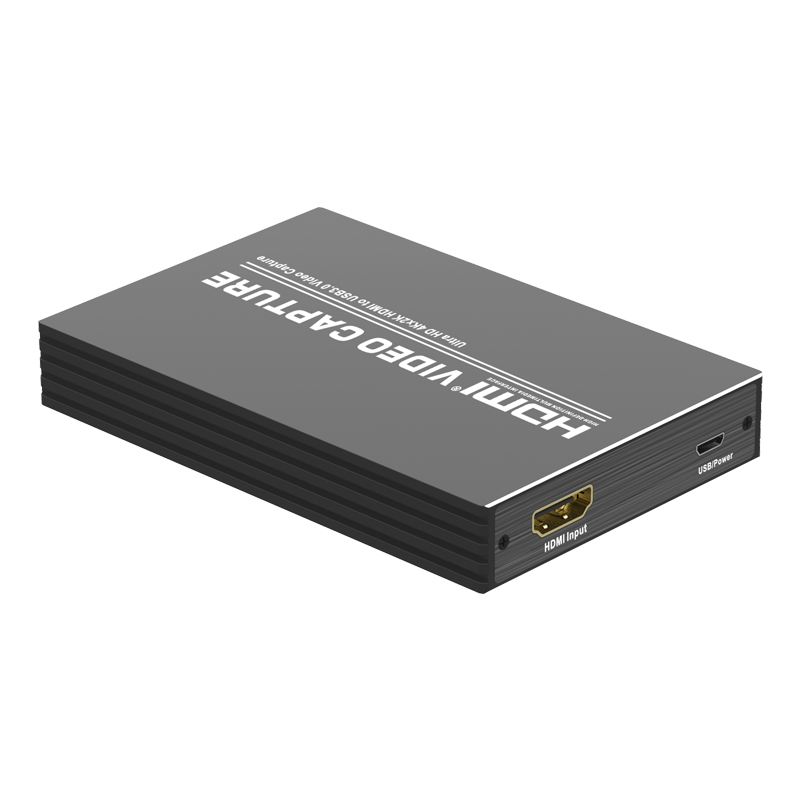

HDMI Video Capture ---------------------------------------------- 1PCS

USB Power Cable -------------------------------------------------- 1PCS

USB Data Cable ---------------------------------------------------- 1PCS

Operation Manual -------------------------------------------------- 1PCS

6.0 Specifications

HDMI resolution -----------------------------Max input can be 4K@30Hz

Support video format --------------------------------8/10/12bit Deep color

Video output format -----------------------------------------------YUV,JPEG

Video output resolution --------------Max output can be 1080p@60Hz

Support audio format ---------------------------------------------------L-PCM

Input cable distance ----------------15m,AWG26 HDMI standard cable

Max working current ---------------------------------------------------0.4A/5V

Operating Temperature range -------------------------------(-10 to +55℃)

Dimension(L×W×H)-----------------------------------------107x71x16mm

Weight -------------------------------------------------------------------------140g

7.0 Panel descriptions

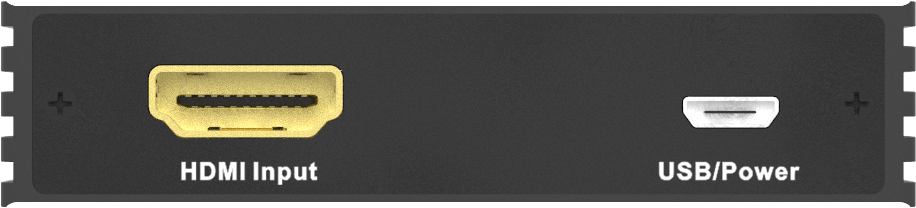

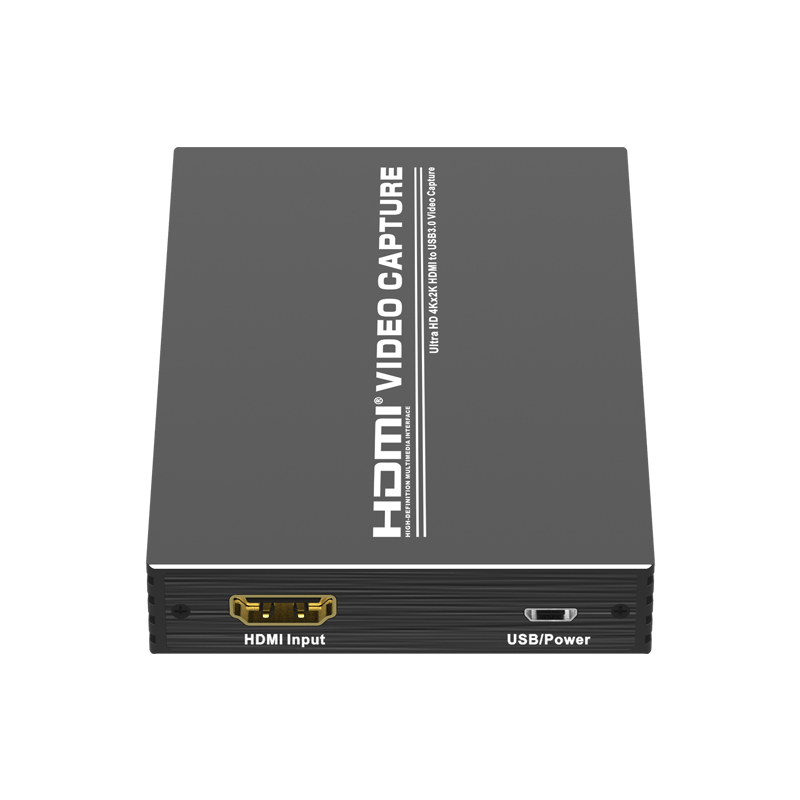

HDMI Input ----------------HDMI input interface

USB/Power ----------------USB power interface

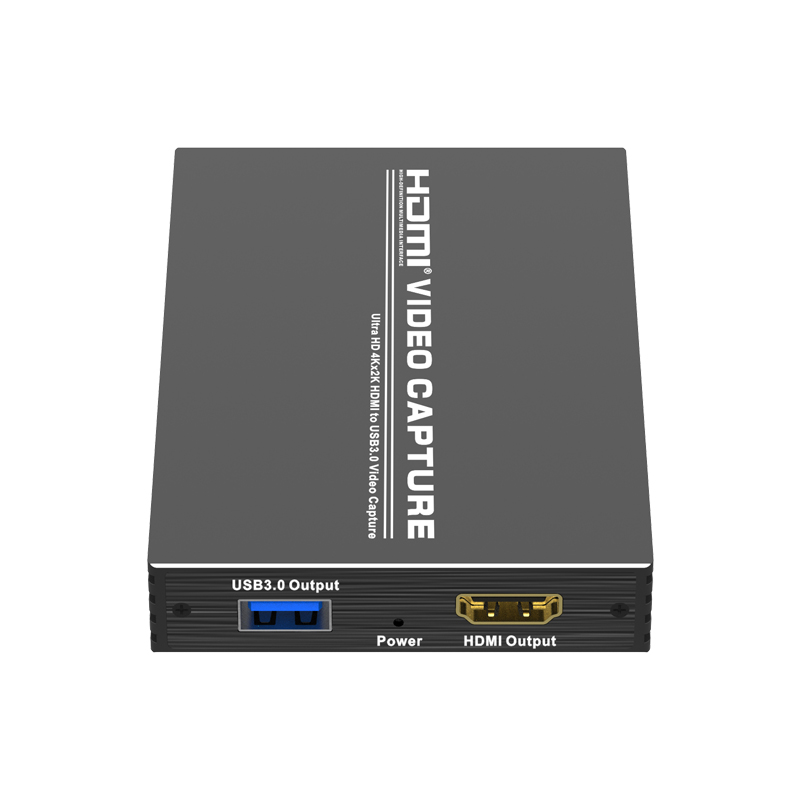

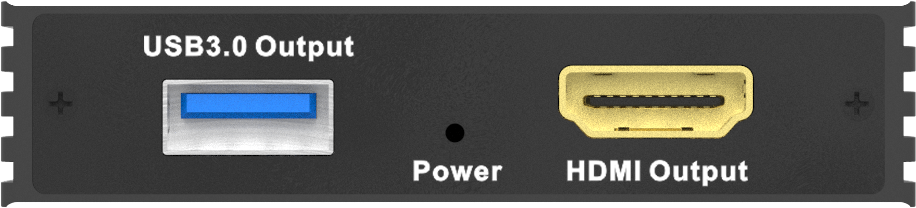

USB3.0 Output ----------USB Output interface

Power ------------------------------Power indicator

HDMI Output ------------HDMI Output interface

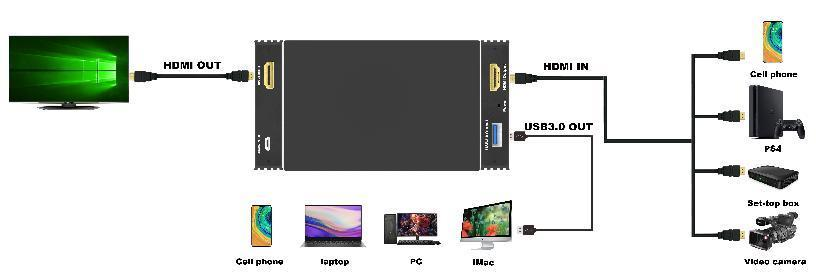

8.0 Connect and Operate

1.Use HDMI cable to connect HDMI input to HDMI output of PC.

2. Use HDMI cable to connect HDMI output to HD display.

3. Start PC and display to use.

9.0 Installation and precautions

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. 2.The equipment should not be placed under the sun , rain and damp or  unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
