1.0 INTRODUCTION

The HDMI KVM Extender use single cat-5e or cat-6(recommended) cables up to 120 meters instead of HDMI cable to transmit high definition signal, for cutting down cost.

2.0 FEATURES

1.Signal transmission :CAT5e/6(recommended) cables up to 120 meters instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI 1.4.HDCP1.4.

3.Support input/output resolution:480i/p,576p,720p,1080i/p,4Kx2K@30Hz.

4.Support IR control, you can control STB or Blue-Ray DVD at receiving site by

  remote control.

5.Support IR remote control 20~60KHz,NEC.

6.Support TX of Extender with HDMI Loopout.

7.Support Transmitter and Receiver Audio Extract.

8.Support long distance controlled by keyboard and mouse.

9.The design of pure hardware, plug and play, no need for additional software.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

HDMI Extender Transmitter ------------------------------------------------ 1PCS

HDMI Extender Receiver --------------------------------------------------- 1PCS

IR Transmitter ------------------------------------------------------------------ 1PCS

IR Receiver --------------------------------------------------------------------- 1PCS

5V DC Power Supply adapter --------------------------------------------- 2PCS

USB Data Cable----------------------------------------------------------------1PCS

Operation Manual ------------------------------------------------------------- 1PCS

4.0 SPECIFICATIONS

HDMI Version----------------------------------------------------------------------HDMI1.4b

Transmitter Input Ports --------------------------------------HDMIx1(AF),USB(BF)x1

Transmitter Output Ports ------------HDMIx1(AF),CAT5e/6x1,IR TXx1,Stereox1

Receiver Input Ports-------------------------------------------------CAT5e/6x1,IR RXx1

Receiver Output Ports----------------------------------------HDMIx1(AF),USB(AF)x2

Frequency Bandwidth------------------------------------------------------------10.2Gbps

Input/Output Resolutions---------------480i/p,576p,720p,1080i/p,4Kx2K@30Hz

Audio -------------------------------------Sample rate:32kHz,44.1kHz,48kHz,96KHz

IR remote control----------------------------------------------------------20~60KHz;NEC

ESD Protection Human Body Model --------------------± 8kV (air-gap discharge)

                                             ± 4kV (contact discharge)

Operating Temperature-----------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature ------------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity-------------------------------------20~90% RH (non-condensing)

Dimensions (mm)------------------------------------------------------------170x81.5x22

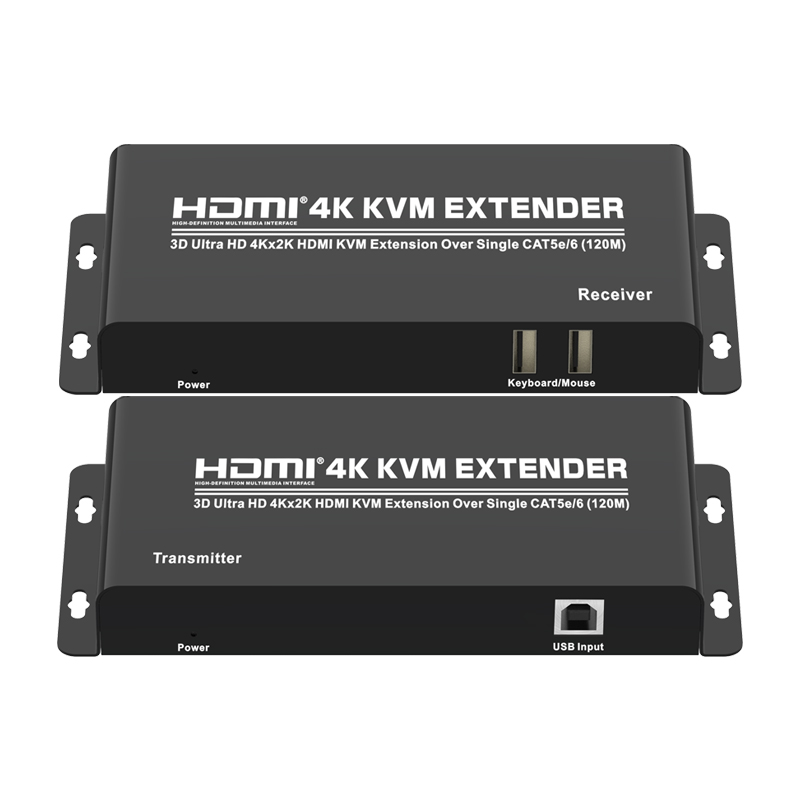

5.0 PANEL DESCRIPTIONS

HDMI KVM Extender Transmitter

Power ----------------------------------DC Power Input Status

USB Input ----------------------------------------USB Input port

DC/5V--------------------------------------DC Power input port

HDMI Loopout ----------------------------- HDMI Output port

HDMI IINPUT ------------------------------ HDMI Source port

IR TX ----------------------------------------------------IR TX port

Audio Out -------------------------------------Audio output port

CAT5e/6 Out -----------------------------Cat5e/6 Output port

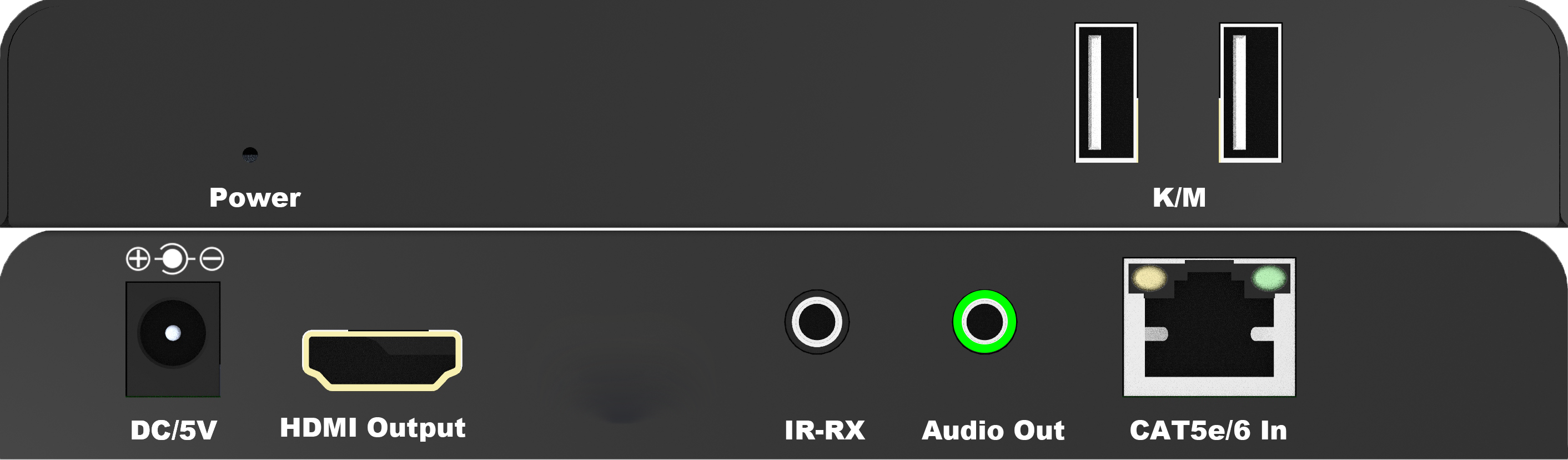

HDMI KVM Extender Receiver

Power -----------------------------------DC Power Input Status

K/M ----------------------------------------Keyboard and Mouse

DC/5V---------------------------------------DC Power input port

HDMI Output ---------------------------------HDMI Output port

IR RX ----------------------------------------------------IR RX port

Audio Out --------------------------------------Audio output port

CAT5e/6 In -----------------------------------Cat5e/6 Input port

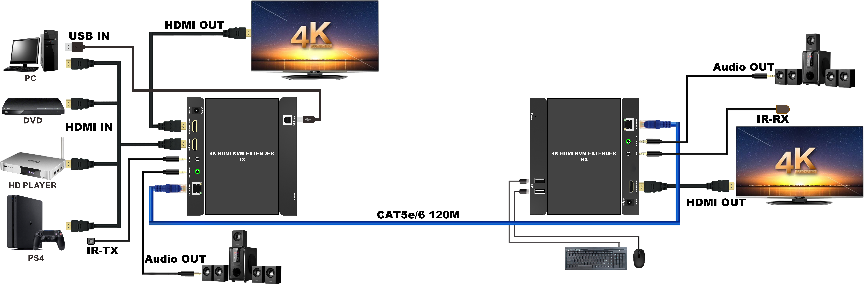

6.0 CONNECTION AND OPERATION

Before installation, please make sure all devices you wish to connect have been turned off.

6.01.Connect HDMI signal source to the transmitter of HDMI KVM extender;

6.02.Connect USB signal source to the transmitter of HDMI KVM extender;

6.03.Use LAN cable(Recommend:CAT5e/6) to connect transmitter and

receiver of HDMI KVM Extender;

6.04.Connect the display equipment with HDMI connector to the receiver of

HDMI KVM extender;

6.05.Connect keyboard and mouse to the receiver of HDMI KVM extender;

6.06.Turn on the power of all devices and the product starts to work.
