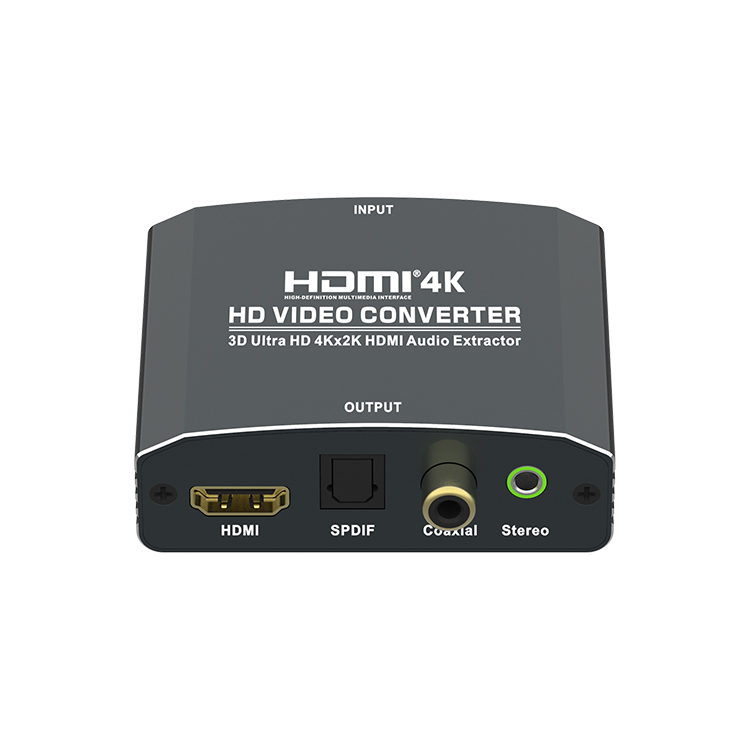

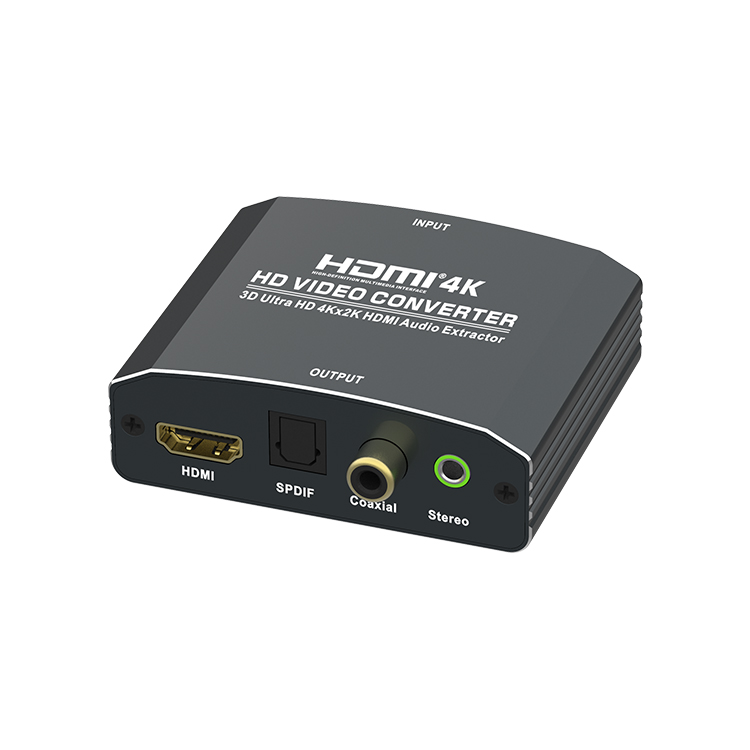

3D Ultra HD 4Kx2K HDMI Audio Extractor Price:¥

Online inquiry
Detailed content

1.0 INTRODUCTION

The converter allows the HD Source connected to single HD Display and adds extra one 3.5 Stereo and SPDIF/Coaxial audio out port.

It offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



2.0 FEATURES

1.Plug and play, Installs in minutes;

2.Support the HDCP protocol, support for HDMI 1.4b;

3.One HDMI input converted to one HDMI+ Audio

(SPDIF+3.5(Stereo)+Coaxial) output;

4.Input/Output Resolution: up to 4Kx2K(25/30Hz);

5.HDMI to achieve the synchronization of audio signal separation;

6.Support select 2.0CH/5.1CH/by pass audio mode options;



3.0 PACKAGE CONTENTS

Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:

1.Main unit----------------------------------1Pcs

2.User's Manual---------------------------1Pcs

3.5V DC Power Supply------------------1Pcs



4.0 SPECIFICATIONS:

HDMI resolution-------------------------480i/p,576i/p,720p,1080i/p,4Kx2K@30Hz

Support video color format-------------------------------24bit/30bit/36bit deep color

Audio output------------------------------------------------SPDIF+Coaxial+3.5 Stereo)

Max bandwidth-----------------------------------------------------------------------340MHz

Max baud rate-----------------------------------------------------------------------10.2Gbps

Input/Output TMDS signal---------------------------------------0.5~1.5Volts p-p(TTL)

Input/Output DDC signal------------------------------------------------5Volts p-p (TTL)

Input cable distance--------------------------------------------------------15m 26AWG

Output cable distance ------------------------20m 24AWG HDMI standard cable

Max working current------------------------------------------------------------------500mA

Power adapter ----------------Input: AC(50/60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range-------------------------------------------- (-15 to +55)

Operating Humidity range----------------------5 to 90%RH (No no Condensation)

Dimension (L x W x H)---------------------------------------------73X60.5X22.5 (mm)

Weight---------------------------------------------------------------------------------------90g

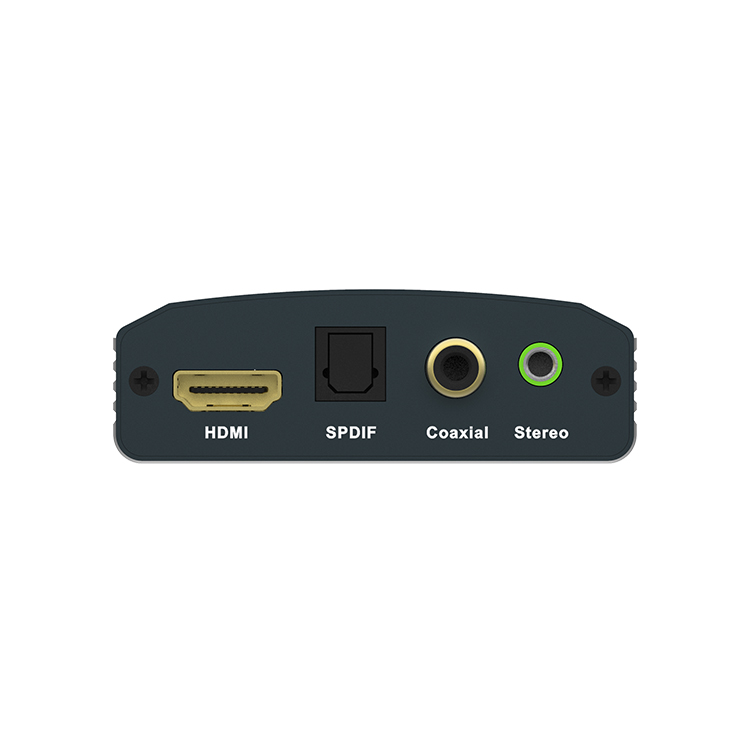

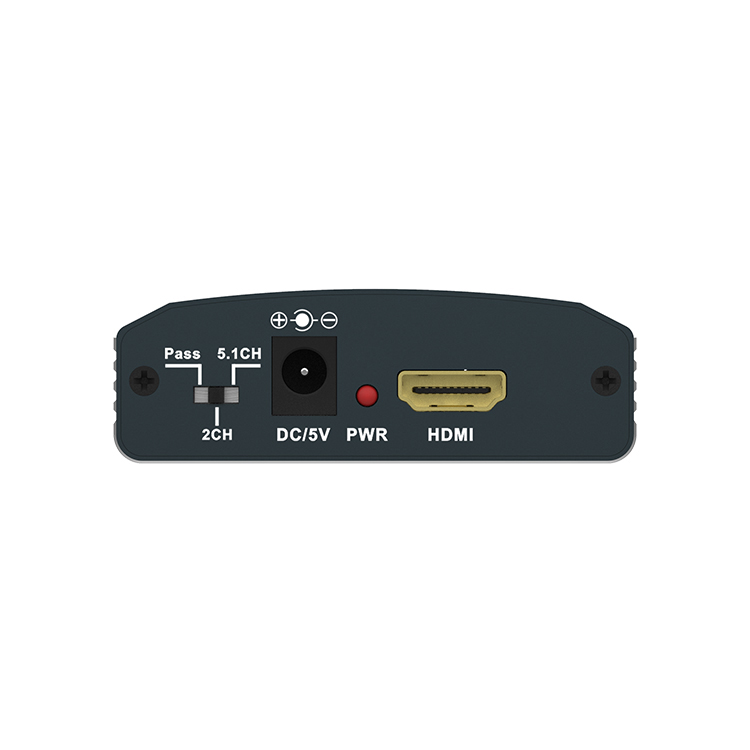

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(S),output(S)and power requirements.


Pass ---------HDMI pass mode.The audio and video from the HDMI output

2CH----------------2 channel stereo mode.The HDMI/SPDIF/Coaxial/3.5mm

                                          audio output stereo audio

5.1CH--------5.1channel mode.The HDMI/SPDIF output 5.1channel audio

DC/5V---------------------------------------------------------------5V Power Interface

PWR---------------------------------------------------------------------Power indicator

HDMI -------------------------------------------------------------------------HDMI input

SPDIF----------------------------------------------------------------------SPDIFOutput

Coaxial-------------------------------------------------------------------Coaxial Output

Stereo ------------------------------------Analog Sound Track 3.5 stereo Output

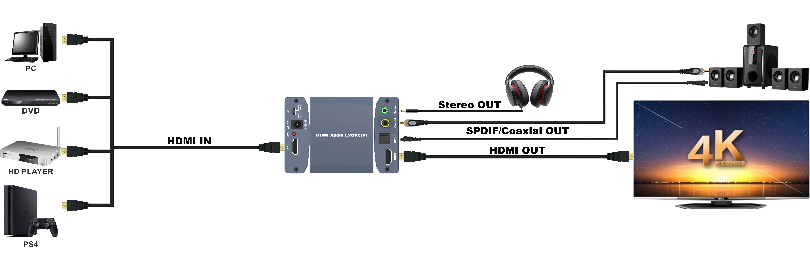

6.0 Operating and Connecting:

Before installation, please make sure all devices you wish to connect have been turned off.


1.To use one HDMI cable to connect the HD Source with the input HDMI port.

2.To connect the converter HDMI output port with the HD Display.

3.To use one audio cable to connect the converter 3.5 stereo port with the audio equipment.

4.To use the optical cable to connect the SPDIF/COAXIAL port with the audio equipment.

5.To connect the converter with 5V DC power adaptor.

6.Power on all connected devices, choose the input of the display device to its HDMI channel.
