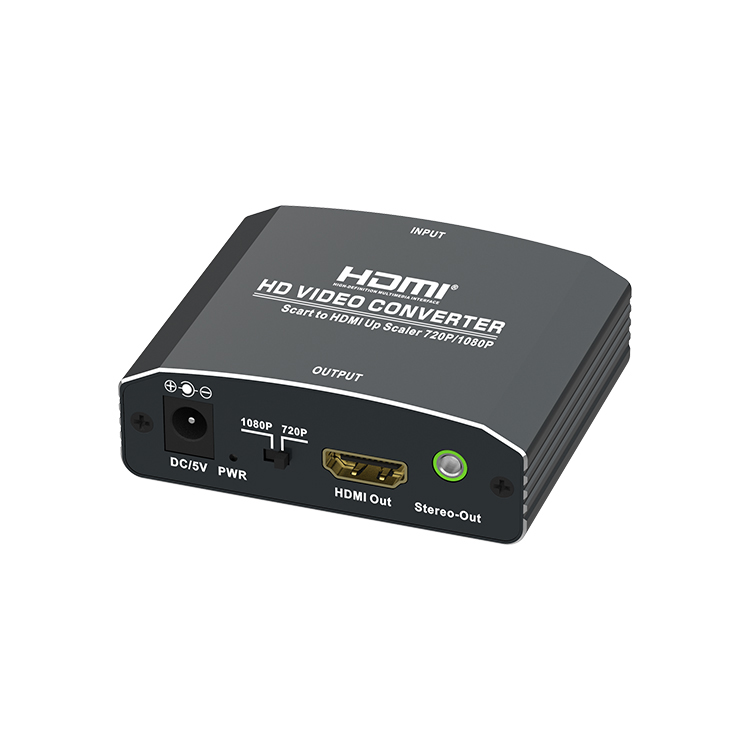

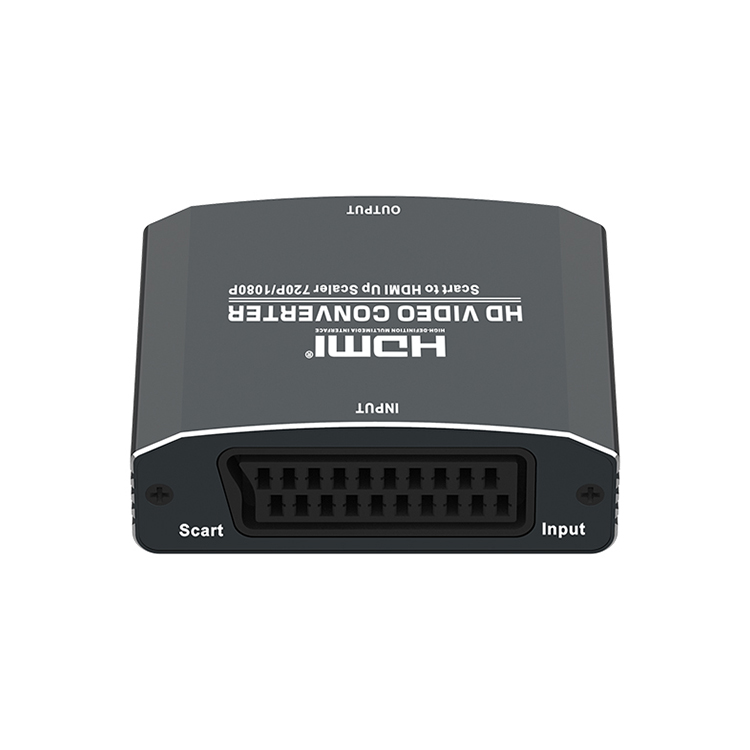

1.0 INTRODUCTION

This scaler Box is designed to display your analog video/YC//RGB images on HDTV’s with better viewing resolutions. It can upscale any SCART input source to HDMI output with a wide-range of resolutions. Incredibly, this device can also transfer sounds allowing everyone to enjoy both HD images and sounds.

2.0 FEATURES

1. Scales up SCART to HDTV resolution up to1080p;

2. Support input video systems NTSC/PAL/SECAM;

3. Digital Noise Reduction – Minimizes picture noise, reproducing images that

  are true to the original;

4. Block Noise Reduction – Effectively minimizes all MPEG noise, Improving

  the digital quality of HDTV broadcasts particularly, where block noise

  happens most;

5. MPEG Noise Reduction – Reduce mosquito noise for MPEG video images

  without losing detail;

6. 3D (frame based) motion adaptive noise reduction;

7. Advanced 3D motion adaptive de-interlace;

8. Automatic 2:2/3:2 film mode detection.

3.0 PACKAGE CONTENTS

Before attempting to use this unit please check the packing and make sure the

following items are contained in the shipping carton:

(1)Scart to HDMI Converter----------------------1Pcs

(2)5V DC Power Supply---------------------------1Pcs

(3)User Manual--------------------------------------1Pcs

4.0 SPECIFICATIONS

Input port-------------------------------------------------------------------------1xSCART

Output ports-------------------------------------------------1xHDMI,1x3.5mm Stereo

Dimensions(mm)----------------------------------------------73(L)x60.5(W)x22.5(H)

Wight (g)-----------------------------------------------------------------------------------90

SCART input Format--------------------------------------PAL / NTSC3.58 / SECAM

                                           NTSC4.43 /PAL-M / PAL-N

HDMI output resolution-----1080P50 Hz,1080P60 Hz,720P50 Hz,720P60 Hz,

                    800x600@60Hz,1024x768@60Hz,1280x1024@60Hz

Operating Temperature-----------------------------------0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature-------------------------------------20°C ~ 60°C / -4°F ~ 140°F

elative Humidity-------------------------------------20 ~ 90% RH (Non-condensing)

Power Consumption (Max)---------------------------------------------------------2.5W

ESD Protection-----------------------------------------------------Human Body Model:

                   ± 8kV (air-gap discharge)

                   ± 4kV (contact discharge)

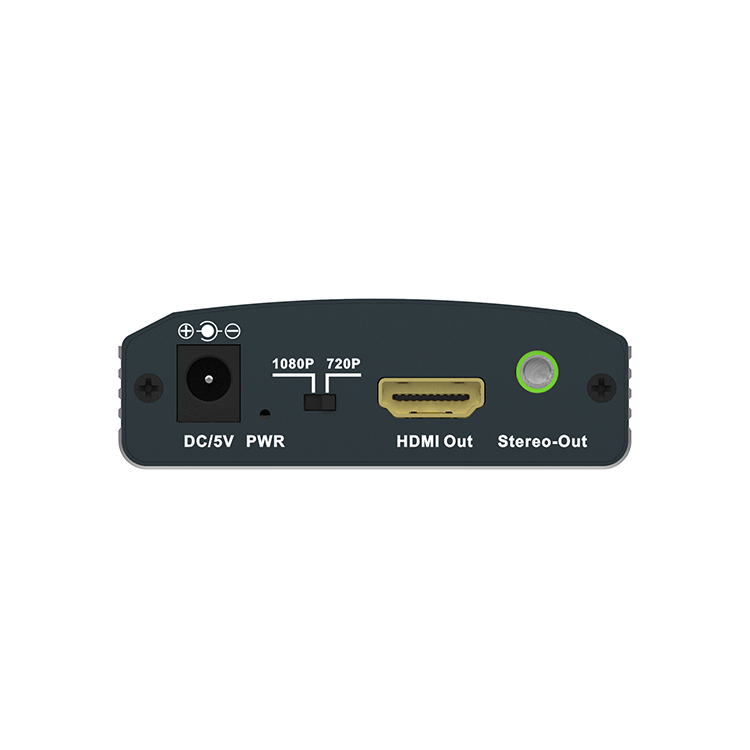

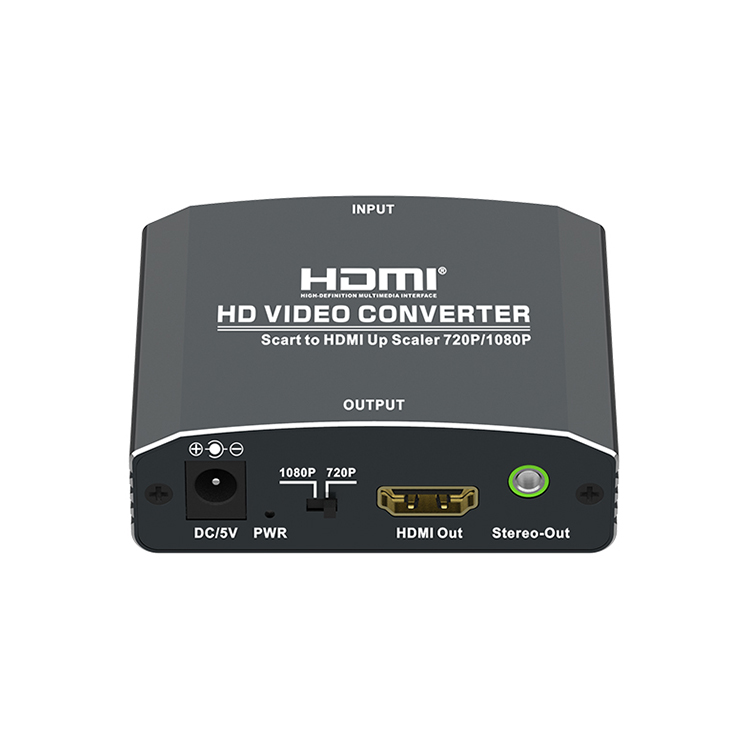

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

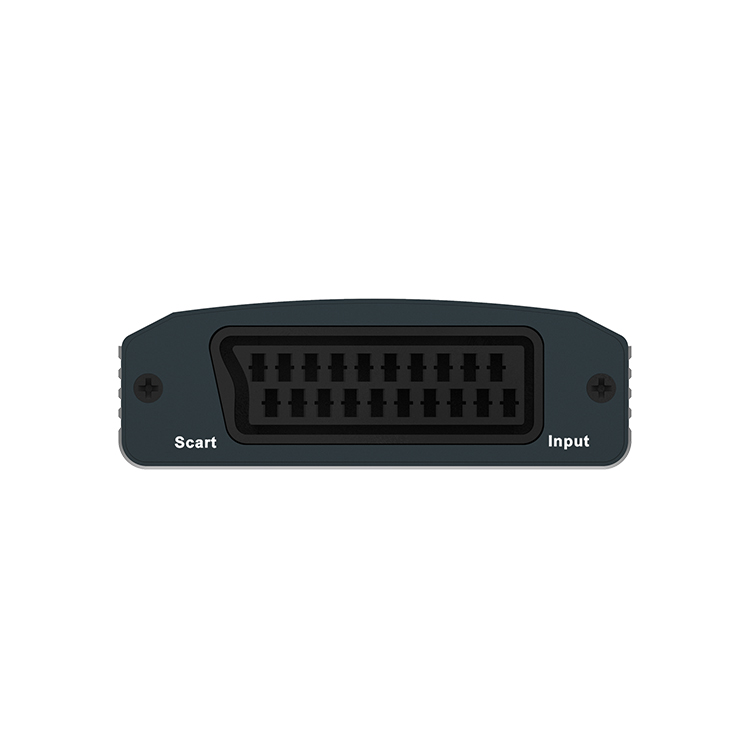

Scart Input -------------------------------------------Scart Input

DC/5V -----------------------------------------------DC 5V Input

PWR ---------------------------------------------Power Indicator

720P/1080P--------------------------------720p/1080p switch

HDMI Out ------------------------------------------HDMI Output

Stereo-Out ----------------------------------------Stereo Output

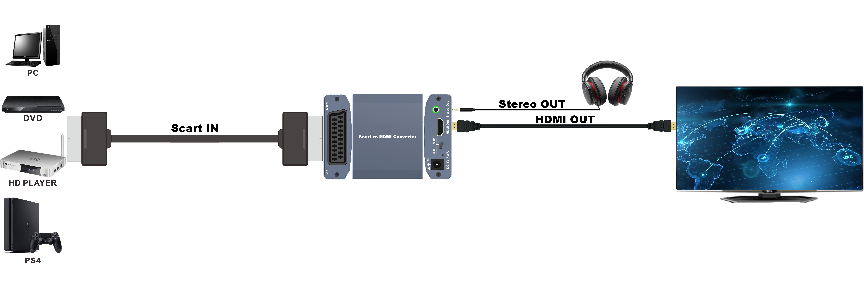

6.0 CONNECTION AND OPERATION

Before installation, please make sure all devices you wish to connect have been turned off.

1. Connect the Scart input of this product to the Converter.

2.Connect the HDMI output from converter to the this Displayer.(Input cables  are optional)

3.Insert the DC side of 5V power supply into this product and then connect the AC side of the power supply into the wall outlet.

4.Power on all connected devices, Choose the input of the display device to its HDMI channel.

5.The image does not need to be adjusted, the Converter will position it automatically, the user may adjust the horizontal position under some extreme condition.
