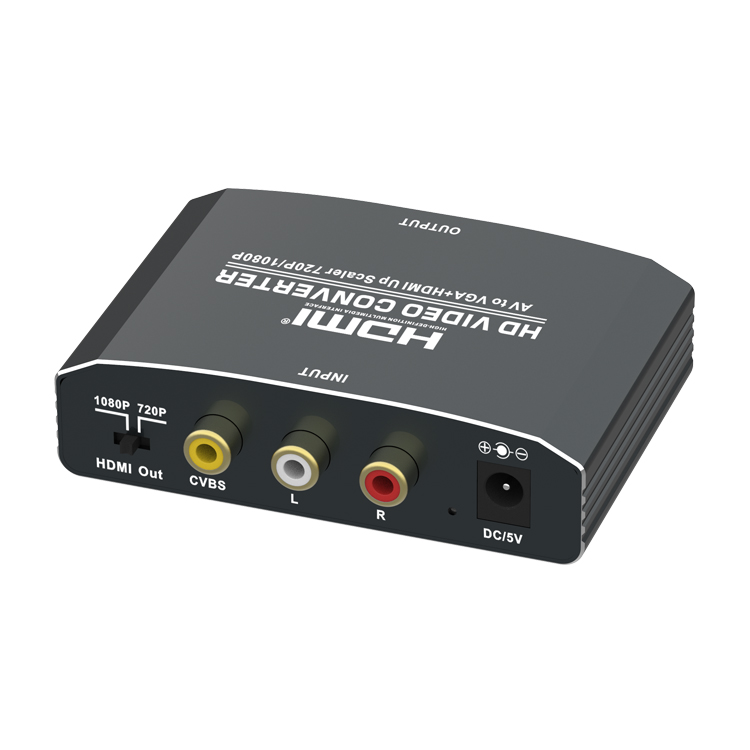

1.0 INTRODUCTION

The AV to VGA+HDMI converter is a universal converter for analog composite input to VGA/HDMI 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch, auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.

2.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Provide advanced signal processing with great precision,

  colors, resolutions, and details;

3. Support PAL, NTSC3.58, NTSC4.43, SECAM,PAL/M, PAL/N

  standard TV formats input;

4.Support Up Scaler;

5.Support VGA auto output;

6.Support HDMI 720p/1080p output.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1)AV to VGA+HDMI Converter----------------------1PCS

2) 5V 1A Power adapter-------------------------------1PCS

3) User Manual------------------------------------------1PCS

4.0 SPECIFICATIONS

Input ports----------------------------------3xRCA (Yellow, White, Red)

Output ports-------------------------1x3.5mm Stereo,1xVGA,1xHDMI

Dimensions (mm)-----------------------------------88(L) x60(W) x23(H)

Wight (g)---------------------------------------------------------------------200

Composite input ---------------PAL, NTSC3.58, NTSC4.43,SECAM

                                             PAL/M,PAL/N

VGA output----------------------------------------------------------------Auto

HDMI output--------------------------------------1080p60Hz, 720p/60Hz

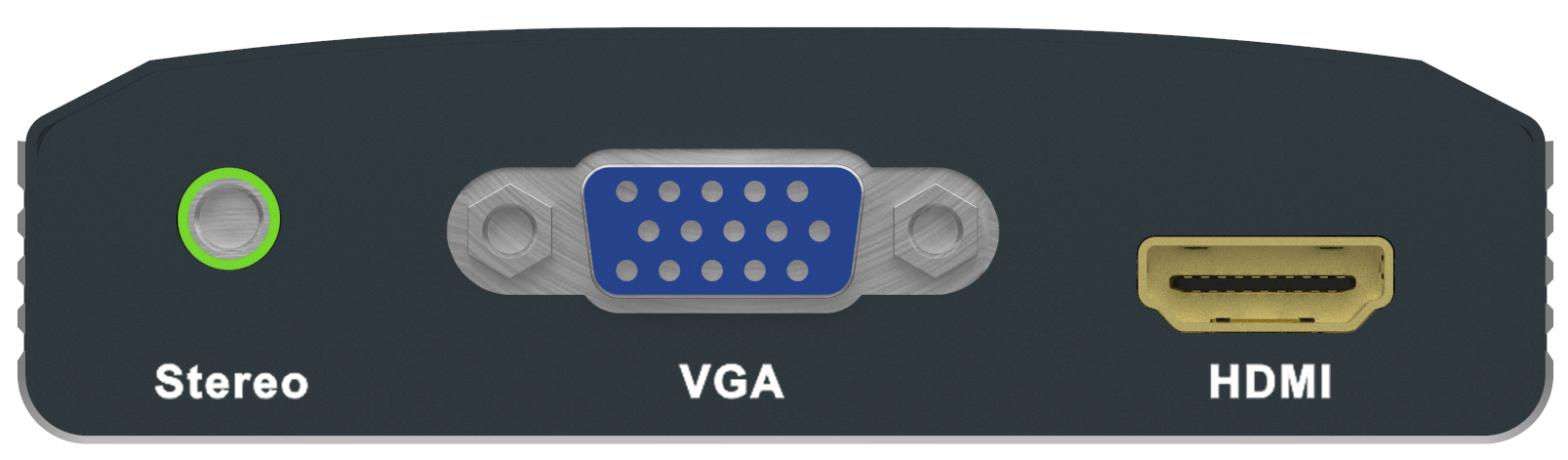

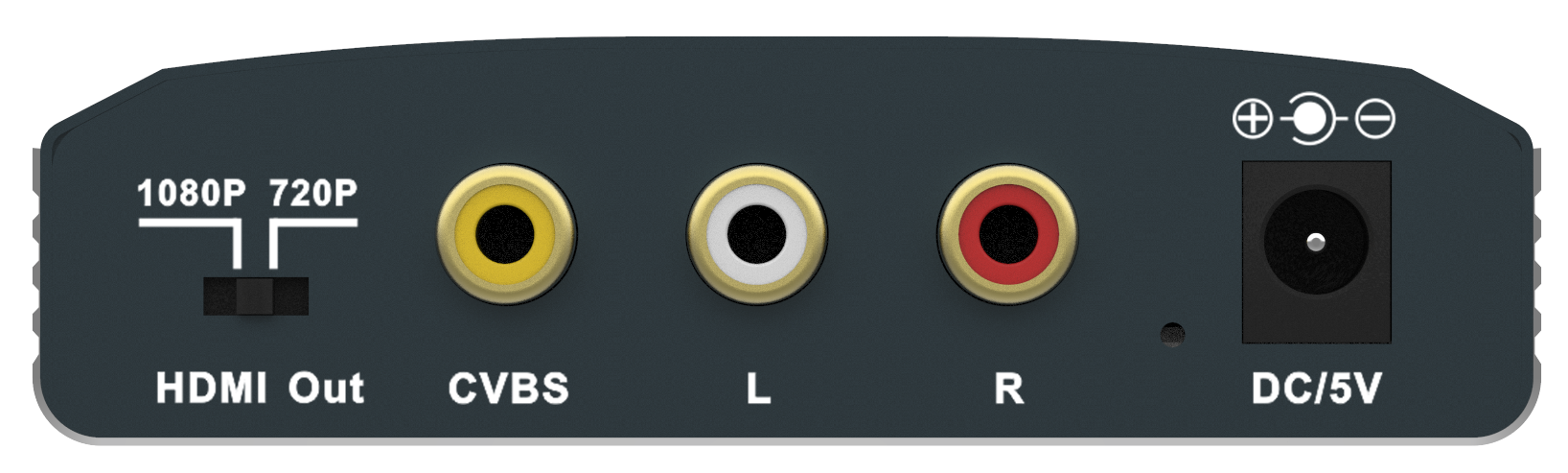

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

1080P/720P-----------------720P/1080P switch

CVBS ----------------------------------CVBS Input

L/R --------------------------------------Audio Input

DC 5V------------------------------5V power input

Stereo Output ----------------------Audio output

VGA Output --------------------------VGA Output

HDMI ---------------------------------HDMI Output

6.0 CONNECTION DIAGRAM

1.Connect the AV input of this product to the Converter.

2.Connect the VGA and audio output from converter to the this VGA Input

Displayer.(Input cables are optional)

3.Connect the HDMI output from converter to the this HDMI Input Displayer.

(Input cables are optional)

4.Insert the DC side of 5V power supply into this product and then connect

the AC side of the power supply into the wall outlet.

5.Power on all connected devices, Choose the input of the display device

to its VGA/HDMI channel.

6.The image does not need to be adjusted, the Converter will position it

  automatically, the user may adjust the horizontal position under some

  extreme condition.
