1.0 Introduction
This kind of the Converter is a VGA video converter. It converts VGA and Stereo input into AV Output to allow PC users to show their image not only on the PC’s monitor, but could also on TV, to have a large display. The conversion is along with the audio.
Converter offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 Features
The series of the video Converter have many features that enable them to perform in a superior manner. among those features you will find:
1.Conversion:It could convert PC’s VGA video and stereo audio
into CVBS+R/L Audio;
2.Easy to Use:Install in seconds, no need of setting;
4.Support resolution:480i/p,576p,720p,1080i/p,1920x1200;
5.Extend the transmission distance and improve transmission signal;
6.Compatible with DVI by using HDMI to DVI adapter;
7.Metal casing design and overall shielding without signal interference.
3.0 Packaging accessories:
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1. VGA to AV Converter----------------------------------------1Pcs
2. 5V DC Power Adaptor---------------------------------------1Pcs
3. User Manual---------------------------------------------------1Pcs
4.0 Specifications
Signal Inputs/Output |
|
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Maximum Single Link Range | 1920X1200, 1080P |
Output Video | 480I 576I |
VGA | 640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 70Hz 75Hz 1280x1024 60Hz 1920x1200 60Hz |
DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
Operating Frequency |
|
Frequency | Up to165MHz |
Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) | 480i,576i,1080i |
Progressive(50&60Hz) | 480p,576p,720p,1080p |
Mechanical |
|
Size(LxWxH) | 73x60.5x22.5mm |
Weight(Net) | 0.09Kg |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10 to +80℃ |
Storage Humidity | 5% to 95 % RH (no condensation) |
Power Requirement |
|
External Power Supply | DC 5V 1A |
Regulatory Approvals |
|
Converter Unit | CE,FCC,ROHS |
Power Supply | CE,FCC,PSE,TK,UL |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |

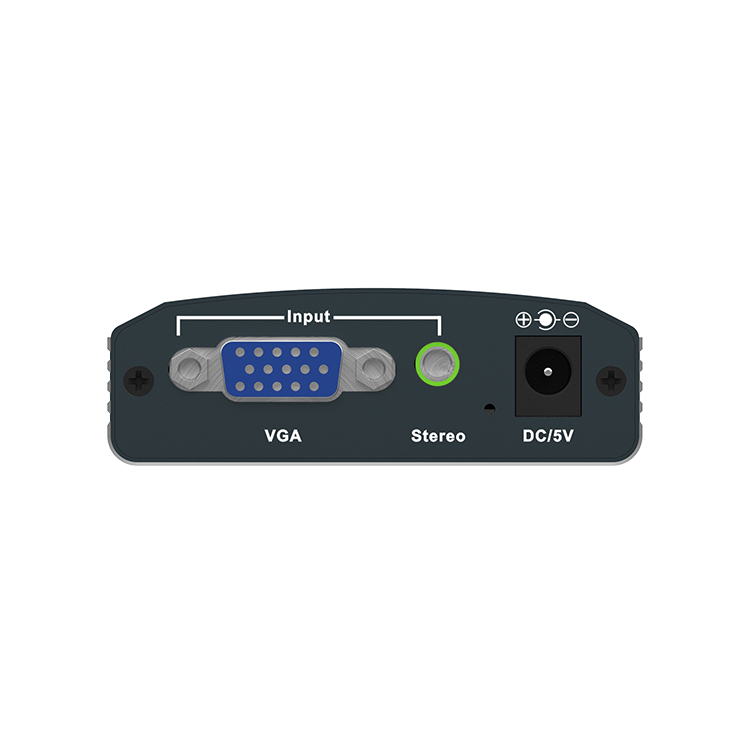

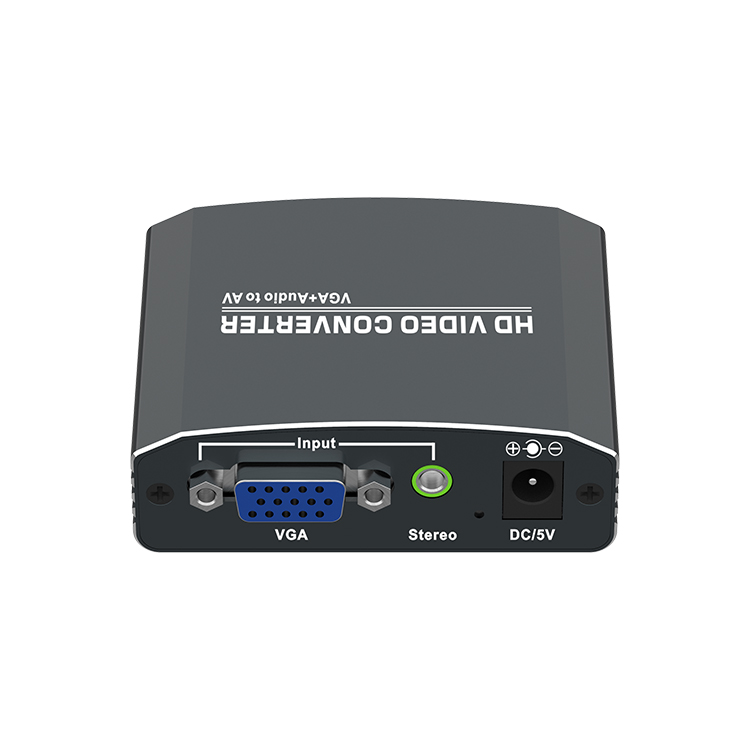

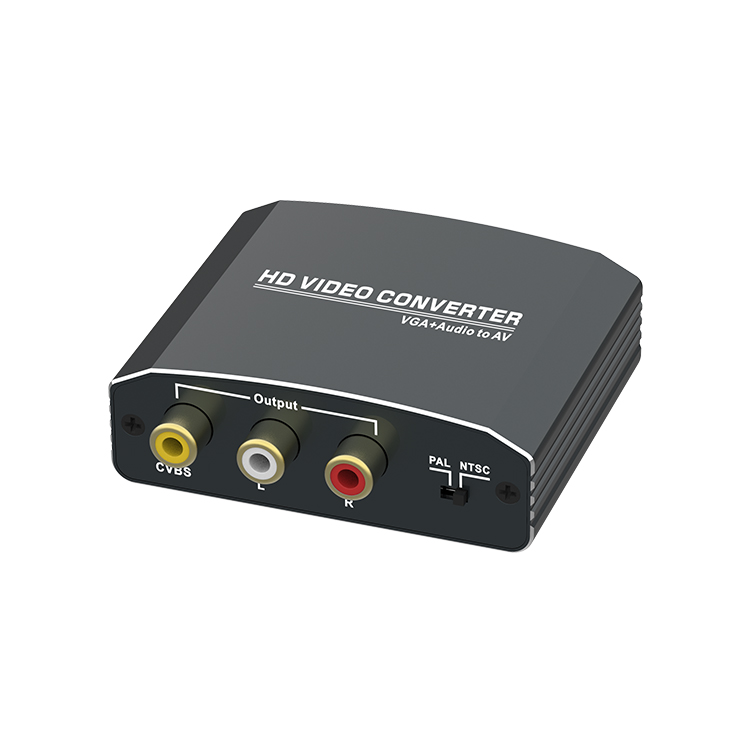

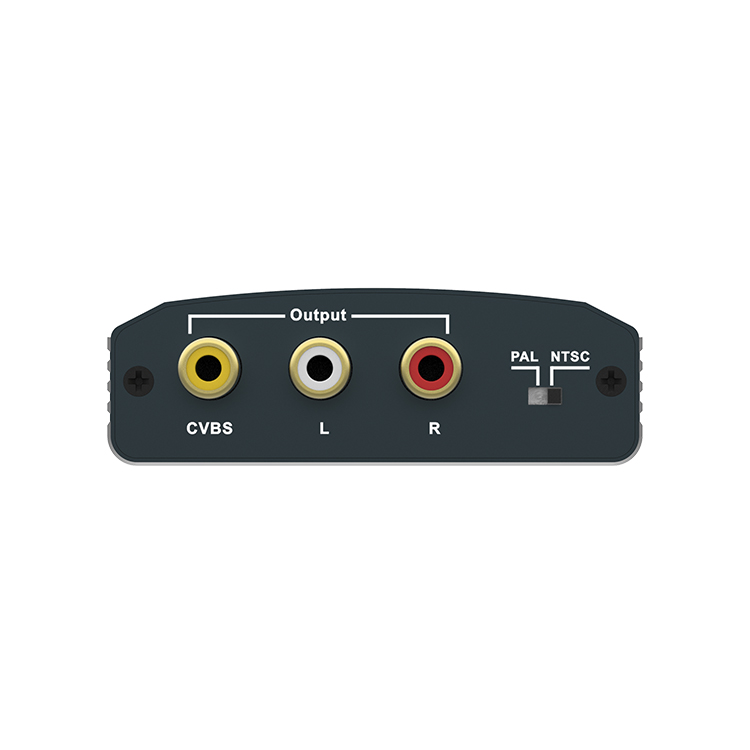

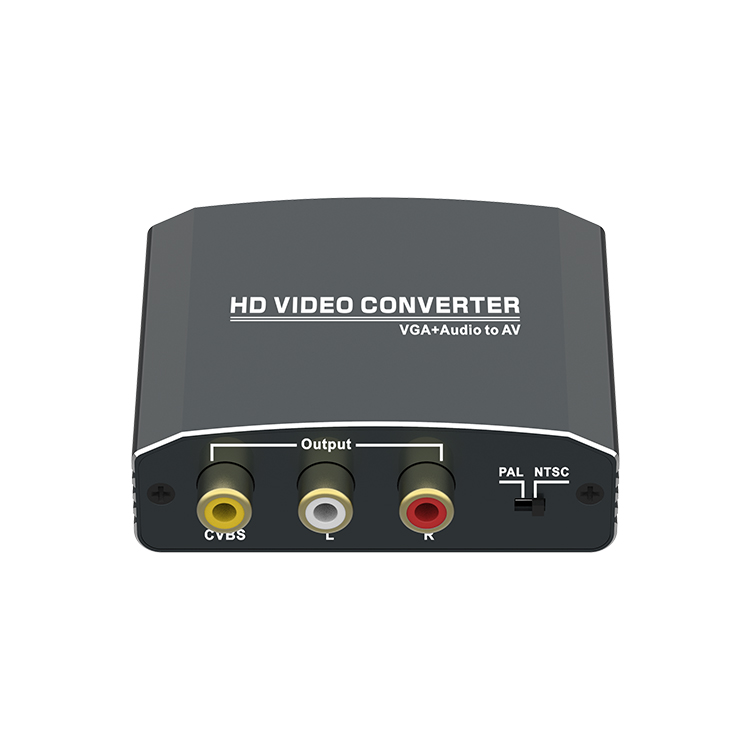

5.0 Panel introduction
Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
VGA----------------------------------------------------------------VGA Input
Stereo------------------------------------------------------------Audio Input
DC/5V------------------------------------------------------DC Power Input
CVBS/L/R---------------------------------------------------------AV Output
PAL/NTSC ------PAL and NTSC standard format selector switch

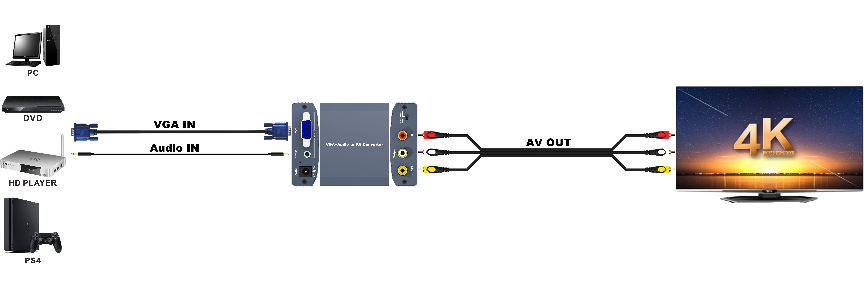

6.0 Connection and operation
Before installation, please make sure all devices you wish to connect
have been turned off.
1.Connect the VGA video and Stereo audio from computer to Converter.(Input
cables are optional)
2.Connect the AV output from to the TV which has AV input.
3.Insert the DC side of 5V power supply into and then connect the AC side of
the power supply into the wall outlet
4.Power on the computer and TV, choose the input of TV to its AV channel.
5.The image does not need to be adjusted, the Converter will position it
automatically, the user may adjust the horizontal position under
some extreme condition.
