1.0 Introduction:

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.

2.0 Features:

1.One HDMI input signal split to Multiple HDMI sink devices(outputs is the RJ45).

2.Fully HDMI 1.3 specification compliant. It is applicable to source device and high definition display device ,such as DVD and  HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.

3.Support high resolutions up to 480i/p,576i/p,720i/p,1080i/p.

4.Support 30/36 dark, extended color space support, including:SYCC601,Adobe RGB,Adobe YCC601.

5.Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.

6.Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.

7.Extend the transmission distance and improve transmission signal.

8.Support EDID Seting.

9.Support 20~60KHz IR working.

10.Support output up to 60metres CAT6 cable.

11.Metal casing design and overall shielding without signal interference.

12.Power supply (please refer to technical parameter).

3.0 Packaging accessories:

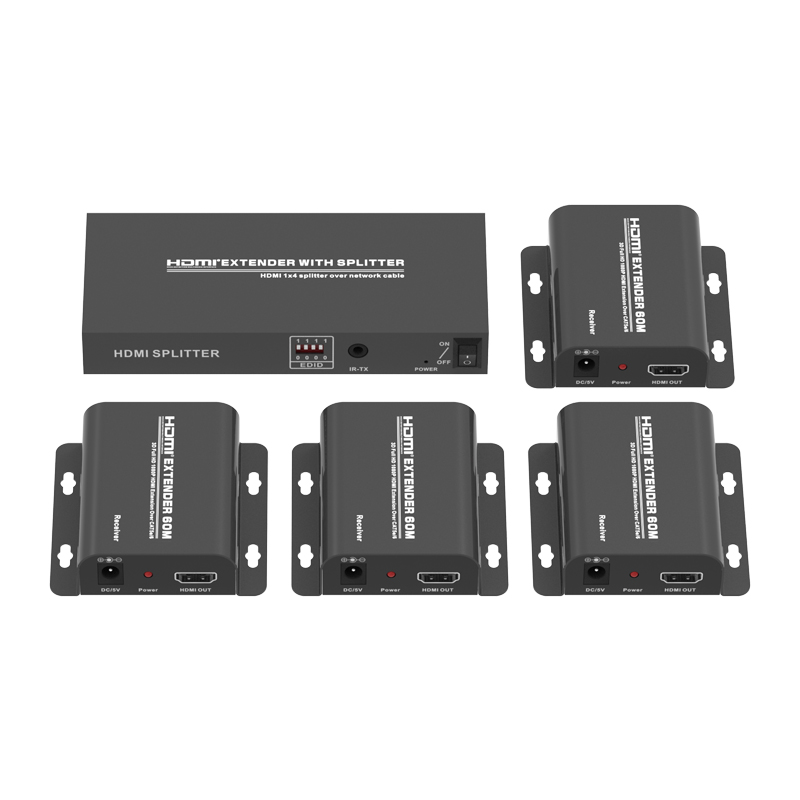

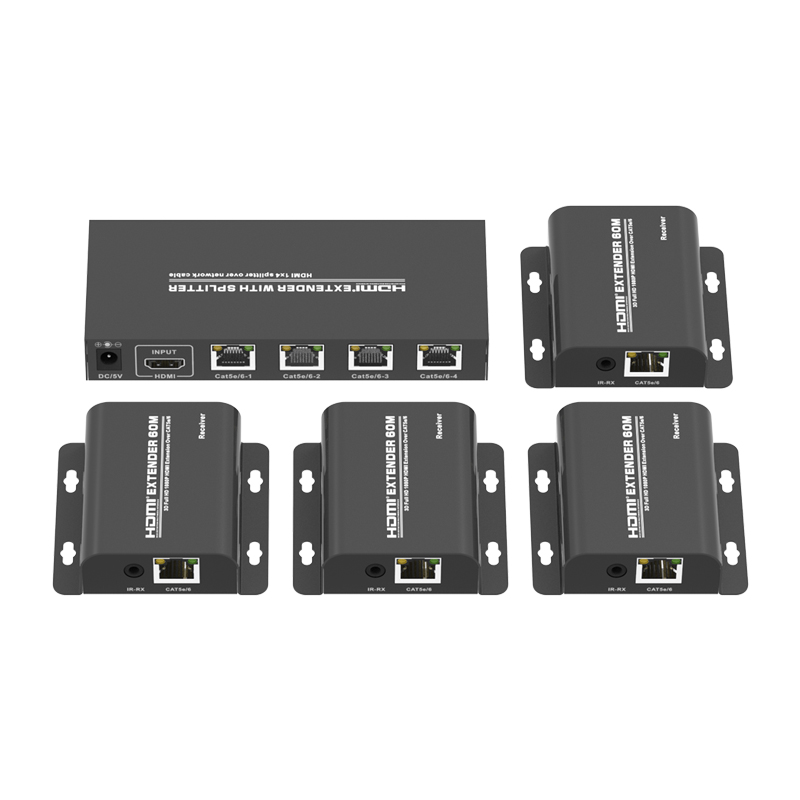

1. HDMI Splitter------------------------------------------------------1 PCS

2. HDMI Receiver--------------------------------------------(2/4/8) PCS

3. DC Power Adaptor ---------------------------------------(3/5/9) PCS

4. IR-TX Cable-------------------------------------------------------1 PCS

5. IR-RX Cable------------------------------------------------(2/4/8) PCS

6. User Manual-------------------------------------------------------1 PCS

4.0 Panel Introduction

( HDMI 1x4 splitter over network cable)

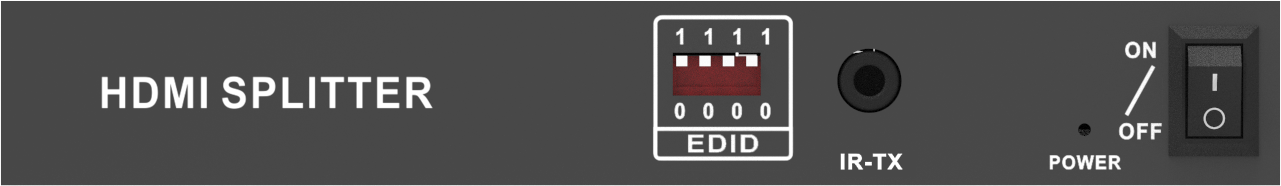

EDID ---------------------------------------------------EDID seting switch

IR-TX ----------------------------------------------------IR transmitter port

Power --------------------------------------------Power status indication

ON/OFF--------------------------------------------------------Power button

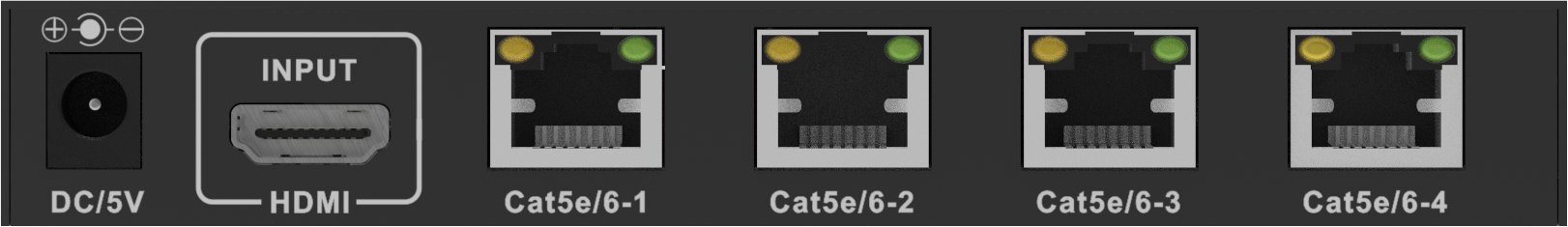

DC/5V ----------------------------------------------------DC 5V Input Port

HDMI INPUT----------------------------------------------HDMI Input Port

Cat5e/6-1-4 -----------------------------Cat5e/1-4: RJ45 Output Ports

5.0 Connection diagram

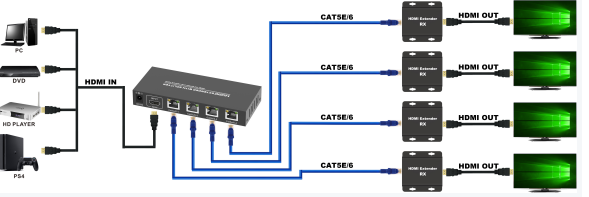

Using splitter and receiver pairing, you can achieve the transmission of HDMI signals to 60 meters, through the Cat5e/6 Cable.

5.01 Connect the HDMI cable between signal source and input port of splitter.

5.02 Connect the Network cable between output port of splitter and receiver.

5.03 Connect the HDMI cable between output port of receiver and HDTV.

5.04 Connect splitter and Receiver power adapter.

5.05 Open the signal source and the power of HDTV, then it works.

6.0 Technical parameters
