1.0 Introduction:
HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
2.0 Features:
1. Fully HDMI 1.4 specification compliant. It is applicable to source device and high definition display device ,such as DVD and HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.
2. Support high resolutions up to including 480i/p,576i/p,720i/p,1080i/p and 4Kx2K@25/30Hz
3. Support 30/36 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601
4. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
5. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
6. Extend the transmission distance and improve transmission signal.
7. Compatible with DVI by using HDMI to DVI adapter.
8. Plug- and -play.
9. Metal casing design and overall shielding without signal interference.
10. Led indicates signal and power mode.
11. Power supply (please refer to technical parameter).
12. Support 3D
3.0 Packaging accessories:
1. HDMI 1×16 Splitter-----------------------------------------------1 Pcs
2. 5V DC Power Adaptor-------------------------------------------1 Pcs
3. User Manual-------------------------------------------------------1 Pcs
4.0 Technical parameters
HDMI Source Input Port-------------------------------------------------------------------1
Display Device Output Port-------------------------------------------------------------16
Source Port Connector----------------------------------------------------19 PIN HDMI
Display Device Port Connector------------------------------------------19 PIN HDMI
HDCP Compliant------------------------------------------------------------------------YES
Single Link Range--------------------------------------------------------------3840x2160
Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P
Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)
Deep Color------------------------------------------------------------------------------48 Bit
HDMI Version-----------------------------------------------------------------------HDMI1.4
Bandwidth---------------------------------------------------------------------Up to 340Mhz
Signal Speed---------------------------------------------------------------Up to 10.2Gbps
The length of input cable------------------------------PS4≤15M；BLUE DVD≤15M
The length of output cable------------------------------------------------------------≤25M
The cable standard------------------------------------------------------26AWG HDMI1.4
Vertical Frequency Range-------------------------------------------------------------60Hz
Power Consumption(max.)------------------------------------------------------17.5Watts
Operation Temperature-------------------------------------------------------------0℃-70℃
Working Voltage-------------------------------------------------------------------------DC 5V
Power Adaptor---------------------------------------------------------------------------5V 3A
Net Weight---------------------------------------------------------------------------------1.3Kg
Dimension: L*W*H(mm)----------------------------------------------------------418x90x25

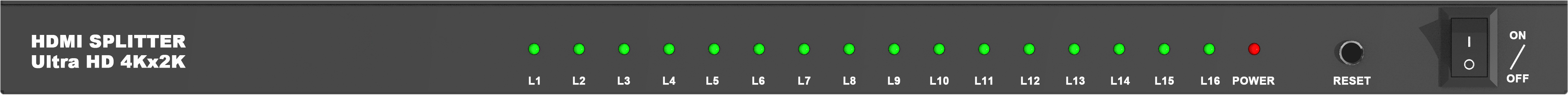

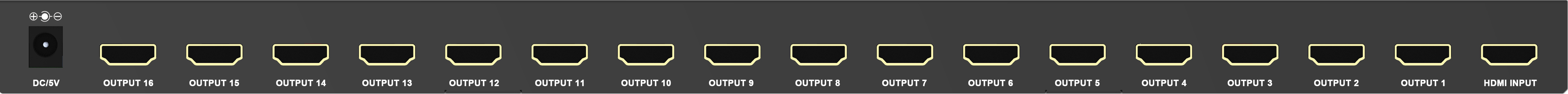

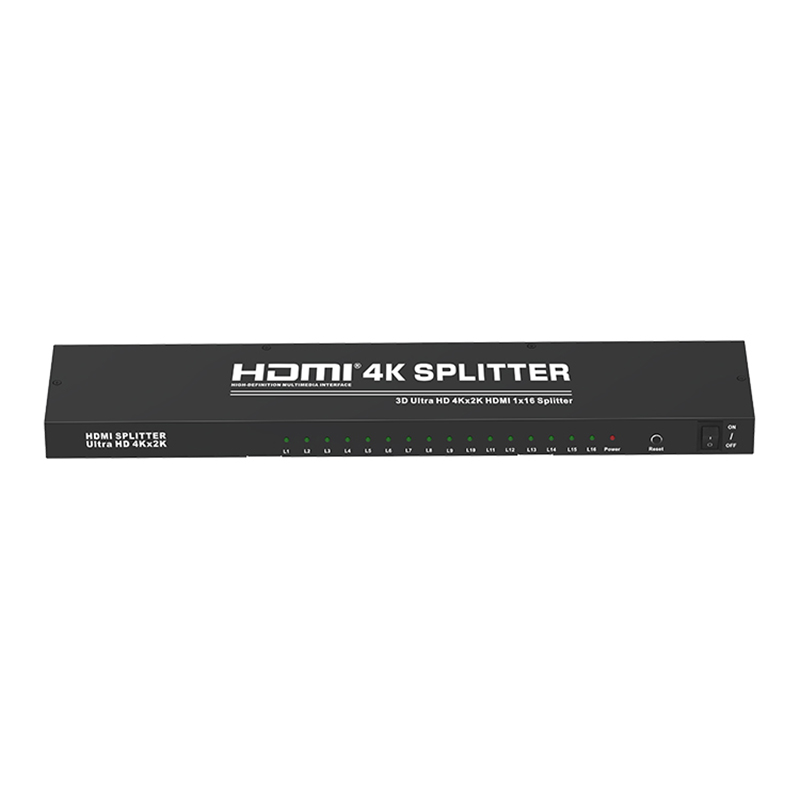

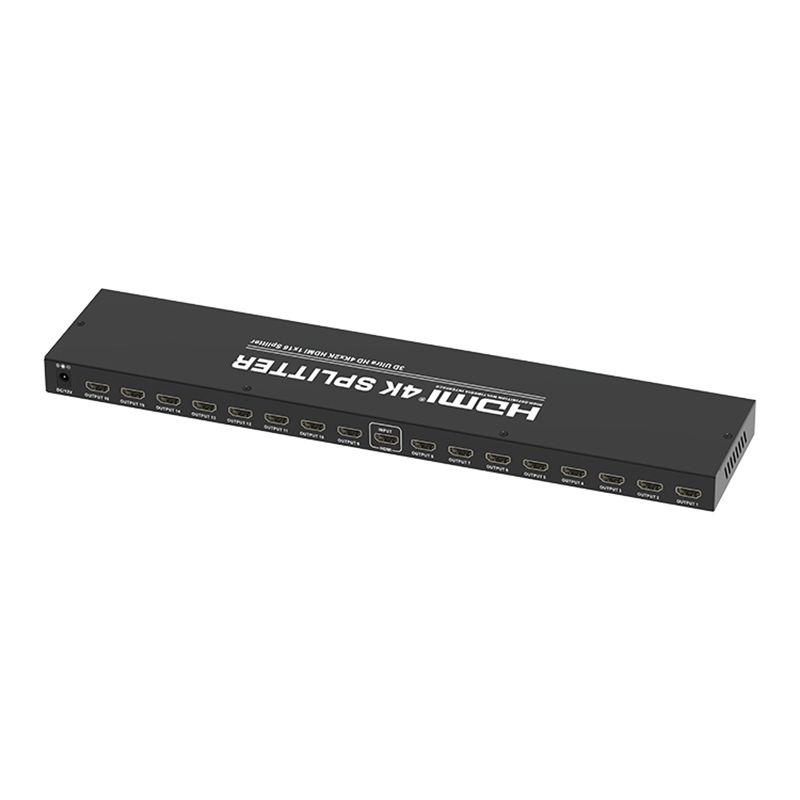

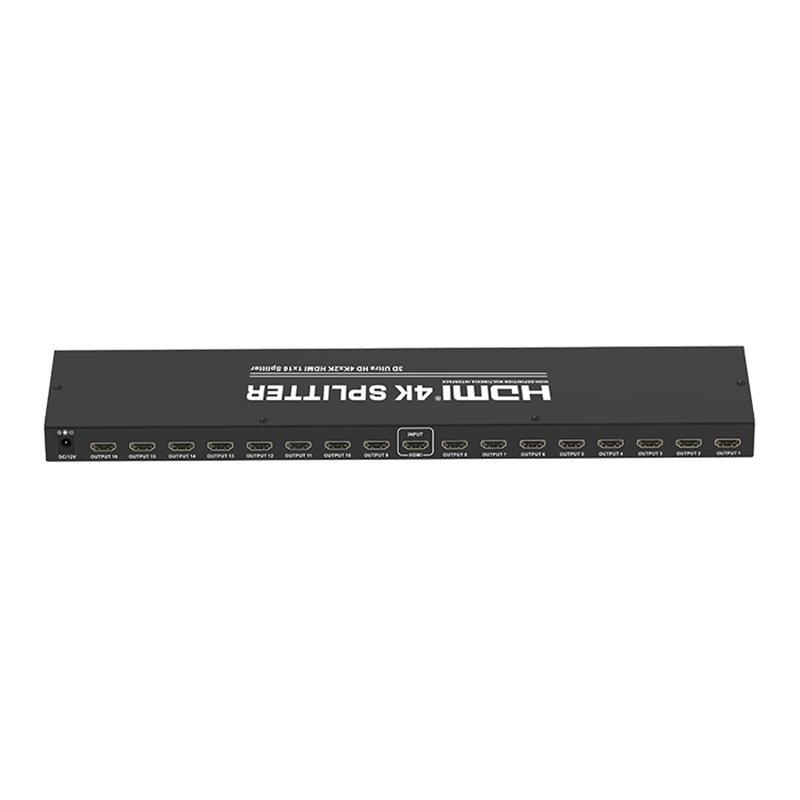

5.0 Panel Introduction
L1-L16------------------------------------------HDMI Input Indicator
Power-------------------------------------------------Power Indicator
Reset-----------------------------------------------------Reset button
ON/OFF-------------------------------------------------Power Switch
DC/5V------------------------------------------------Power Input port
HDMI Output16-1------------------------------HDMI 1-16 outputs
HDMI Input------------------------------------------HDMI Input port

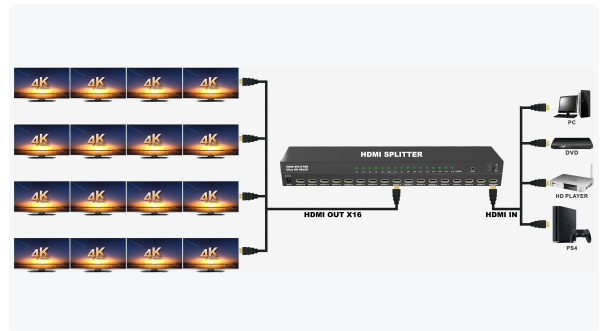

6.0 Connection diagram
Before installation, please make sure all devices you wish to connect have been turned off.
6.01 Connect the HDMI cable between signal source and input port of Splitter.
6.02 Connect the HDMI cable between output port of Splitter and HDTV.
6.03 Connect splitter and power adapter.
6.04 Open the signal source and the power of HDTV, then it works.
