1.0 Introduction:
HDMI Switch/Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
2.0 Features:
1.Fully HDMI 2.0 specification compliant. It is applicable to source device and high definition display device ,such as DVD and HDTV which have HDMI Ports or digital ports and are compliant with HDCP1.1/1.2/1.4/2.2 protocol;
2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,and up to
4k2k@60Hz with 12bit YCBCR 4:4:4;
3. Support 3D frame sequential video format up to 1080p@60;
4. Supports Output simultaneous display at different resolutions;
5. Support Audio Extrator;
6. Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC;
7. Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD;
8. Extend the transmission distance and improve transmission signal;
9. Compatible with DVI by using HDMI to DVI adapter;
10. Metal casing design and overall shielding without signal interference.
3.0 Packaging accessories:
1. HDMI 2×4 Switch/Splitter-------------------------------------1Pcs
2. Remote Control--------------------------------------------------1Pcs
3. 5V DC Power Adaptor------------------------------------------1Pcs
4. User Manual-------------------------------------------------------1Pcs
4.0 Technical parameters
HDMI Source Input Port-------------------------------------------------------------------2
Display Device Output Port---------------------------------------------------------------4
Source Port Connector----------------------------------------------------19 PIN HDMI
Display Device Port Connector------------------------------------------19 PIN HDMI
Output Audio Port---------------------------------------------------------SPDIFx1,R/Lx1
HDCP Compliant------------------------------------------------------------------------YES
Single Link Range--------------------------------------------------------------3840x2160
Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P
Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)
Deep Color------------------------------------------------------------------------------48 Bit
HDMI Version-----------------------------------------------------------------------HDMI2.0
Bandwidth---------------------------------------------------------------------Up to 600Mhz
Signal Speed-----------------------------------------------------------------Up to 18Gbps
The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M
The length of output cable------------------------------------------------------------≤10M
The cable standard------------------------------------------------------28AWG HDMI2.0
Vertical Frequency Range-------------------------------------------------------------60Hz
Power Consumption(max.)--------------------------------------------------------4.5Watts
Operation Temperature-------------------------------------------------------------0℃-70℃
Working Voltage-------------------------------------------------------------------------DC 5V
Power Adaptor---------------------------------------------------------------------------5V 1A
Net Weight-------------------------------------------------------------------------------0.25kg
Dimension: L*W*H(mm)---------------------------------------------------------149x64x25

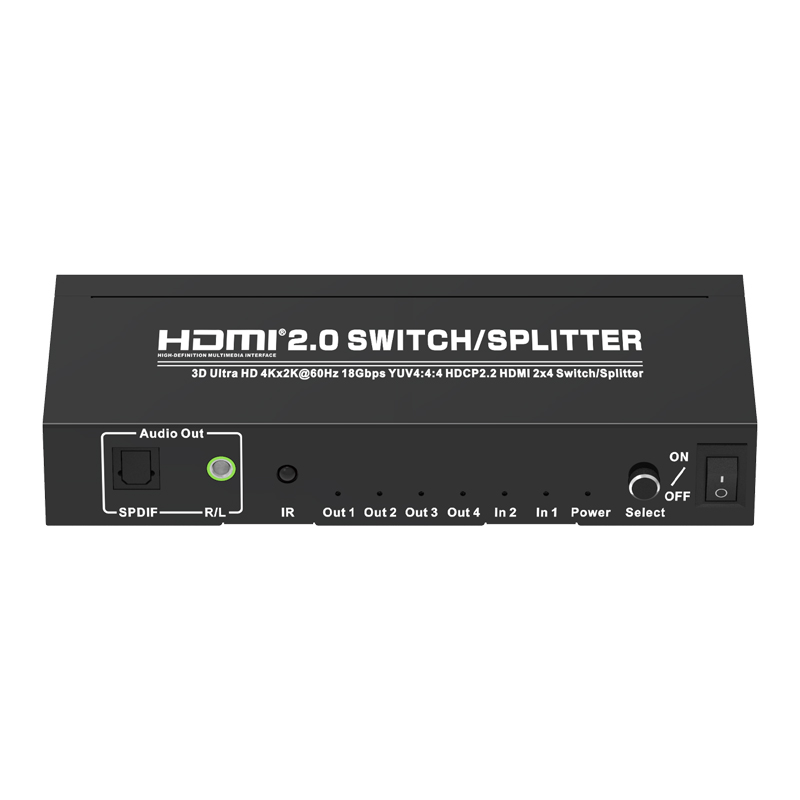

5.0 Panel Introduction
SPDIF ---------------------------------------Digital Audio Output Port
R/L ------------------------------------------Analog Audio Output Port
IR --------------------------------------------------------IR Receiver Port
Out1-4--------------------------------------------------Output1-4 Status
In1-2------------------------------------------------------Input1-2 Status
Power ------------------------------------------------------Power Status
Select ------------------------------------------------Input select button
ON/OFF ----------------------------------------------------Power button

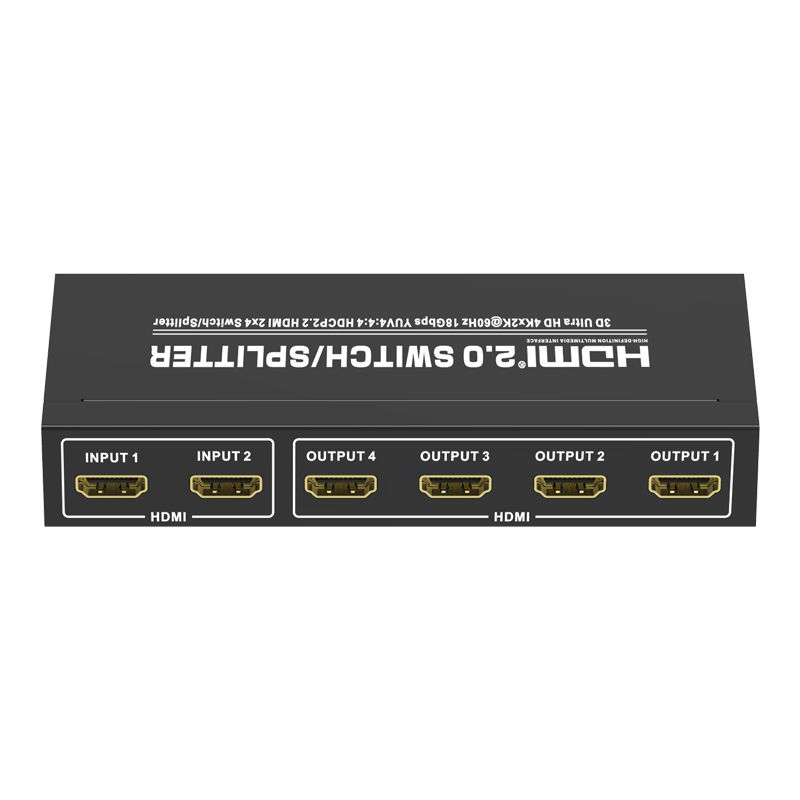

HDMI Input1-2----------------------------------HDMI Input1-2 Ports
HDMI Output1-4-----------------------------HDMI Output1-4 Ports
DC5V---------------------------------------------DC Power Input Port

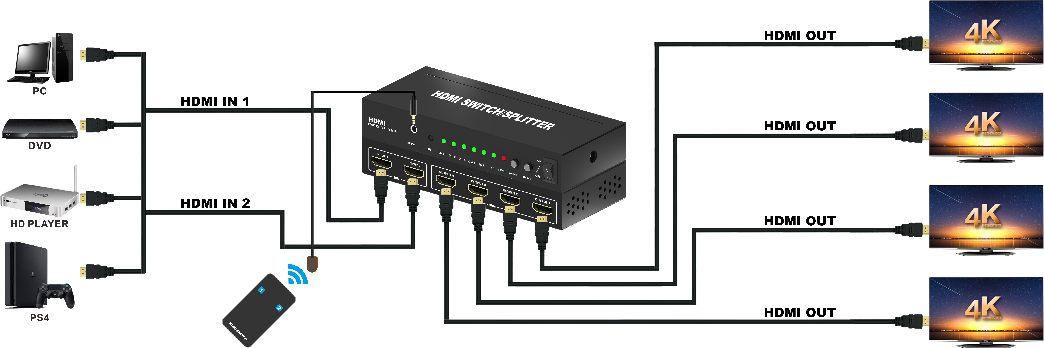

6.0 Connection diagram
6.01 Connect the HDMI cable between signal source and input port of Splitter.
6.02 Connect the HDMI cable between output port of Splitter and HDTV.
6.03 Connect splitter and power adapter.
6.04 Open the signal source and the power of HDTV, then it works.
6.05 Use the remote control or toggle button to select the source you want.
