1.0 INTRODUCTION

HDMI Matrix is a perfect matrix product with detached external audio output ports, which can connect 2 different HDMI signal sources and 2 displays. It can easily switch any of 2 input signals to 2 displays by using remote control or pushing button. The output signals can be same or different. By using this product can avoid the need to disconnect and reconnect signal sources to displays frequently. It can smartly select input signal sources with priority order and jump over those input signal sources which are not in work. It can optimize your home theatre system to the best effect.

2.0 FEATURES

1. Support display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz

2. 3D HDMI 1.4a video format support.

3. 3D video support including Frame packing for all 3D formats up to a 297MHz TMDS clock.

4. Supports deep color up to 48-bit per pixel.

5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).

6. Supports the reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR

7. Full colorimetry including sYCC601,Adobe RGB,Adobe YCC601,xvYCC extended gamut color

8. Operates for TMDS clock frequencies up to 340MHz

9. Supports EDID control via EDID Selector.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1.HDMI 2X2 Matrix ---------------------1PCS

2.DC 5V Power adapter----------------1PCS

3.Remote control-------------------------1PCS

4.User Manual----------------------------1PCS

4.0 TECHNICAL PARAMETERS

Explanation: With different brands of the input or output device, the length of the connecting cables will differ too.

5.0 PANEL DESCRIPTIONS

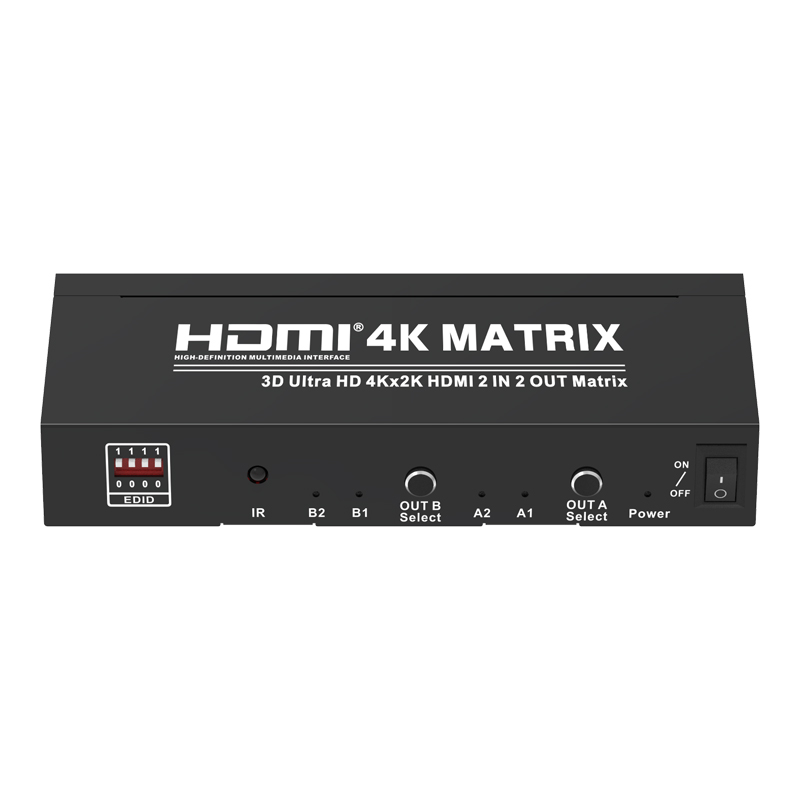

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

EDID -----------------------------------EDID selector button

IR ----------------------------------------------------IR receiver

B2~B1 ---------------------------------------Output B Status

OUT B Select ------------------------------Output B Select

A2~A1 ---------------------------------------Output A Status

OUT A Select ------------------------------Output A Select

Power -------------------------------------------Power Status

ON/OFF ----------------------------------------Power switch

DC/5V --------------------------------------------Power Input

HDMI Input1~2 --------------------------HDMI Input ports

HDMI Output A~B --------------------HDMI Output ports

SPDIF ---------------------------------Digital Audio Output

Stereo --------------------------------Analog Audio Output

6.0 CONNECTION DIAGRAM

Before installation, please make sure all devices you wish to connect have been turned off.

6.01Connect the HDMI from source(DVD, HD Player,PC) to matrix.(Input

cables are optional).

6.02Connect the HDMI output from to the TV which has HDMI input.

6.03Insert the DC side of 5V power supply into and then connect the AC

side of the power supply into the wall outlet.

6.04Power on the source and TV, choose the input of TV to its HDMI

channel.

6.05The image does not need to be adjusted, the matrix will position it

automatically, the user may adjust the horizontal position under

some extreme condition.

6.06Select the working mode of the matrix via the remote control or

panel button.
