1.0 INTRODUCTION

HDMI Matrix is a perfect matrix product with detached external audio output ports, which can connect 6 different HDMI signal sources and 2 displays. It can easily switch any of 6 input signals to 2 displays by using remote control or pushing button. The output signals can be same or different. By using this product can avoid the need to disconnect and reconnect signal sources to displays frequently. It can smartly select input signal sources with priority order and jump over those input signal sources which are not in work. It can optimize your home theatre system to the best effect.

2.0 FEATURES

1.When its 6 input ports are separately connected to 6 signal sources

with HDMI cables, the HDMI Matrix automatically recognizes the last

connected port and switches its input signal to 2 displays.

2.The needed input signal sources must be selected by using remote

control or pushing button in order to make 2 displays showing 2 different

signals.

3.Support HDMI 1.4,HDCP1.4;

4. Support high resolutions up to 4Kx2K, including 480i/p, 576i/p,

720i/p, 1080i and 1080p,3840x2160@25/30Hz.

5. Switch easily between any 6 HDMI sources.

6. The 2 displays can get the same or different signals without mutual

interaction.

7. Connected easily to dual-channel audio receiver device.

8. Support DVI device with DVI to HDMI adapter.

9. Plug-and-play and no need of setting.

10. Metal casing design and overall shielding without signal interference.

11. Use remote control or push button to freely select input source.

12. LED indicates signal /power mode.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1.HDMI 6X2 Matrix ---------------------1PCS

2.DC 5V Power adapter----------------1PCS

3.Remote control-------------------------1PCS

4.User Manual----------------------------1PCS

4.0 TECHNICAL PARAMETERS

Explanation: With different brands of the input or output device, the length of the connecting cables will differ too.

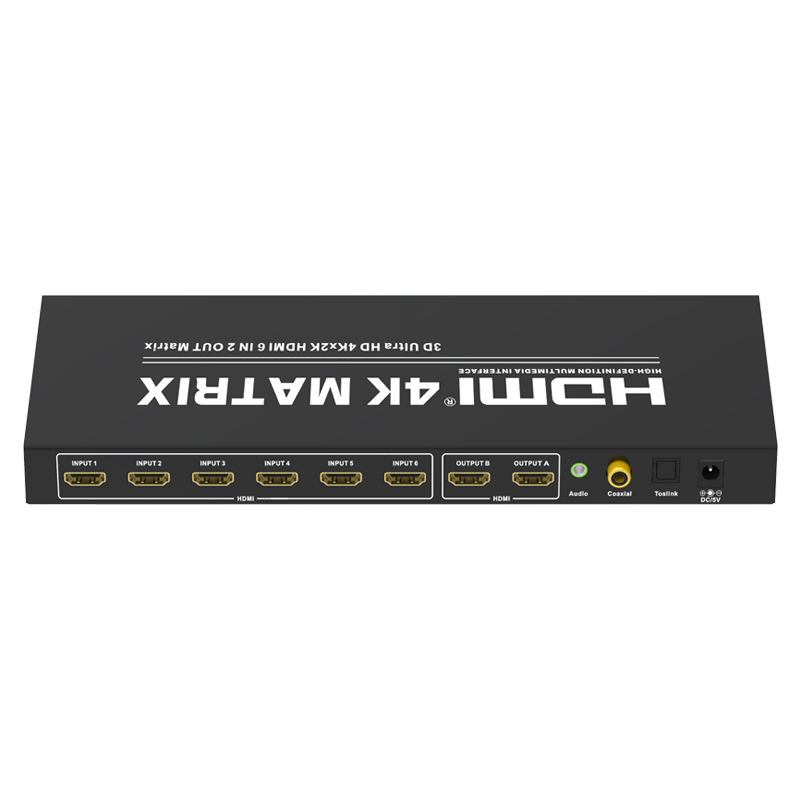

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

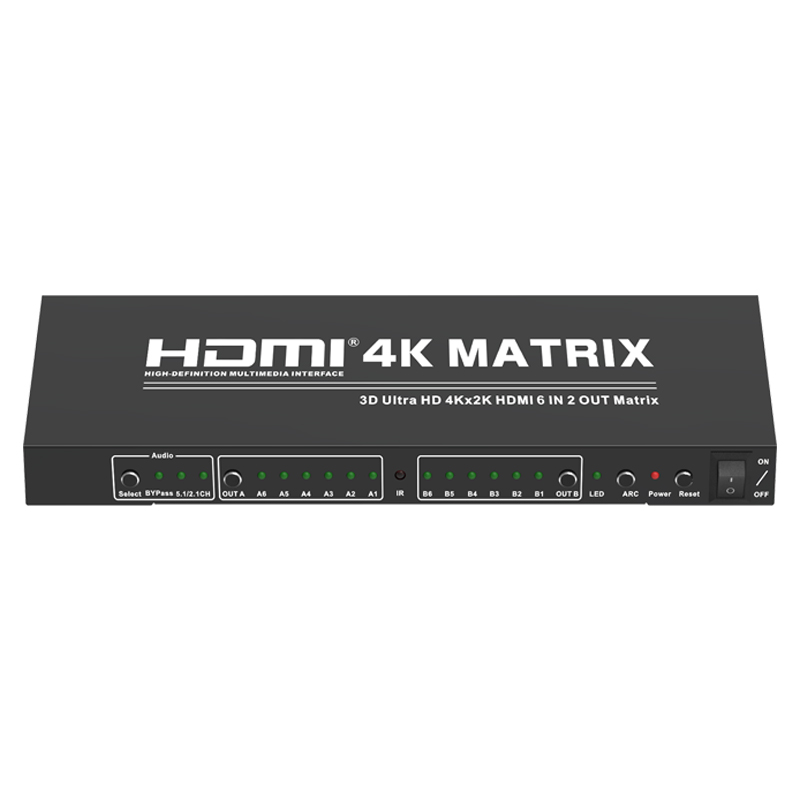

Audio Select ------------------------------------Audio output select

OUT B -----------------------------------------------------Out B select

IR Signal -----------------------------------Remote control receiver

OUT A ------------------------------------------------------Out A select

LED ---------------------------------------------------ARC Status LED

ARC ----------------------------------------------------------ARC select

Power ------------------------------------------------------Power status

Reset -------------------------------------------------------Reset button

ON/OFF ---------------------------------------------------Power button

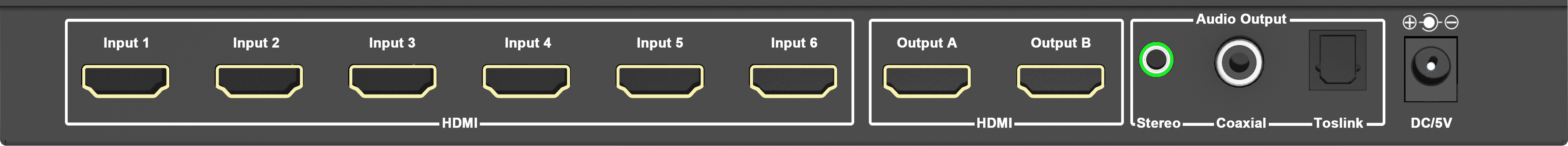

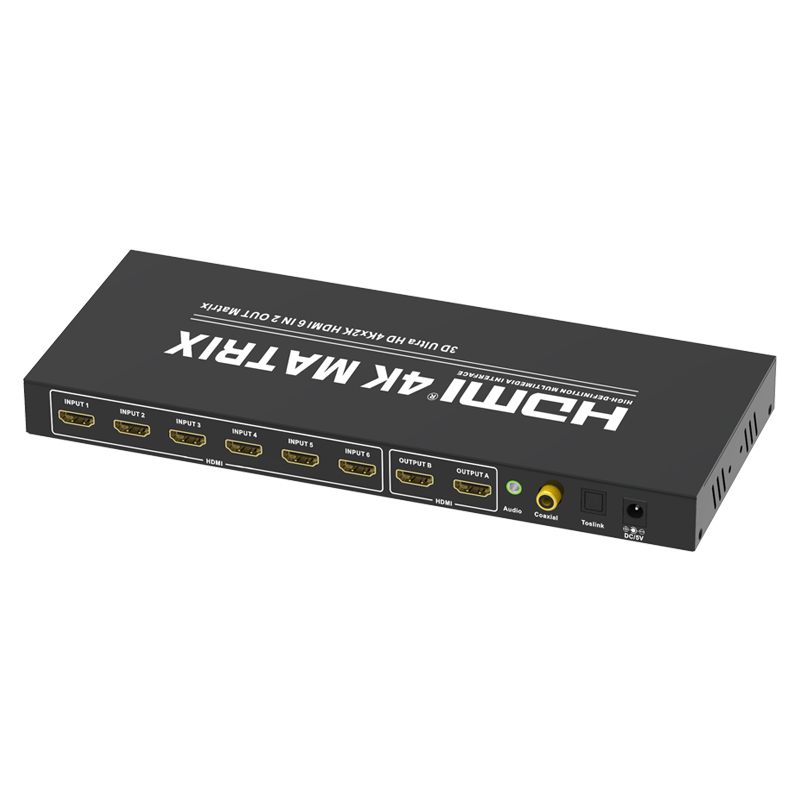

HDMI INPUT1-6-----------------------------------HDMI Input ports

HDMI OUTPUT A-B ---------------------------HDMI Output Ports

Stereo ------------------------------------------ Analog audio output

Coaxial --------------------------------Coaxial Digital audio output

Toslink ----------------------------------Toslink Digital audio output

DC/5V--------------------------------------------DC Power input port

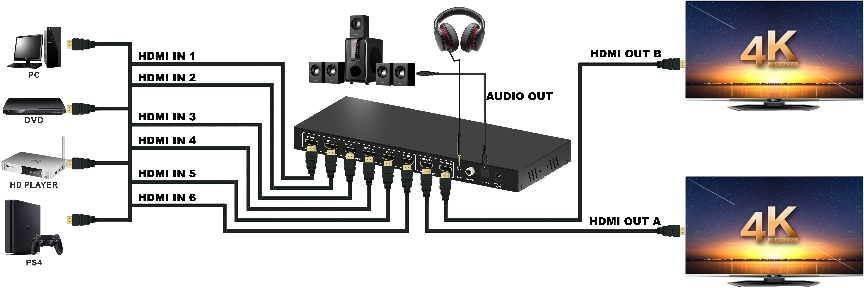

6.0 CONNECTION DIAGRAM

Before installation, please make sure all devices you wish to connect have been turned off.

6.01Connect the HDMI from source(DVD, HD Player,PC) to matrix.(Input

cables are optional).

6.02Connect the HDMI output from to the TV which has HDMI input.

6.03Insert the DC side of 5V power supply into and then connect the AC

side of the power supply into the wall outlet.

6.04Power on the source and TV, choose the input of TV to its HDMI

channel.

6.05The image does not need to be adjusted, the matrix will position it

automatically, the user may adjust the horizontal position under

some extreme condition.

6.06Select the working mode of the matrix via the remote control or

panel button.
