1.0 Introduction:

HDMI Switch is a product that can switch multi-group HDMI signals to one high definition display device such as HDTV by using manual push button.That  can avoid plugging and unplugging cables frequently. It can optimize your home theatre system to the best effect.

2.0 Features:

1.Compliant with HDMI2.0, HDCP2.2 and DVI 1.0.

2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,

and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.

3.Support 3D frame sequential video format up to 1080p@60.

4.Support high resolution VESA mode video format up to QSXGA@60Hz.

5.Support HDR and 18Gbps Signal Speed.

6.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.

7.Compatible with DVI by using HDMI to DVI adapter.

8.Extend the transmission distance and improve transmission signal.

9.Metal casing design and overall shielding without signal interference.

3.0 Packaging accessories:

1. HDMI Switch-------------------------------------------------------1 Pcs

2. User Manual-------------------------------------------------------1 Pcs

4.0 Technical parameters

HDCP Compliant------------------------------------------------------------------------YES

Single Link Range--------------------------------------------------------------4096x2160

Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P

Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)

Deep Color------------------------------------------------------------------------------48 bit

HDMI Version-----------------------------------------------------------------------HDMI2.0

Bandwidth---------------------------------------------------------------------Up to 600Mhz

Signal Speed-----------------------------------------------------------------Up to 18Gbps

The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M

The length of output cable-----------------------------------------------------------≤10M

The cable standard-----------------------------------------------------28AWG HDMI2.0

Vertical Frequency Range------------------------------------------------------------60Hz

Power Consumption(max.)-------------------------------------------------------0.5Watts

Operation Temperature-----------------------------------------------------------0℃-70℃

Net Weight------------------------------------------------------------------------------0.03Kg

Dimension: L*W*H(mm)-----------------------------------------------------53.9x52x15.4

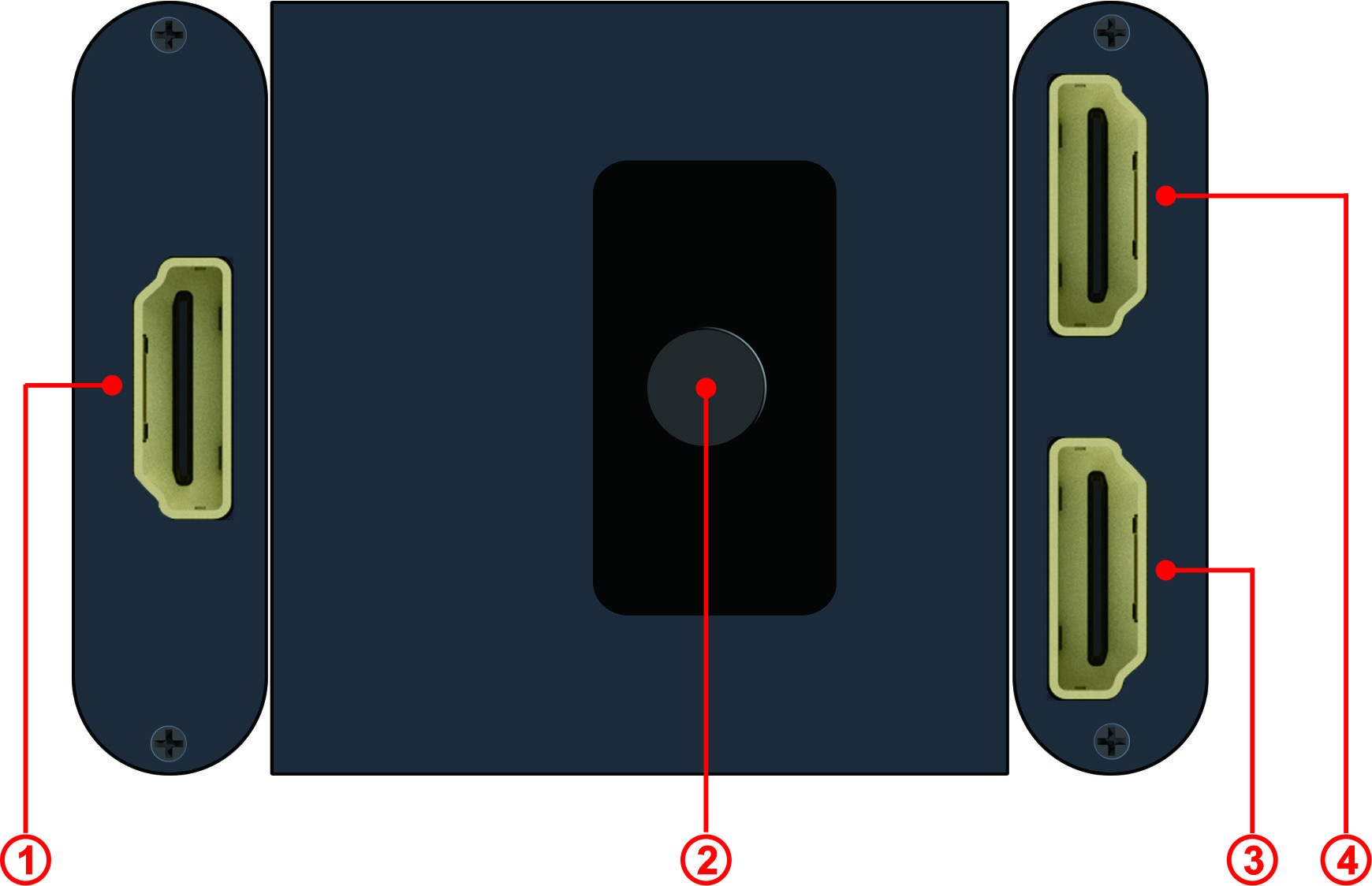

5.0 Panel Introduction

When HDMI 1x2 splitter is using, 1 is input

When HDMI 2x1 switcher is using, 1 is output

2.Switch Button

When HDMI 1x2 splitter is using, 3/4 is output

When HDMI 2x1 switcher is using, 3/4 is input

6.0 Connection diagram

Before installation, please make sure all devices you wish to connect have been turned off.

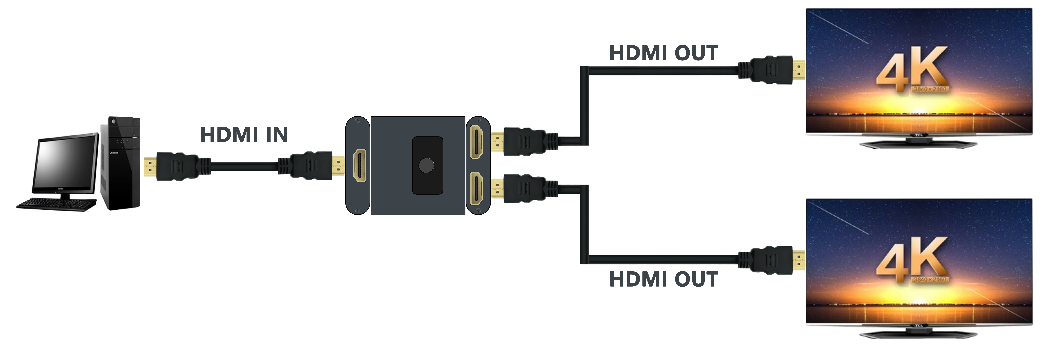

Application 1: HDMI 1x2 Splitter

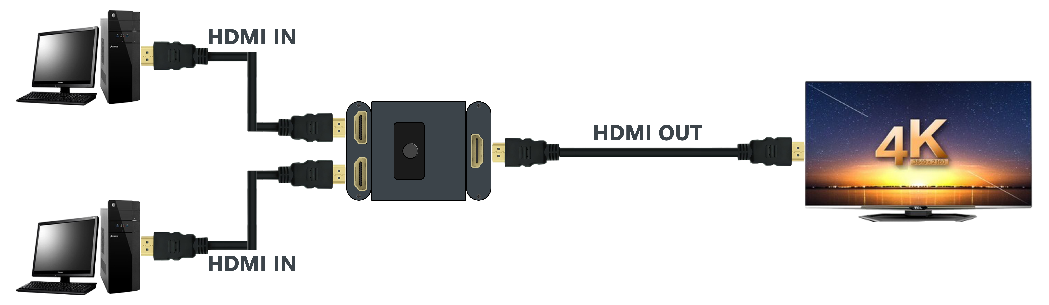

Application 2: HDMI 2x1 Switcher

6.01 Connect the HDMI cable between signal source and input port of product.

6.02 Connect the HDMI cable between output port of product and HDTV.

6.04 Open the signal source and the power of HDTV, then it works.
