1.0 INTRODUCTION
This kind of HDMI to VGA and Audio Converter converts. HDMI signal into analog VGA video and audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional VGA monitors or projectors. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 FEATURES
1. No need to install drivers, portable, flexible, plug and play;
2. Provide advanced signal processing with great precision, colors, resolutions, and details;
3. Support Max HDMI 1080p@60Hz or 1920x1200 input;
4. Support VGA 1080P or 720p output；
5. No power supply, USB-powered mode.
3.0 PACKAGE CONTENTS

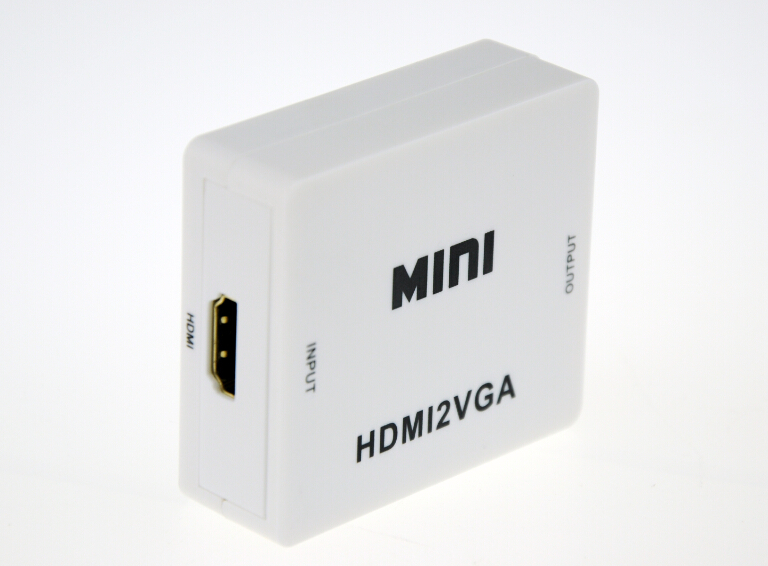

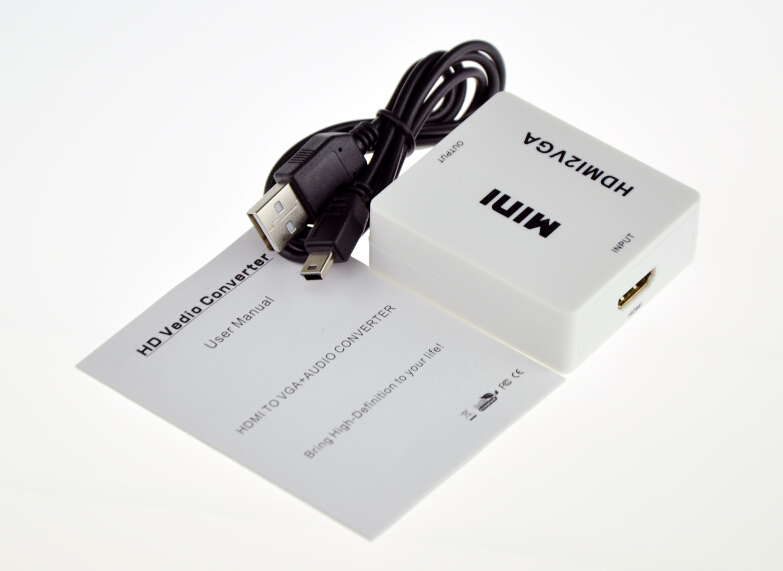

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

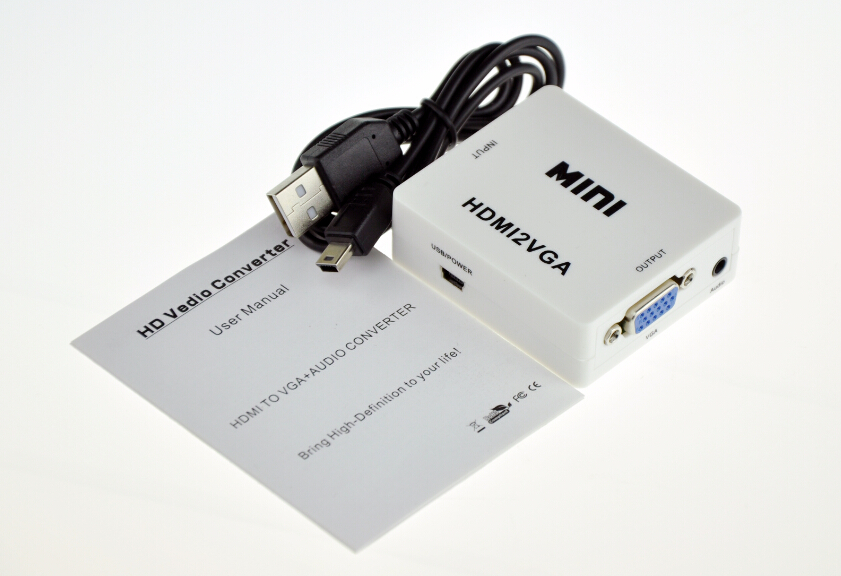

1) Main unit (HDMI to VGA Converter)-------------1PCS
2) USB Cable or 5V 1A Power adapter-------------1PCS
3) User Manual-------------------------------------------1PCS
4.0 SPECIFICATIONS
1. Input port: HDMI A TYPE；
2. Output ports: 1xVGA、1xAudio；
3. Dimensions (mm): 60.5(L) x55(W) x20(H)；
4. Wight (g): 40；
5. HDMI input: Max 1080P@60Hz；
6. VGA output: 1080p60Hz, 720p/60Hz.
5.0 PANEL DESCRIPTIONS

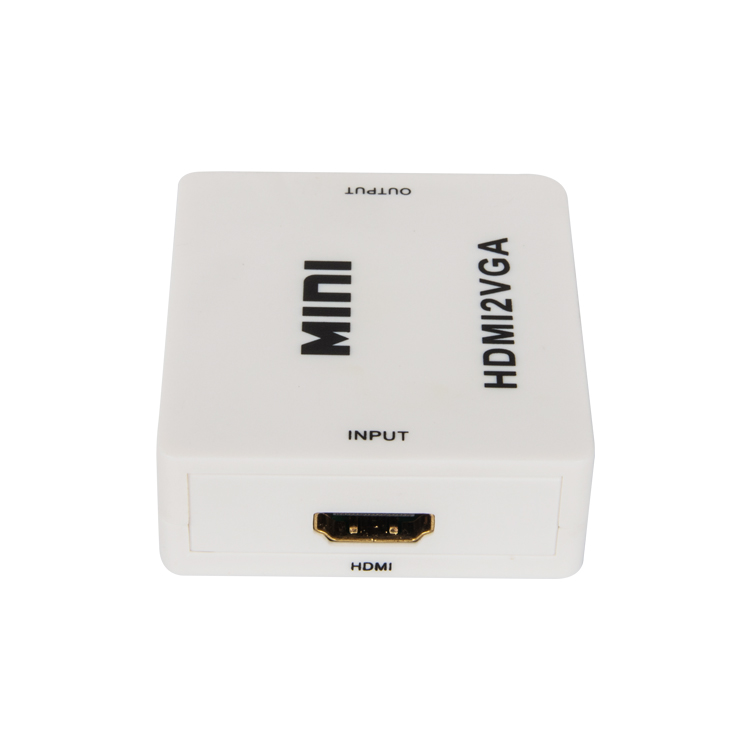

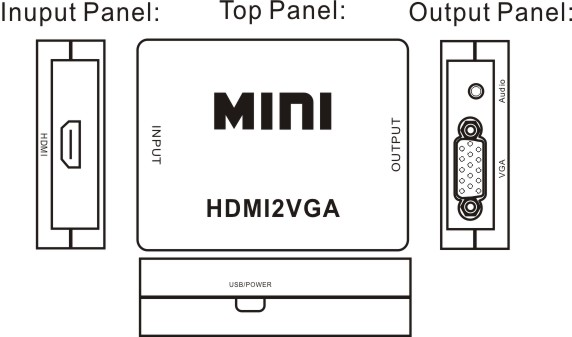

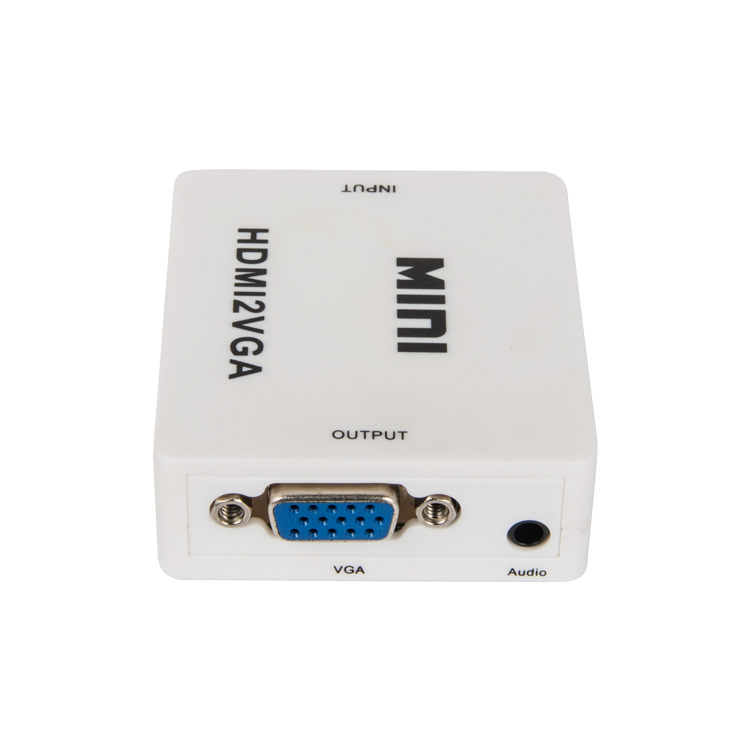

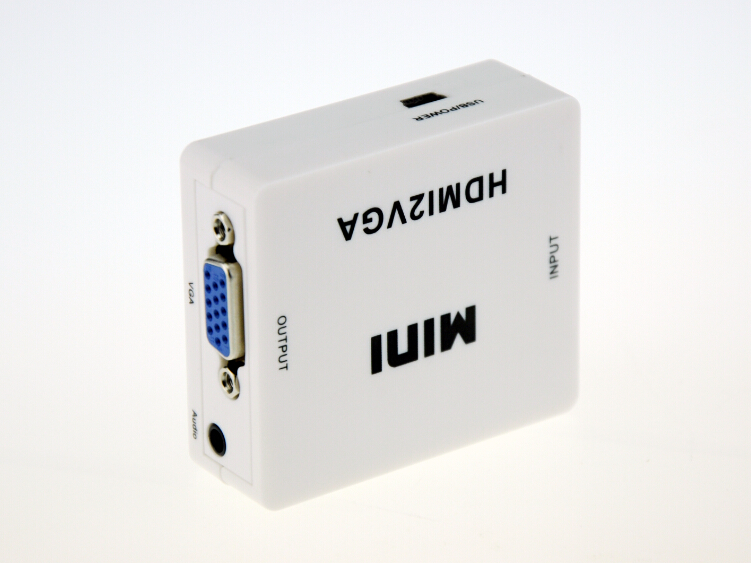

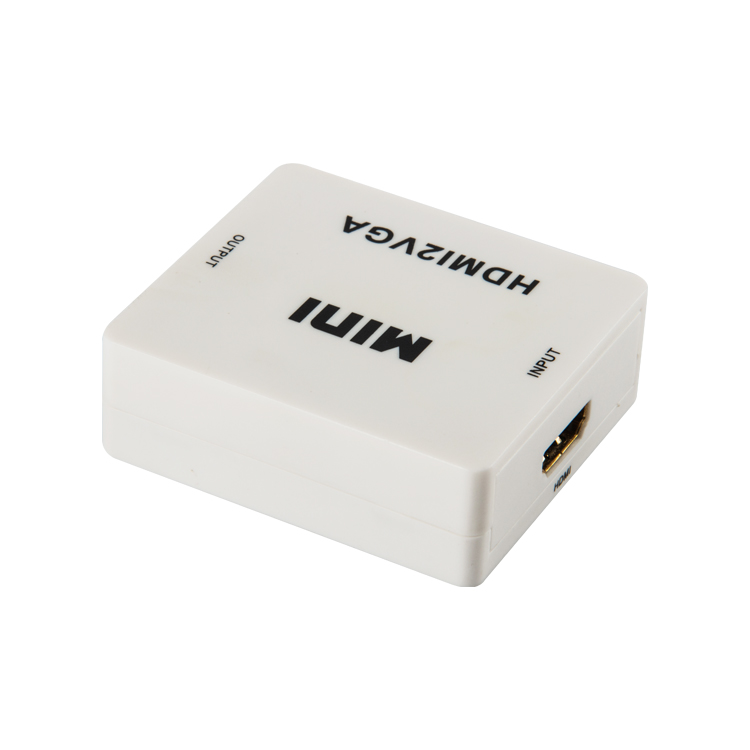

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.
HDMI ---------------------HDMI signal input
USB POWER ------------USB power input
VGA -------------------------------VGA output
Audio ----------------------------Audio output

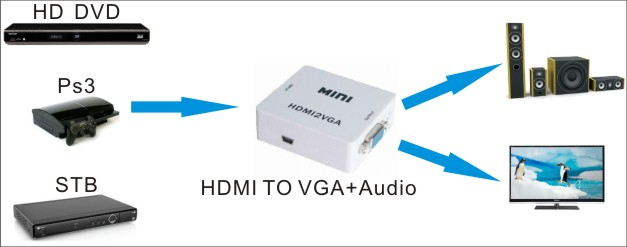

6.0 CONNECTION DIAGRAM
