1.0 INTRODUCTION

This kind of the Converter is a VGA video and audio converter. It converts VGA input and audio into HDMI to allow PC users to show their image not only on the PC’s monitor, but could also on TV, to have a large display. The conversion is along with the audio. Converter offers solutions for digital entertainment center, HDTV retail and  show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

2.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Provide advanced signal processing with great precision,

colors, resolutions, and details;

3. Support Max VGA 1080p@60Hz or 1920x1200 input;

4. Support HDMI 1080P or 720p output；

5.No power supply, USB-powered mode.

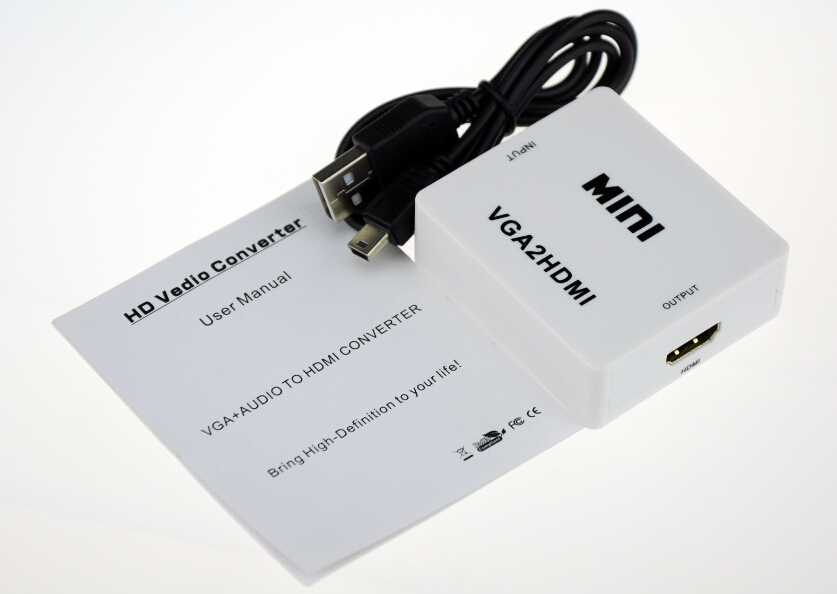

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

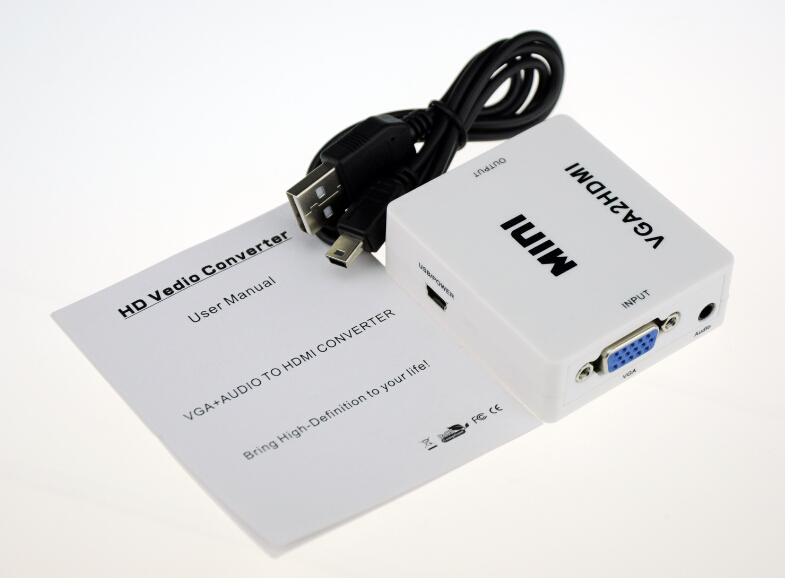

1) Main unit (VGA TO HDMI Converter)-------------1PCS

2) USB Cable or 5V 1A Power adapter--------------1PCS

3) User Manual---------------------------------------------1PCS

4.0 SPECIFICATIONS

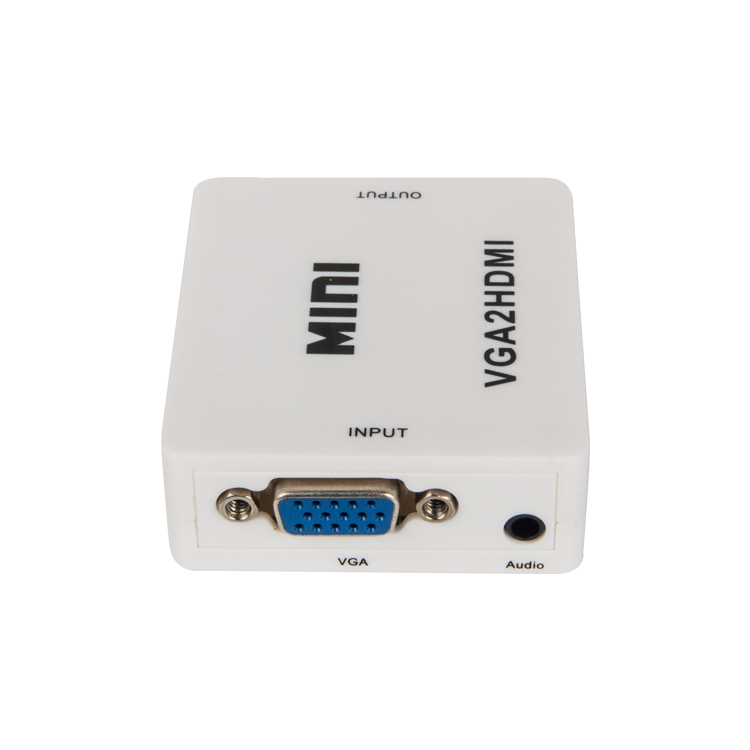

1. Input port: 1xVGA、1xAudio；

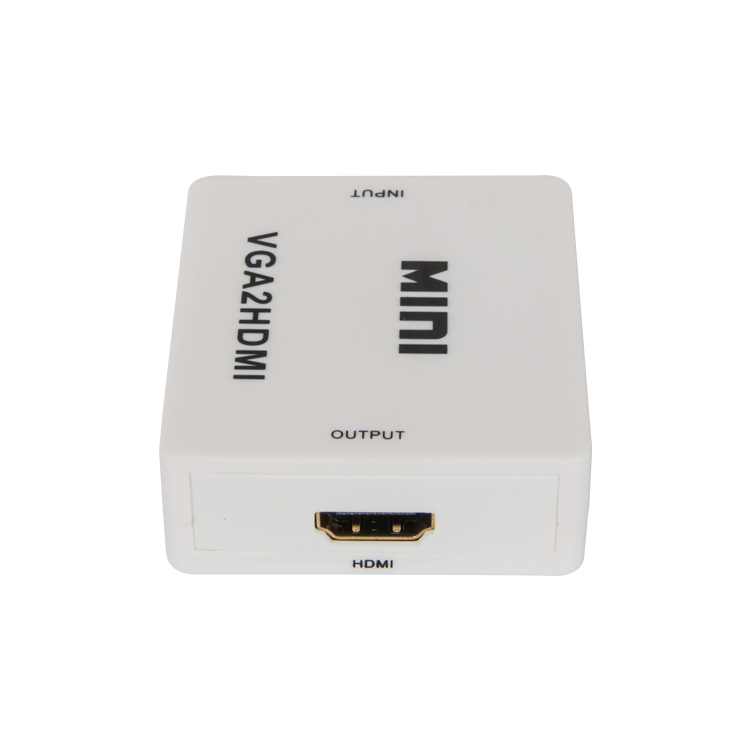

2. Output ports: HDMI A TYPE；

3. Dimensions (mm): 60.5(L) x55(W) x20(H)；

4. Wight (g): 40；

5. VGA input: Max 1080P@60Hz；

6. HDMI output: 1080p60Hz, 720p/60Hz.

5.0 PANEL DESCRIPTIONS

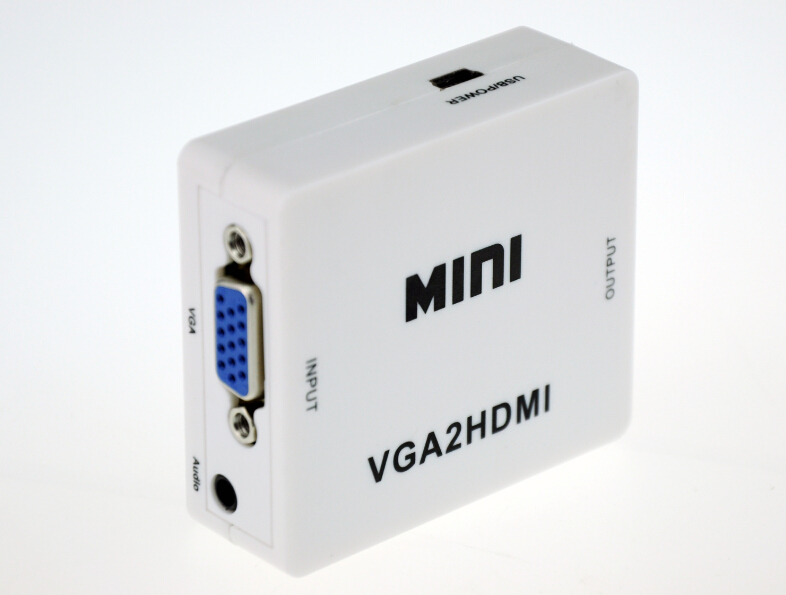

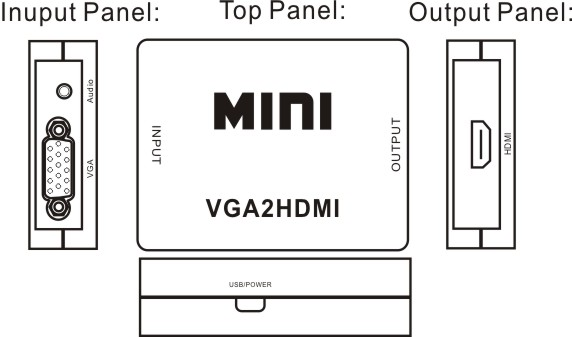

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

VGA ---------------------------------VGA input

Audio ------------------------------Audio input

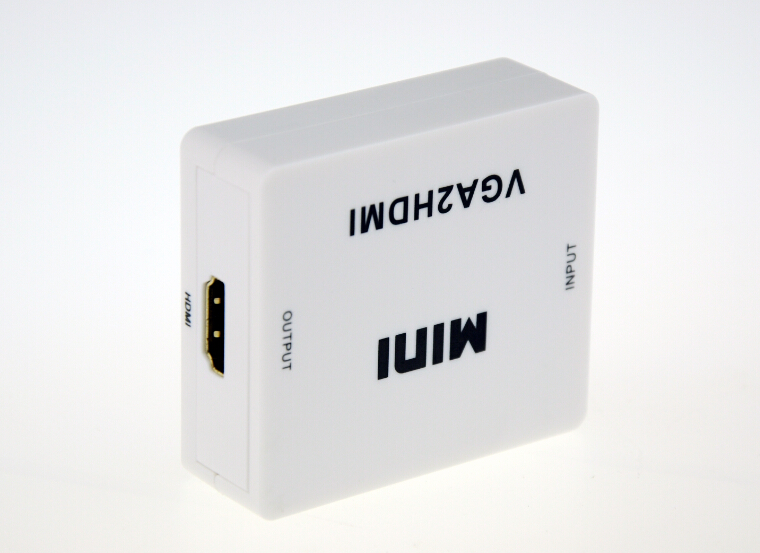

HDMI --------------------HDMI signal output

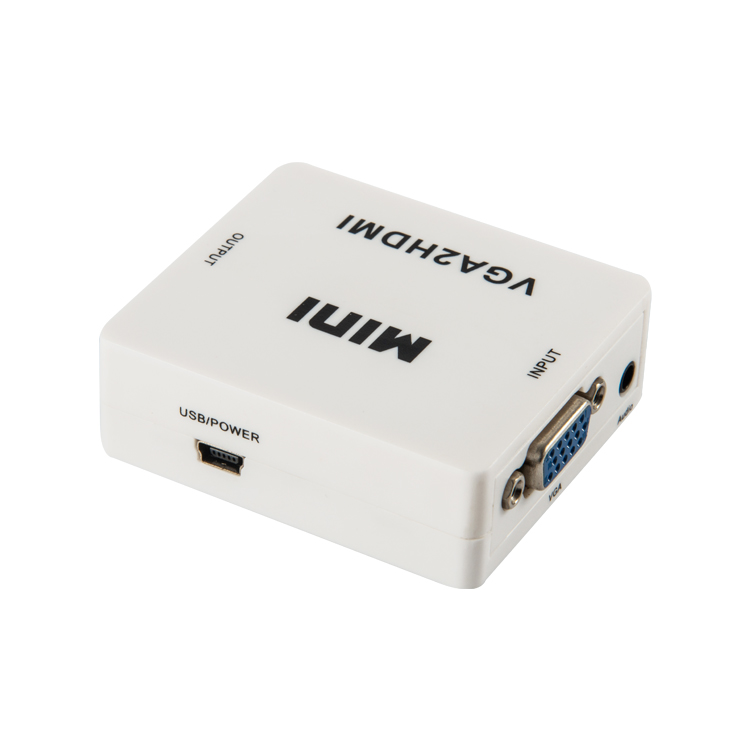

USB POWER ------------USB power input

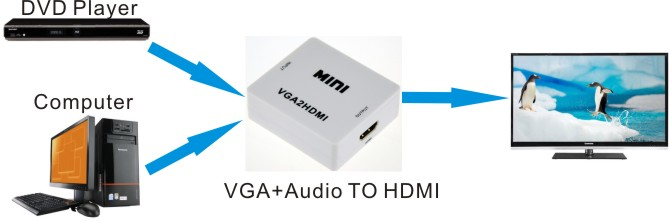

6.0 CONNECTION DIAGRAM
