MINI CVBS TO HDMI Converter Price:¥

Online inquiry
Detailed content

1.0 INTRODUCTION

The MINI AV TO HDMI converter is a universal converter for analog composite input to HDMI 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.



2.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Provide advanced signal processing with great precision,

  colors, resolutions, and details;

3. Support PAL, NTSC3.58, NTSC4.43, SECAM,PAL/M, PAL/N

  standard TV formats input;

4. Support HDMI 1080p or 720p output.

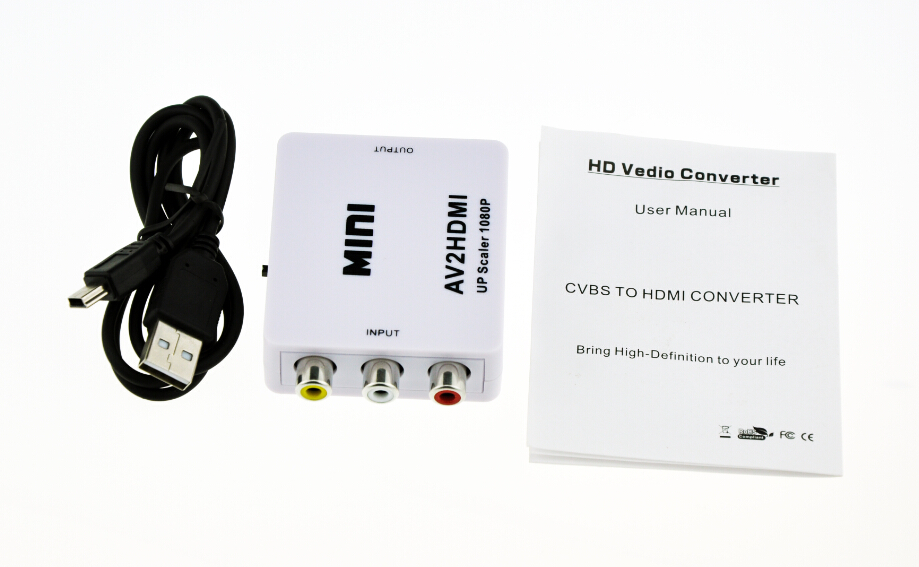

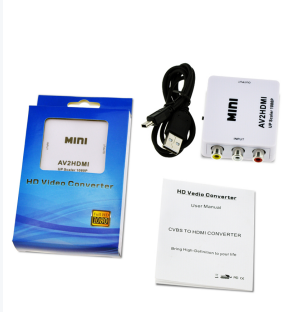

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1) Main unit (AV TO HDMI Converter)-------------1PCS

2) USB Cable---------------------------------------------1PCS

3) User Manual-------------------------------------------1PCS





4.0 SPECIFICATIONS

1. Input ports:3xRCA (Yellow, White, Red);

2. Output port: 1xHDMI;

3. Dimensions (mm): 66(D) x55(W) x20(H);

4. Wight (g): 40;

5. Composite input: PAL, NTSC3.58, NTSC4.43,SECAM,

  PAL/M,PAL/N;

6. HDMI output: 1080p60Hz, 720p/60Hz.



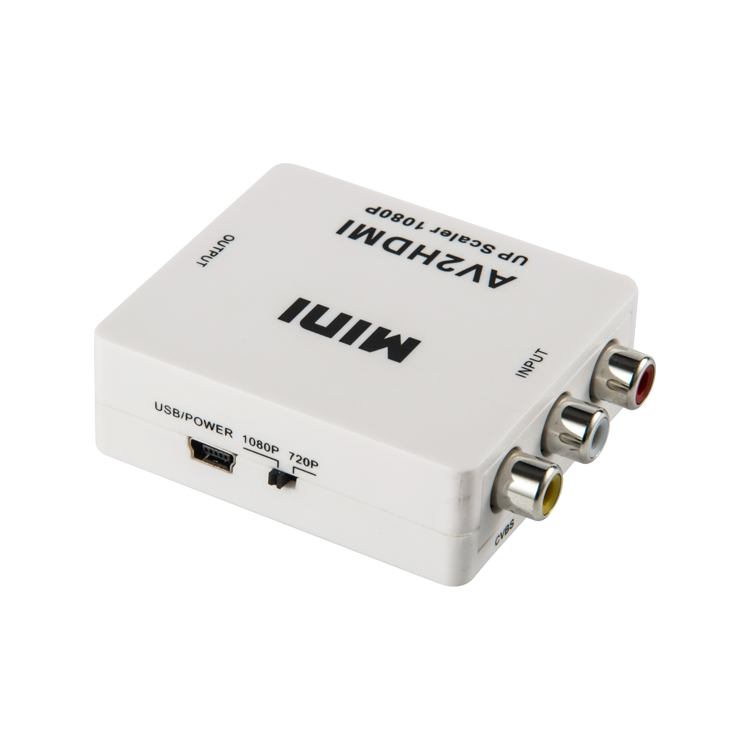

5.0 PANEL DESCRIPTIONS

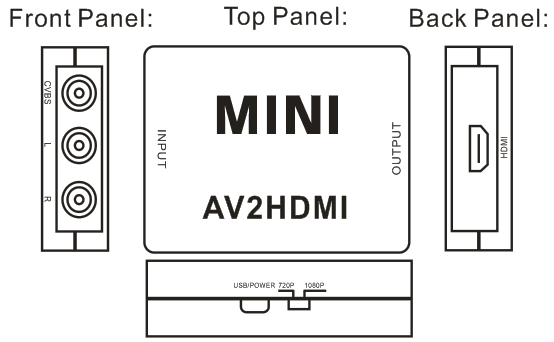

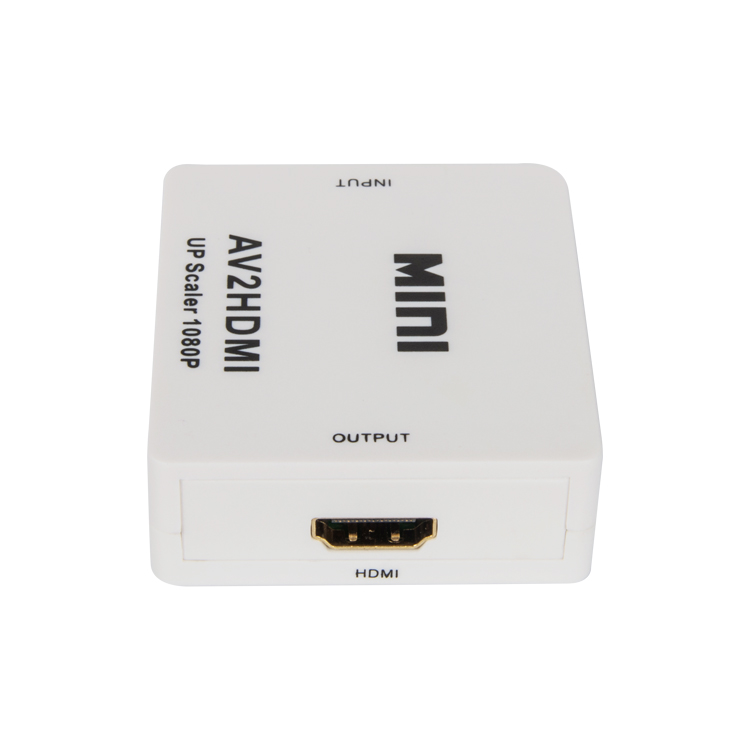

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.


CVBS ---------------------------CVBS input

L/R -------------------------------Audio input

USB POWER ----------USB power input

720P/1080P ---------720P/1080P switch

HDMI ---------------------------HDMI output

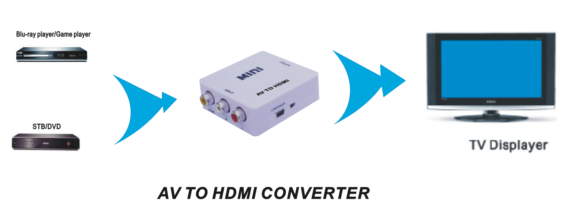

5.0 CONNECTION DIAGRAM
