VGA+R/L Audio to HDMI Converter Price:¥

Online inquiry
Detailed content

1.0 Introduction

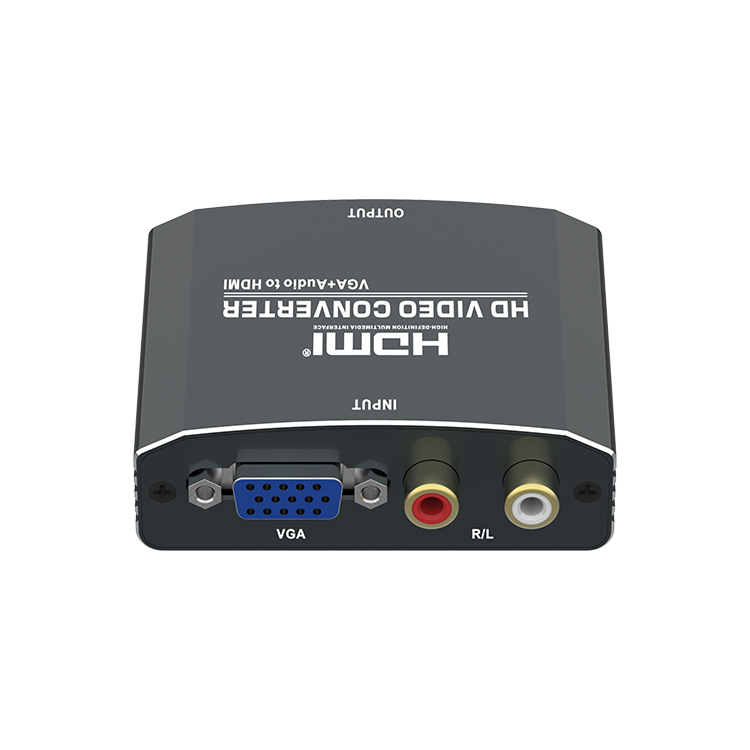

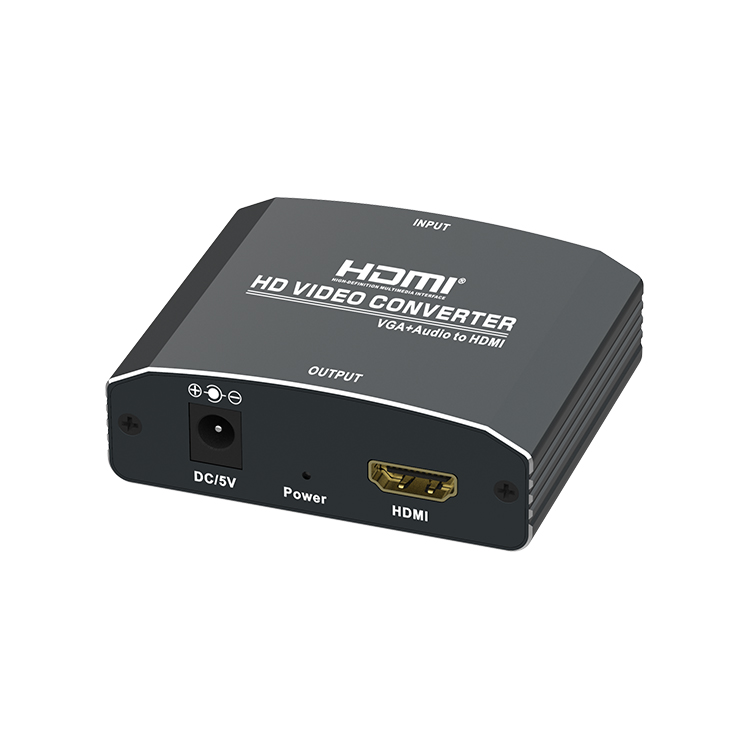

This kind of the Converter is a VGA video converter. It converts VGA input into HDMI to allow PC users to show their image not only on the PC’s monitor, but could also on TV, to have a large display. The conversion is along with the audio. Converter offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.



2.0 Features

The series of the HDMI Converter have many features that enable them to perform in a superior manner. among those features you will find:

1. Conversion:It could convert PCs VGA video and R/L audio into complete

HDMI;

2. Easy to Use:Install in seconds, no need of setting;

3. Support HDMI1.3b,HDCP1.2/1.1;

4. Support resolution:480i/p,576p,720p,1080i/p;

5. Extend the transmission distance and improve transmission signal;

6. Compatible with DVI by using HDMI to DVI adapter;

7. Metal casing design and overall shielding without signal interference.





3.0 Packaging accessories:

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1. VGA to HDMI Converter------------------------------------1Pcs

2. 5V DC Power Adaptor---------------------------------------1Pcs

3. User Manual---------------------------------------------------1Pcs



4.0 Specifications

Signal Inputs/Output


Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1600X1200, 1080P

Output Video

HDMI + HDCP1.2/1.1

VGA

640x480 60Hz 72Hz 75Hz

800x600 60Hz 72Hz 75Hz

1024x768 60Hz 70Hz 75Hz

1280x1024 60Hz

1600x1200 60Hz

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Operating Frequency


Frequency

Up to165MHz

Video Amplifier Bandwidth

1.65Gpbs/165MHz

Resolutions(HDTV)


Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical


Size(LxWxH)

73x60.5x22.5mm

Weight(Net)

0.09Kg

Warranty


Limited Warranty

1 Year Parts and Labor

Environmental


Operating Temperature

0 to +70

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10 to +80

Storage Humidity

5% to 95 % RH (no condensation)

Power Requirement


External Power Supply

DC 5V 1A

Regulatory Approvals


Converter Unit

CE,FCC,ROHS

Power Supply

CE,FCC,PSE,TK,UL

Accessories Adapter


AC Power Adapter

US standard, UK standard and so on

User Manual

English Version



5.0 Panel introduction

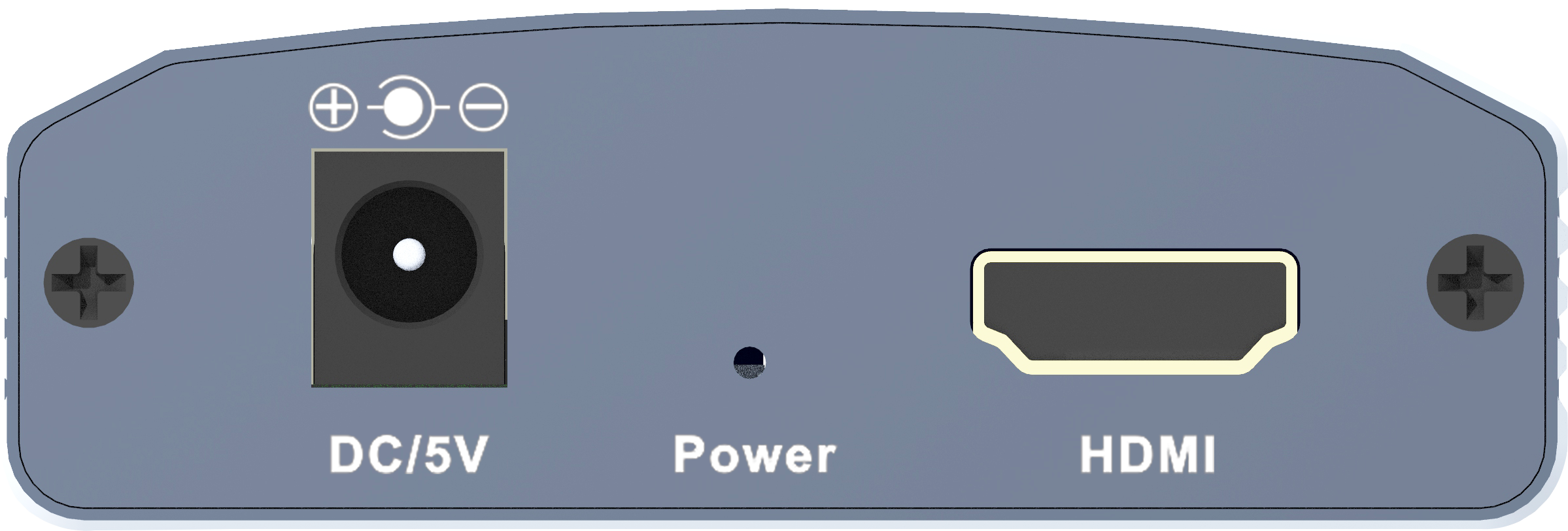

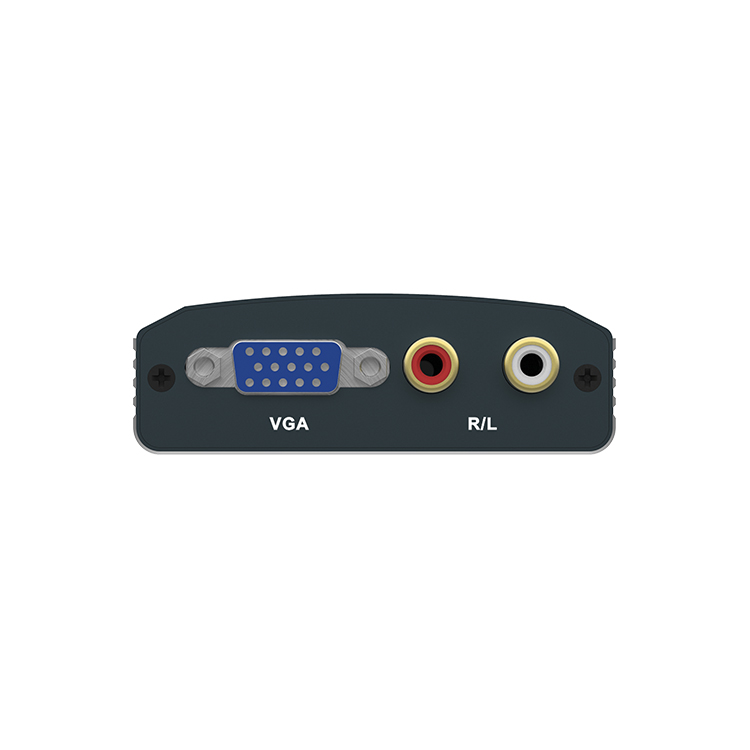

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.


VGA-----------------------------------------------------VGA Input

R/L-----------------------------------------------------Audio Input

DC/5V--------------------------------------------DC Power Input

Power---------------------------------------------Power Indicator

HDMI-------------------------------------------------HDMI Output



6.0 Connection and operation

Before installation, please make sure all devices you wish to connect have been turned off.


1.Connect the VGA video and R/L audio from computer to Converter.(Input

  cables are optional)

2.Connect the HDMI output from to the TV which has HDMI input.

3.Insert the DC side of 5V power supply into and then connect the AC side of

  the power supply into the wall outlet

4.Power on the computer and TV, choose the input of TV to its HDMI

  channel.

5.The image does not need to be adjusted, the Converter will position it

automatically, the user may adjust the horizontal position under

some extreme condition.
