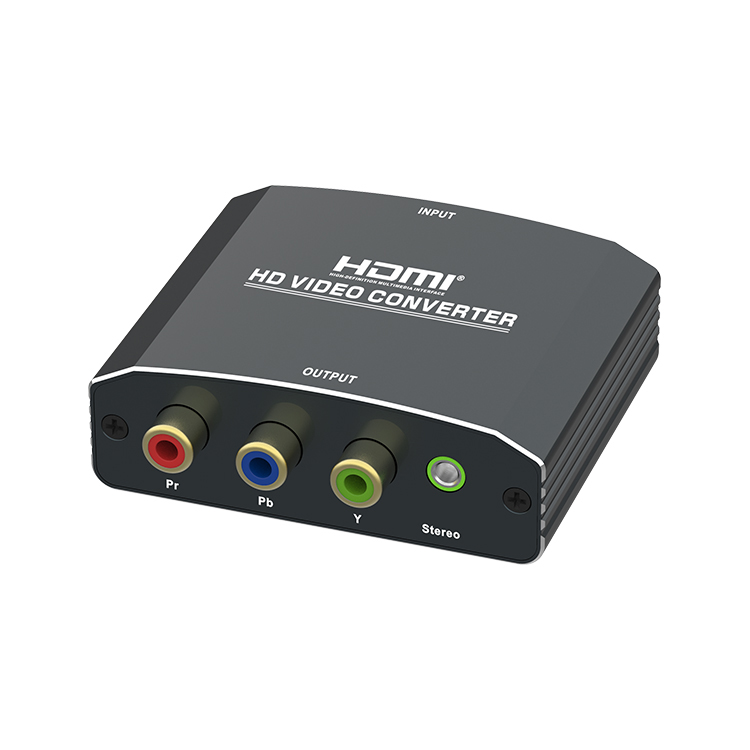

1.0 INTRODUCTION
This kind of the Converter is an HDMI converter. It converters HDMI input into analog YPbPr Video and stereo audio signal. It allows users to enjoy their high definition image and sound when watching movies or playing games on the traditional YPbPr monitors or projectors.
It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, Information distribution, Conference room presentation, school and corporate training environments.
2.0 FEATURES
The series of the HDMI Amplifier Converter have many features that enable them to perform in a superior manner. among those features you will find:
1. Easy to Use: Install in seconds, no need of setting;
2. Conversion: It could convert complete HDMI into YPbPr video and stereo
audio output;
3. Supports HDCP1.2;
4. Supports 165MHz/1.65Gbps per channel(6.75Gbps all channel)bandwidth
for HDMI Input;
5. Supports Analogue Video output up to UXGA and 1080P witch 10-bit DAC.
3.0 PACKAGE CONTENTS
Before attempting to use this unit. please check the packing and make sure the following items are contained in the shipping carton:
(1)HDMI TO YPbPr Converter-----------------1Pcs
(2)5V DC Power Supply-------------------------1Pcs
(3)User Manual------------------------------------1Pcs
4.0 SPECIFICATIONS
Signal Inputs/Output |
|
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Input connection | HDMI A female(19Pin) |
Output connection | 3RCA(YPbPr), 3.5mm Stereo |
HDMI video input format | 480i/576i/480p/576p/720p/1080i/1080P |
YPbPr video output format | 480i/576i/480p/576p/720p/1080i/1080P |
Audio output format | 2 channel LPCM |
Operating Frequency |
|
Vertical Frequency Range | 50/60HZ |
Input Video Amplifier Bandwidth | 1.65Gbps/165MHz |
Mechanical |
|
Size(LxWxH) | 73x60.5x22.5mm |
Weight(Net) | 0.09kg |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10 to +80℃ |
Storage Humidity | 5% to 95 % RH (no condensation) |
Power Requirement |
|
External Power Supply | DC 5V 1A |
Regulatory Approvals |
|
Converter Unit | CE,FCC,ROHS |
Power Supply | CE,FCC,PSE,TK,UL |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
Note: Specifications are subject to change without notice.

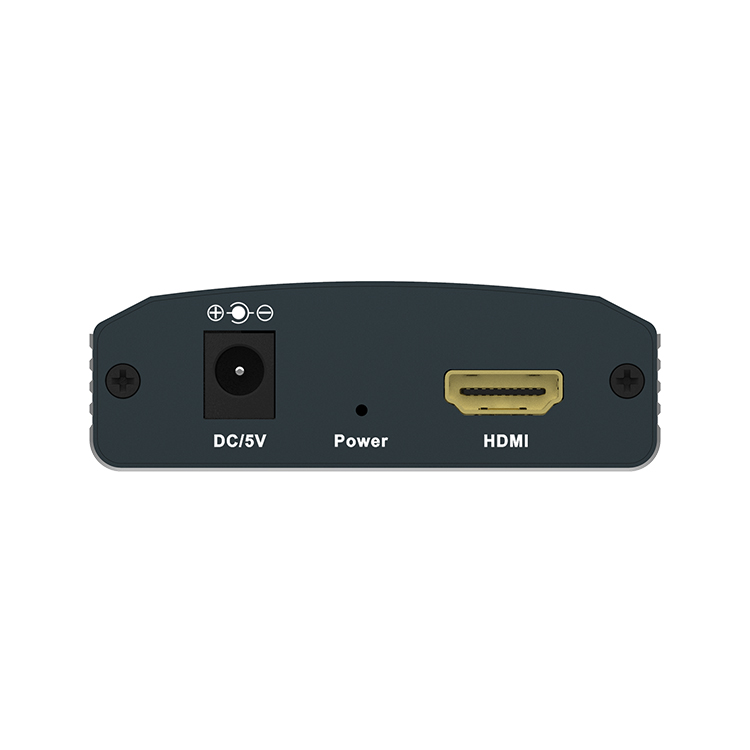

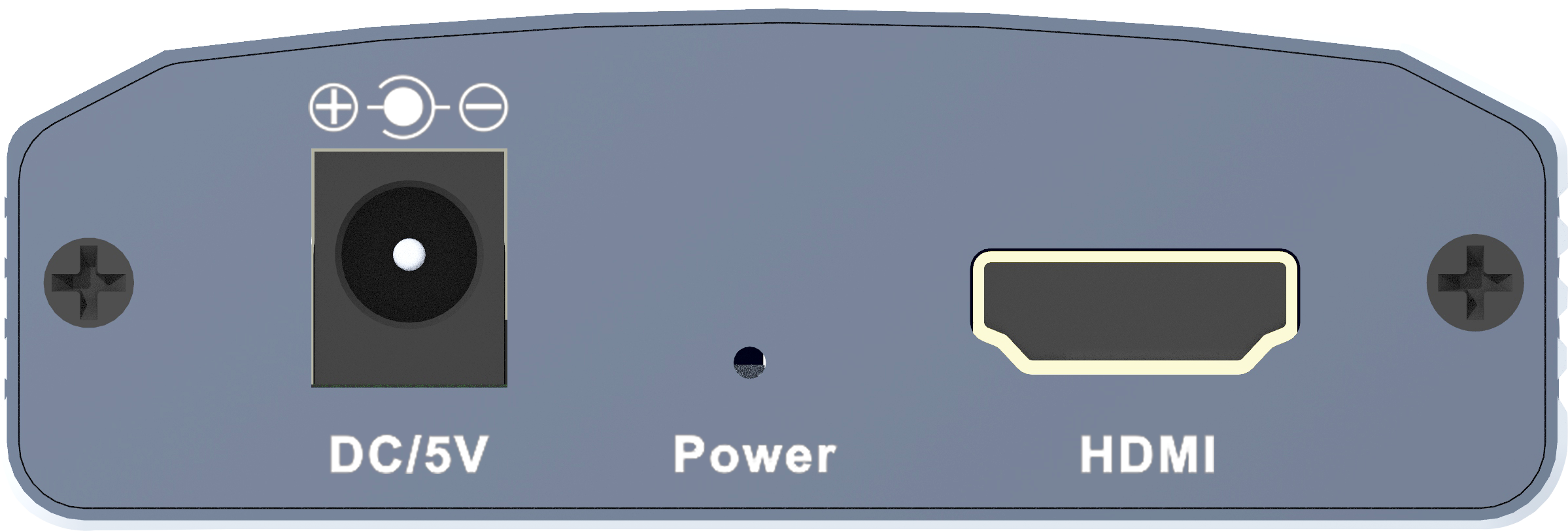

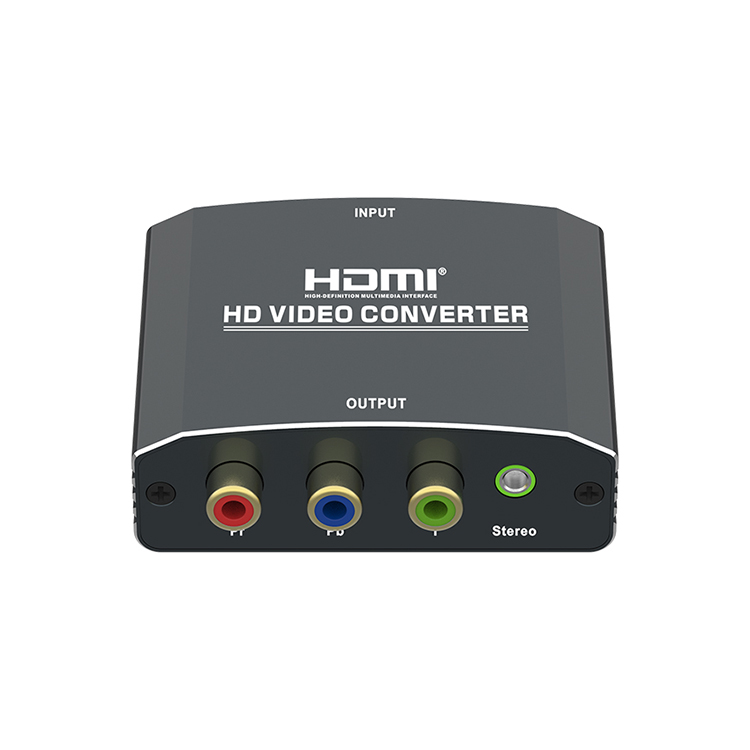

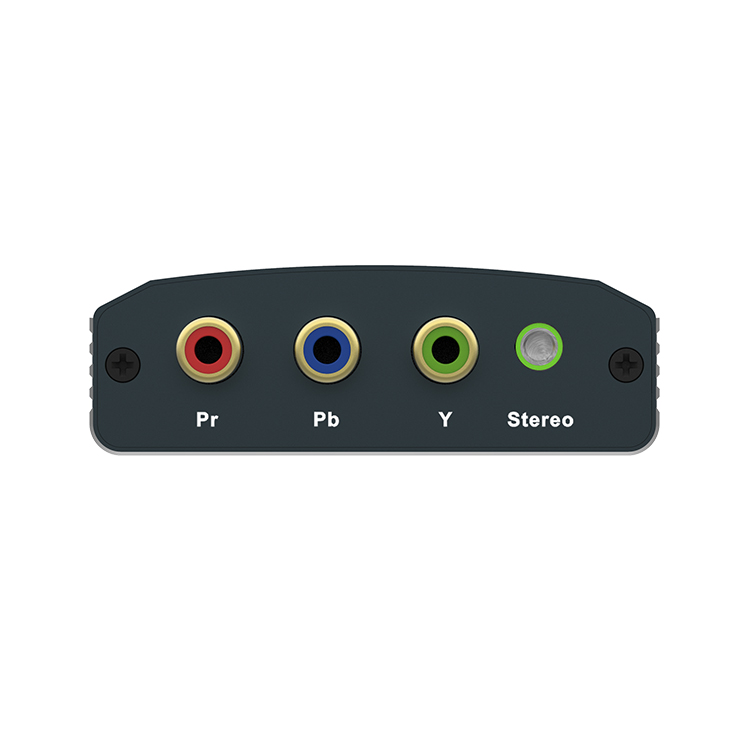

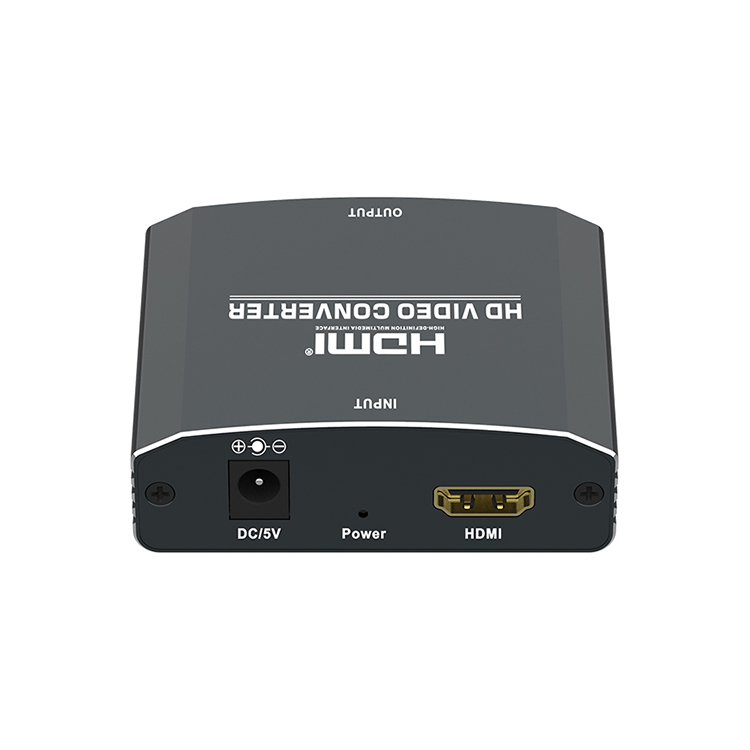

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal input(S),output(S)and power requirements.
DC/5V----------------------------------------------DC Power Input
Power-----------------------------------------------Power Indicator
HDMI-----------------------------------------------------HDMI Input
YPbPr-----------------------------------------YPbPr Video Output
Stereo--------------------------------------------------Audio Output
6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off.
1.Connect the HDMI input from source device to this converter.(Input cables
are optional)
2.Connect the YPbPr and Stereo audio output of this product to the display
device.
3.Insert the DC side of 5V power supply into this product and then connect
the AC side of the power supply into the wall outlet.
4.Power on all connected devices, Choose the input of the display device
to its YPbPr channel.
5.The image does not need to be adjusted, the Converter will position.
