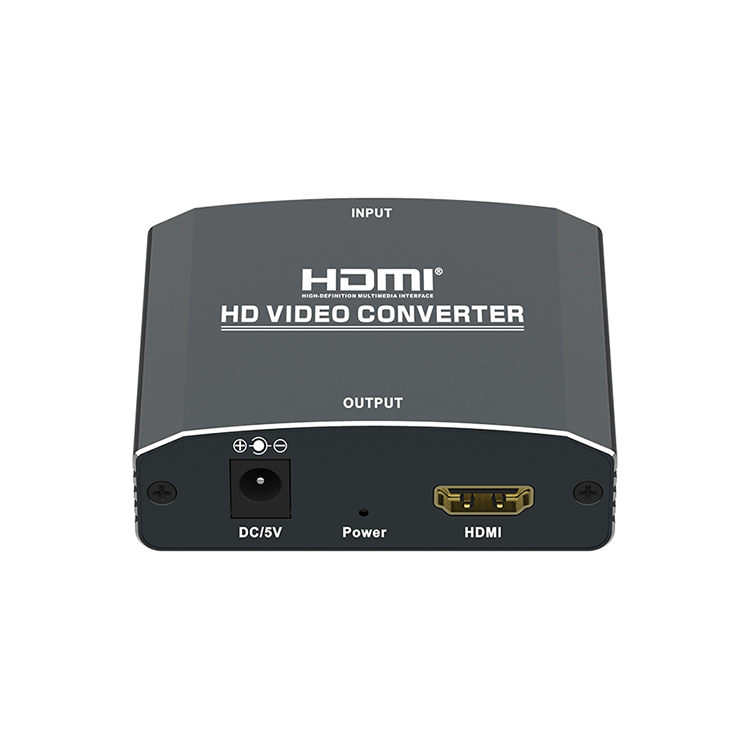

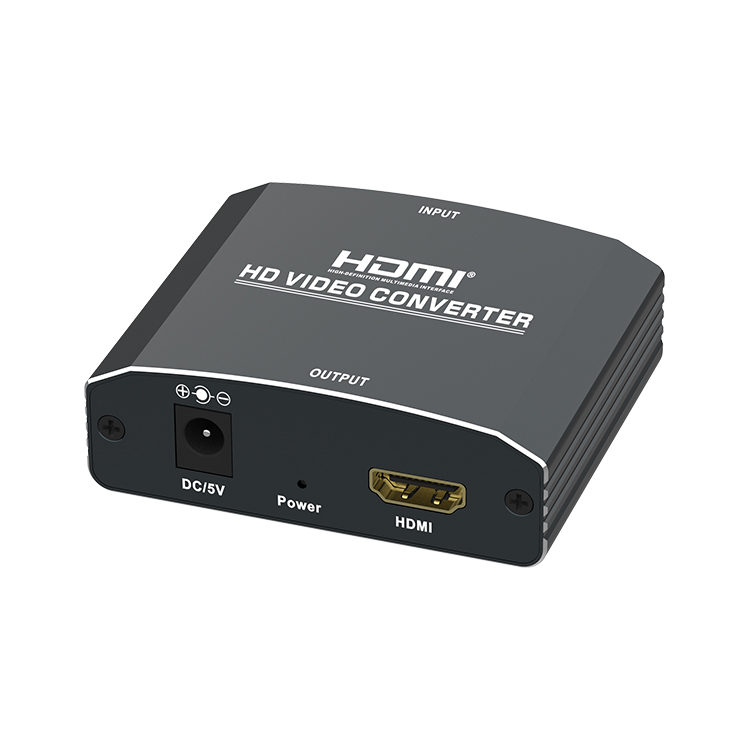

1.0 INTRODUCTION
This is a component video(YPbPr)converter that allows older analog devices to be integrated seamlessly into the modern home theater. This adapter connects component video home theater devices to HDMI Compliant digital monitors. This adapter also takes digital auto and encodes it onto the HDMI signal for the full HDMI video and audio effect.
With the Analog Audio to HDMI Adapter legacy home theater devices can be easily connected to any HDMI display for the full digital video and audio experience.
2.0 FEATURES
This Converter has many features that enable it to perform in a superior manner Among those features you will find:
1. Allows you to connect YPbPr sources to an HDMI display;
2. Analog Audio onto the video signal for HDMI video and audio;
3. Supports HDTV/YPbPr;
4. Supports highest video resolution 1080P;
5. Supports 165MHz/1.65Gbps per channel(6.75Gbps all channel)bandwidth;
6. Supports 8bit per channel(24bit all channel)deep color;
7. Supports uncompressed audio such as DTS Digital, Dolby Digital(including
DTS-HD and Dolby True HD)
3.0 PACKAGE CONTENTS
Before attempting to use this unit please check the packing and make sure the
following items are contained in the shipping carton:
(1)YPbPr to HDMI Converter-------------------------1Pcs
(2)5V DC Power Supply--------------------------------1Pcs
(3)User Manual-------------------------------------------1Pcs
4.0 SPECIFICATIONS
Signal Inputs/Output |
|
Input DDC Signal | 0.5-1.0 volts p-p |
HDMI Connector | type A(19 pin)female |
Video Connector | 3RCA Component |
Audio Connector | 3.5mm Stereo |
Output Video | HDMI1.3 |
Operating Frequency |
|
Vertical Frequency Range | 50/60Hz |
Input Video Amplifier Bandwidth | 1.65Gbps/165MHz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) | 480i、576i、1080i |
Progressive(50&60Hz) | 480p、576p、720p、1080p |
Mechanical |
|
Size(LxWxH) | 73x60.5x22.5mm |
Weight(Net) | 0.09kg |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10 to +80℃ |
Storage Humidity | 5% to 95 % RH (no condensation) |
Power Requirement |
|
External Power Supply | DC 5V 1A |
Power Consumption(max) | 2.5W |
Regulatory Approvals |
|
Converter Unit | CE,FCC,ROHS |
Power Supply | CE,FCC,PSE,TK,UL |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
Note: Specifications are subject to change without notice.

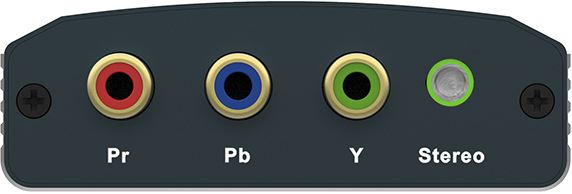

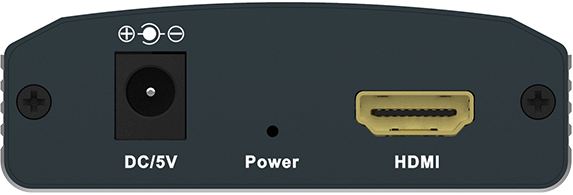

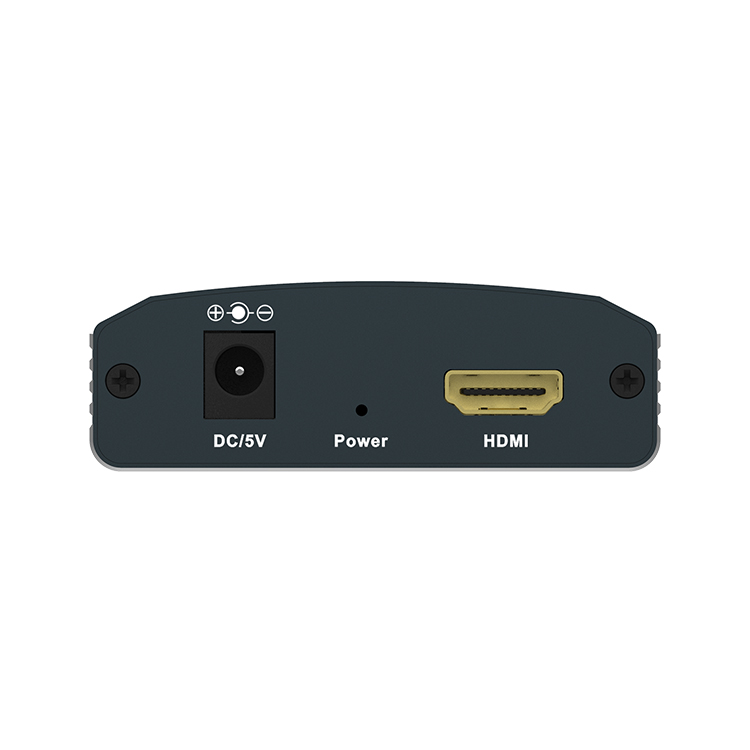

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal
input(S),output(S)and power requirements.
YPbPr-------------------------------------------YPbPr Video Input
Stereo----------------------------------------------------Audio Input
DC/5V----------------------------------------------DC Power Input
Power-----------------------------------------------Power Indicator
HDMI---------------------------------------------------HDMI Output
6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have been turned off.
1.Connect the YPbPr and Stereo input of this product to the Converter.
2.Connect the HDMI output from converter to the this Displayer.(Input cables are optional)
3.Insert the DC side of 5V power supply into this product and then connect the AC side of the power supply into the wall outlet.
4.Power on all connected devices, Choose the input of the display device to its YPbPr channel.
5.The image does not need to be adjusted, the Converter will position it
