1.0 INTRODUCTION

HDMI to CVBS signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,).So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

2.0 FEATURES

1. Hardware conversion, plug and play without any software driver;

2. Support the HDCP protocol, support for HDMI 1.4b;

3. Support NTSC and PAL two standard TV formats;

4. One HDMI input, one AV output:

   Inputs: HDMI x 1

   Outputs: CVBS x1; L / R x1;3.5mm Stereo x1

5. HDMI input: 480i/p, 576i/p, 720p, 1080i/p,1920x1200;

6. Compatible with DVI mode 800x600,1024x768,1280x720,1280x1024

1920x1080/@60hz

7. CVBS output: 480I, 576I

8. Audio output: L/R channels;3.5mm earphone;

9. Dimensions：73mm(W)x60.5mm(D)x 22.5mm(H)

3.0 PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI to AV Converter----------------------------1 Pcs

2.User manual----------------------------------------1 Pcs

3.Power supply---------------------------------------1 Pcs

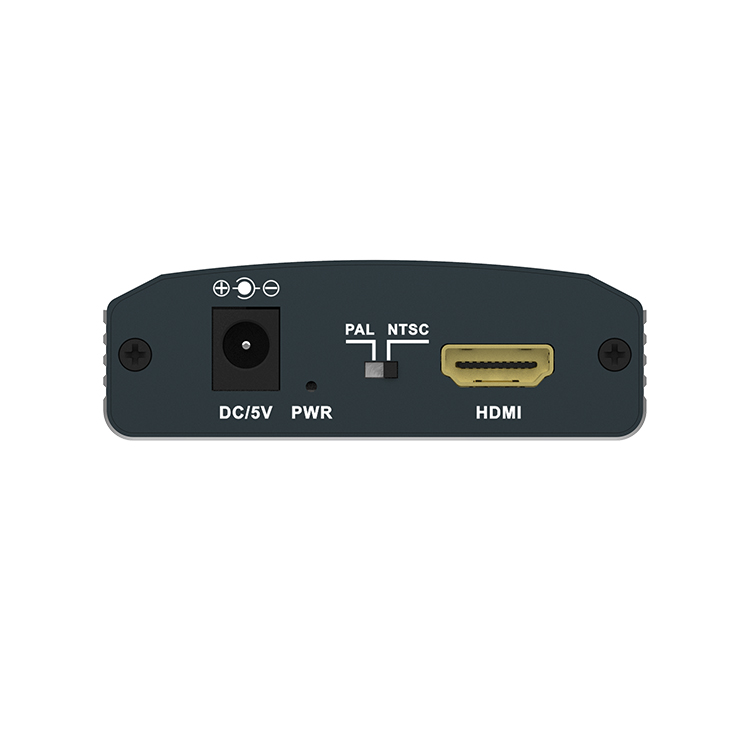

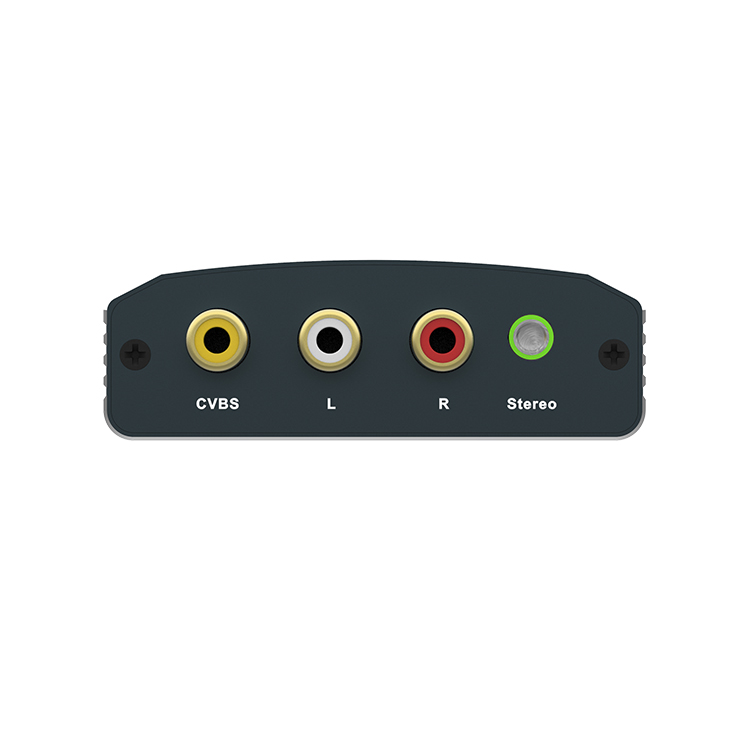

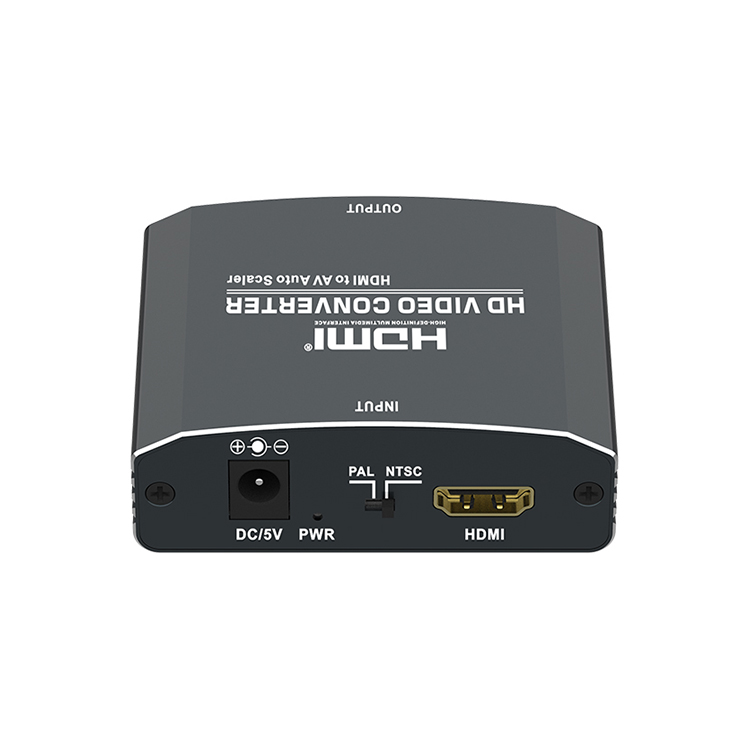

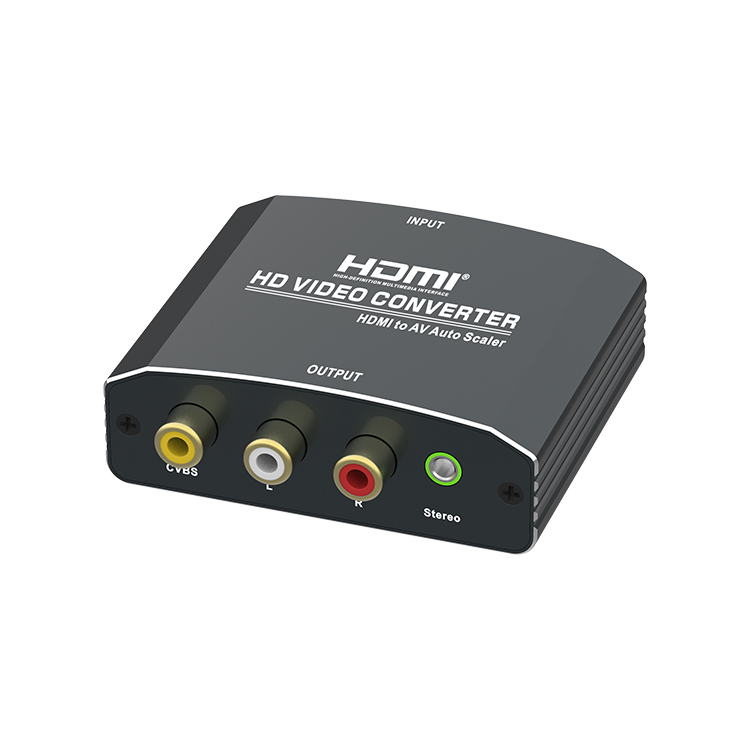

4.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

DC 5V ----------------------------------------------------------DC 5V Input

PWR---------------------------------------------------------Power indicator

PAL/NTSC -------PAL and NTSC standard format selector switch

HDMI -------------------------------------------------------------HDMI Input

A/V -----------------------------------------------------------------AV Output

Audio------------------------------------------------------earphone Output

5.0 APPLICATION AREAS

A. Civil Industry: set-top boxes, XBOX360, PS3, high-definition players.

B. Industrial sector: high-definition camera, video camera, with this common

   display device will instead of big screen HDMI television monitors, to

   reduce the cost and space.

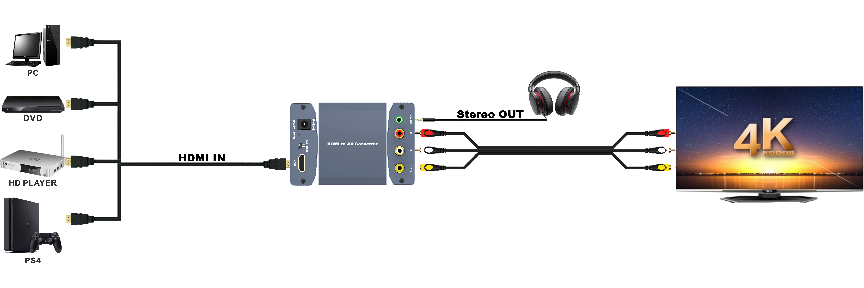

6.0 CONNECT AND OPERATE

Before installation, please make sure all devices you wish to connect have been turned off.

1.Connect the HDMI input from source device to this converter.(Input cables

are optional)

2.Connect the AV and Stereo audio output of this product to the display device.

3.Insert the DC side of 5V power supply into this product and then connect

the AC side of the power supply into the wall outlet.

4.Power on all connected devices, Choose the input of the display device

to its AV channel.

5.The image does not need to be adjusted, the Converter will position
