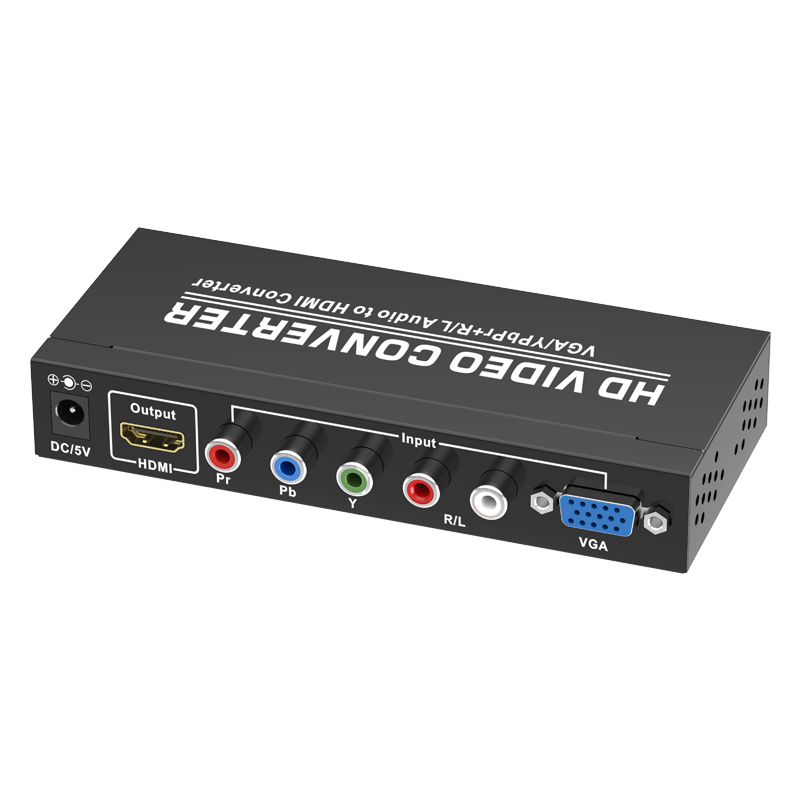

1.0 INTRODUCTION
This kind of the Converter is a VGA and Ypbpr video converter. It converts VGA or ypbpr input into HDMI to allow PC users to show their image not only on the PC’s monitor, but could also on TV, to have a large display. The conversion is along with the R/L audio. Converter offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 FEATURES
The series of the HDMI Amplifier Converter have many features that enable them to perform in a superior manner. among those features you will find:
1.Conversion: It could convert PC’s VGA video or YPbPr Signal and R/L
audio into complete HDMI.
2.Extend the transmission distance and improve transmission signal.
3.Compatible with DVI by using HDMI to DVI adapter.
4.Metal casing design and overall shielding without signal interference.
5.Led indicates signal and power mode.
6.Power supply (please refer to technical parameter).
3.0 PACKAGE CONTENTS
Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:
1) Main unit ----------------------------------- 1PCS
2) Remote control ----------------------------1PCS
3) IR Extension Cable -----------------------1PCS
4) 5V DC Power Supply----------------------1PCS
5) User's Manual-------------------------------1PCS
4.0 SPECIFICATIONS
Signal Inputs/Output |
|
Input Video Signal | VGA、YPbPr |
Input Audio Signal | R/L |
Maximum Single Link Range | 1600X1200, 1080P |
Output Video | HDMI + HDCP1.0/1.1 |
VGA\YPbPr | 640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 70Hz 75Hz 1280x1024 60Hz 1600x1200 60Hz |
DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
Operating Frequency |
|
Frequency | Up to165MHz |
Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) | 480i,576i,1080i |
Progressive(50&60Hz) | 480p,576p,720p,1080p |
Mechanical |
|
Size(LxWxH) | 150x64x25mm |
Weight(Net) | 0.68Kg |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10 to +80℃ |
Storage Humidity | 5% to 95 % RH (no condensation) |
Power Requirement |
|
External Power Supply | DC 5V 1A |
Regulatory Approvals |
|
Converter Unit | CE,FCC,ROHS |
Power Supply | CE,FCC,PSE,TK,UL |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |
5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal
input(S),output(S)and power requirements.

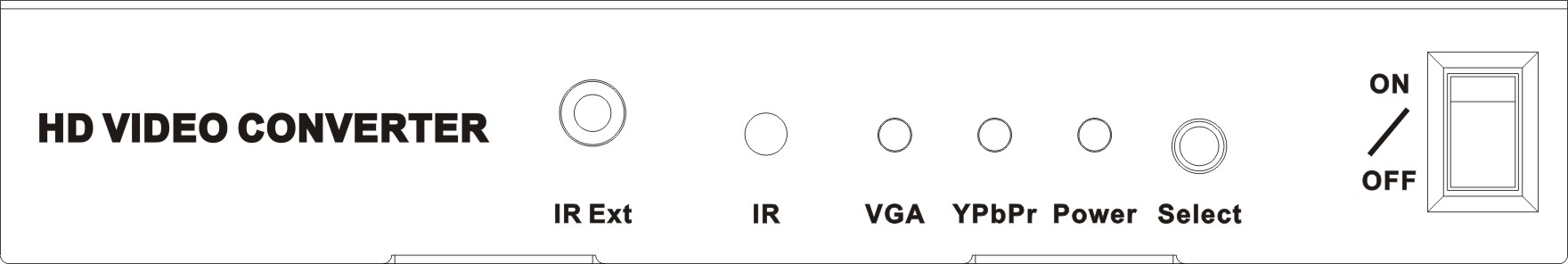

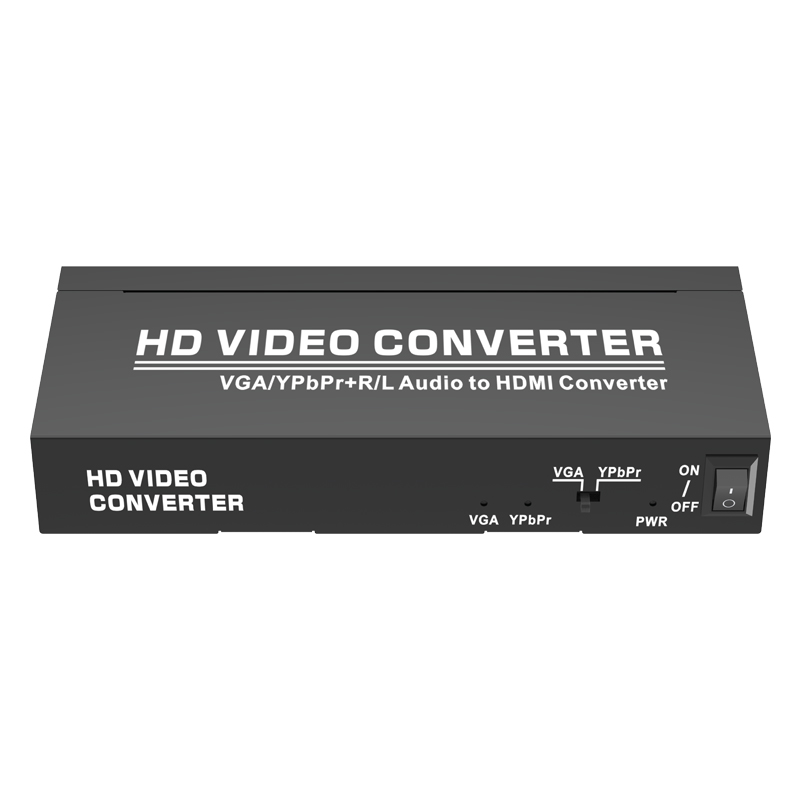

FRONT PANEL
IR Ext ----------------------IR Receiver Extension Port
IR -----------------------------------------IR Receiver Port
VGA ----------------------------------VGA input indicator
YPbPr ------------------------------YPbPr input indicator
Power --------------------------------------Power Indicator
Select -----------------------VGA or YPbPr Input Select
ON/OFF --------------------------------------Power switch

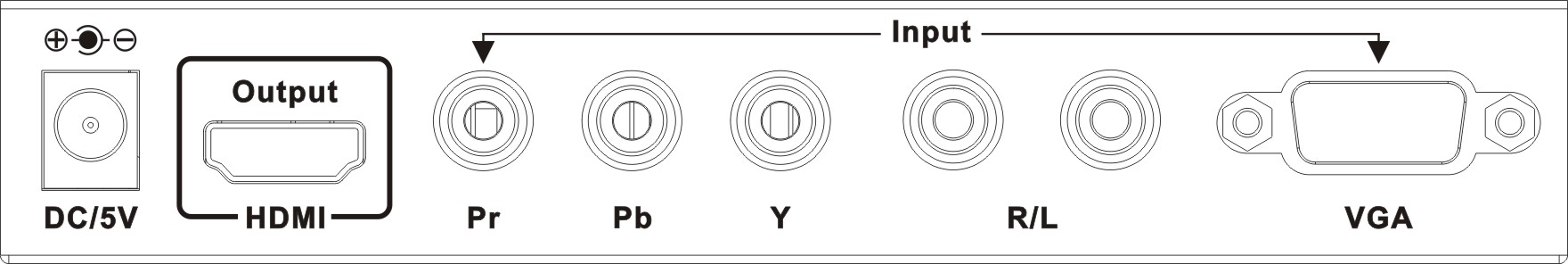

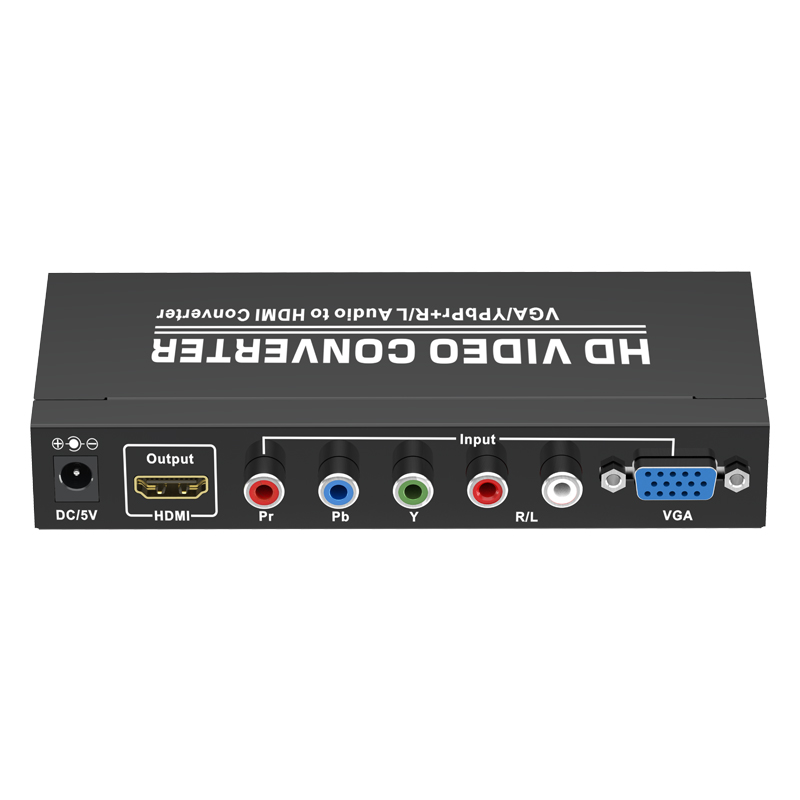

BACK PANEL
DC 5V---------------------------------------DC Power input
HDMI Output ------------------------HDMI Signal output
YPbPr ----------------------------------YPbPr signal input
R/L -------------------------------------------R/L Audio input
VGA ----------------------------------------VGA signal input
6.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect
have been turned off.
1.Connect the VGA video or YPbPr video and R/L audio from computer to Converter.(Input cables are optional)
2.Connect the HDMI output from to the TV which has HDMI input.
3.Connect the VGA and R/L audio output of back to the computer’s monitor and speaker if necessary.
4.Insert the DC side of 5V power supply into and then connect the AC side of the power supply into the wall outlet
5.Power on the computer and TV, choose the input of TV to its HDMI channel.
6.The image does not need to be adjusted, the Converter will position it automatically, the user may adjust the horizontal position under some extreme condition.
