1.0 Introduction

AV/HDMI TO HDMI converter can convert 480I(NTSC)/576I(PAL) format signal to 720P/1080P HDMI signal output, also it can connect the high definition HDMI input interface, Easy connect the DVD, set-top box, HD player, Game Console (PS2,PS3,PSP,WII,XBOX360 etc).

2.0 Features:

1) HDMI output interface: connect with high definition TV or high definition

   projector:

  HDMI output format:720P@50/60Hz, 1080P@50/60HZ

  Audio output format: Digital coaxial audio, analog stereo audio
2) CVBS input interface: DVD, set top box, PS2, WII, NGC and other players.

CVBS input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N

3) HDMI input format:

  480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz

  Compatible with several DVI format: 800X600、1024X768,1280X1024、

  1360X768, 1680X1050、1920X1080 etc.
4) 3.5mm audio interface: Connect with analog audio amplifier or headphones

input interface

5) Digital coaxial output: Connect with digital audio amplifier.

3.0 Package contents

Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:

1、Main unit ----------------------------------- 1PCS

2、5V DC Power Supply---------------------1PCS

3、User's Manual------------------------------1PCS

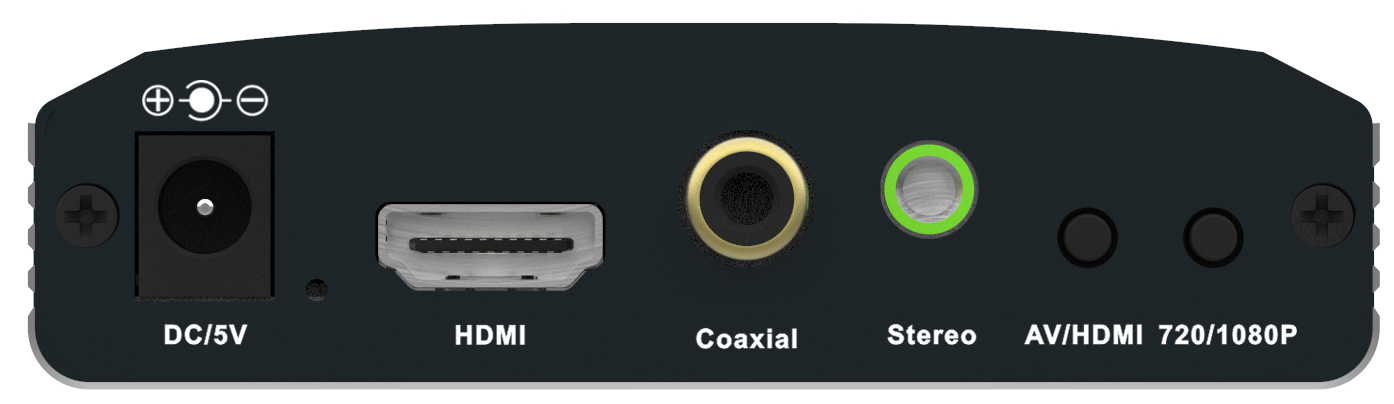

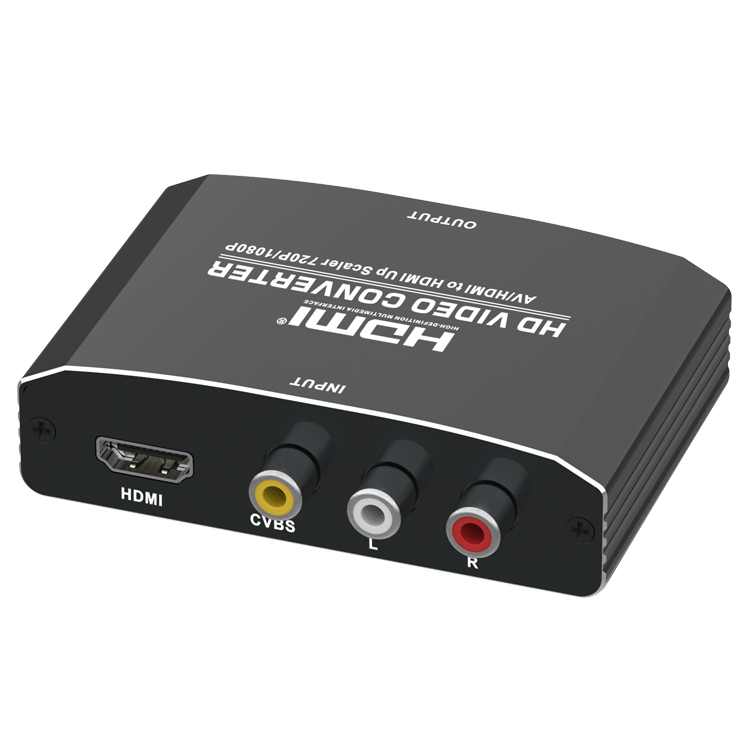

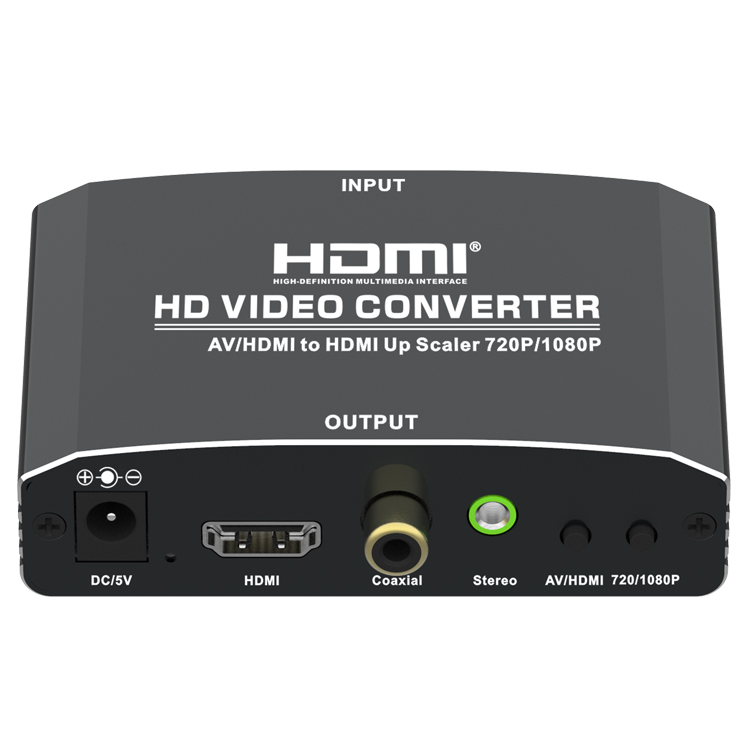

5.0 Panel descriptions

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

HDMI IN--------------------------------------------HDMI input interface

AV IN -------------------------------------------------- AV input interface

DC/5V-----------------------------------------DC power input interface

AUDIO ---------------------------------Analog audio output interface

HDMI OUTPUT --------------------------------HDMI output interface

Coaxial ------------------------Coaxial digital audio output interface

CVBS/HDMI --------------------AV or HDMI input switching button

720p/1080p--------720P or 1080P HDMI output switching button

50HZ/60HZ----------------50Hz or 60Hz HDMI output state button

6.0 Connection and operation

6.1 Connect the HDMI Cable between HDMI signal source and HDMI INPUT

    of converter.

6.2 Connect the AV Cable between AV signal source and AV INPUT of

    converter.

6.3 Connect the HDMI Cable between converter and HDMI display.

6.4 The audio cable is connected to speakers.

6.5 The coaxial cable is connected to the digital speakers.

6.6 Connect the power adapter between converter and outlet. Open the power

    supply of signal source and the display. Choose corresponding input

    ports, then it works.
