1.0 INTRODUCTION

The MHL/HDMI to SCART converter which will convert digital MHL/HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert the high quality of the HDMI signal and smart Phone MHL signal to normal CVBS signal (standard-definition 480i, 576i,).So that can play on CRT TV, VHS VCR, DVD recorders, etc. The MHL/HDMI to SCART converter support NTSC and PAL TV formats output.

2.0 FEATURES

1. No need to install drivers, portable, flexible, plug and play;

2. Support HDMI1.4b Compatible with HDCP;

3. Support Input resolution:

   480i/p,576i/p,720p,1080i/p,4Kx2K@30Hz;

4. High quality scaling technology for auto resolutions;

5. Support NTSC and PAL two standard TV formats output.

6. Share your smart phone photos, music and movies on the TV.

3.0 PACKAGE CONTENTS

Before attempting to use this unit please check the packing and make sure the

following items are contained in the shipping carton:

(1)HDMI to Scart Converter----------------------1Pcs

(2)5V DC Power Supply---------------------------1Pcs

(3)User Manual--------------------------------------1Pcs

4.0 SPECIFICATIONS

Input port------------------------------------------------------------------------1xHDMI

Output port--------------------------------------------1xSCART,1x3.5mm Stereo

Dimensions(mm)--------------------------------------------73(L)x60.5(W)x25(H)

Wight (g)-------------------------------------------------------------------------------90

Input Resolution-----------------------------640x480@60Hz,800x600@60Hz

1024x768@60Hz,1280x720@60Hz

1280x1024@60Hz,1360x768@60Hz

1600x1200@60Hz,1920x1080@60Hz

480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz

720p50/60Hz,1080i50/60Hz,1080p23.97/24/25/50/59.94/60Hz

4Kx2K/30Hz

CVBS output---------------------------------------------------------------PAL,NTSC

Operating Temperature----------------------------0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature------------------------------20°C ~ 60°C / -4°F ~ 140°F

elative Humidity----------------------------20 ~ 90% RH (Non-condensing)

Power Consumption (Max)-------------------------------------------------2.5W

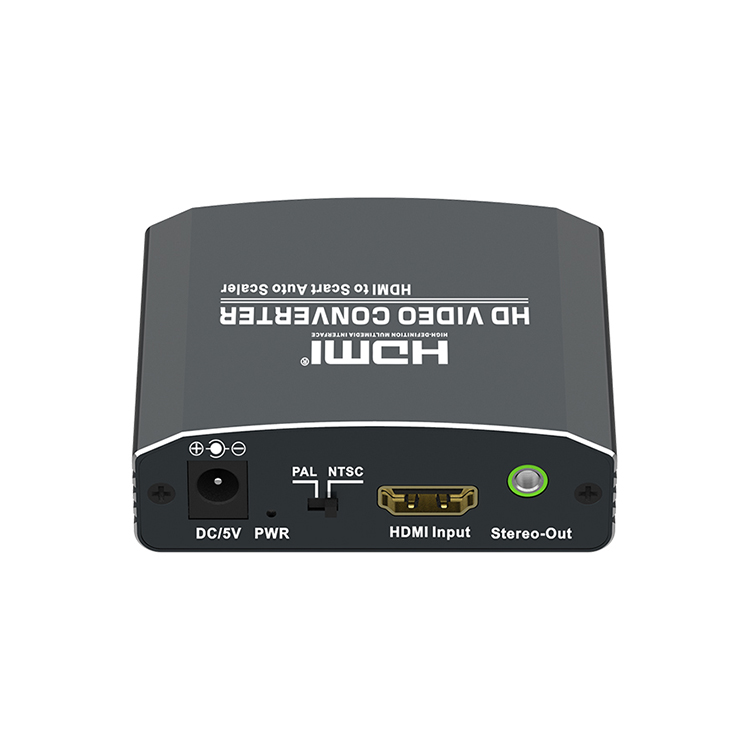

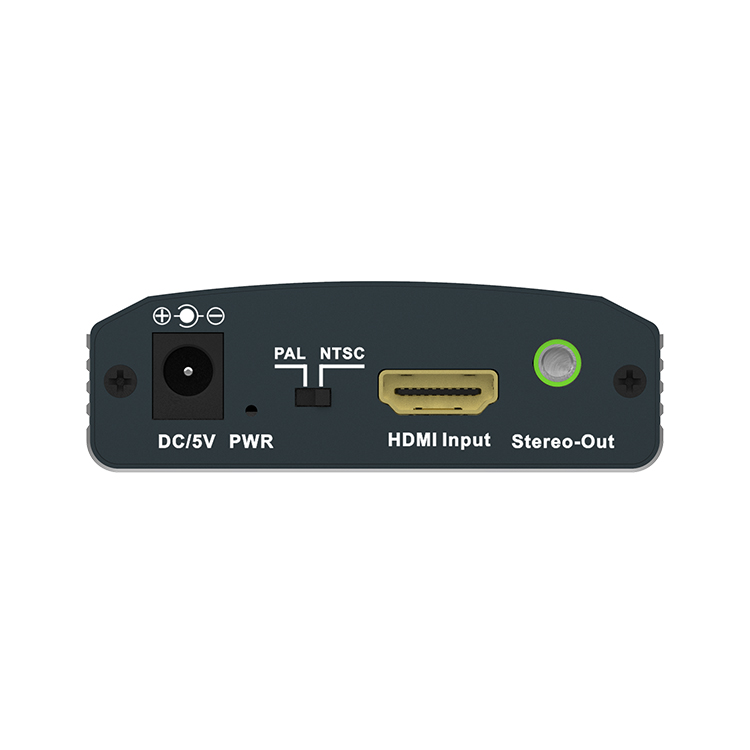

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

DC 5V ----------------------------------------------------------DC 5V Input

PWR---------------------------------------------------------Power indicator

PAL/NTSC -------PAL and NTSC standard format selector switch

HDMI Input------------------------------------------------------HDMI Input

Stereo-Out-----------------------------------------------earphone Output

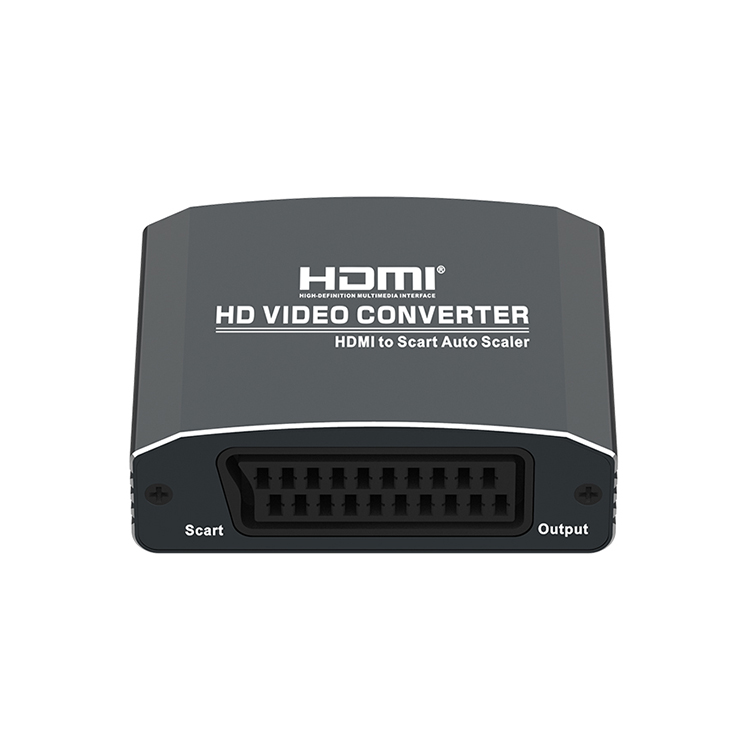

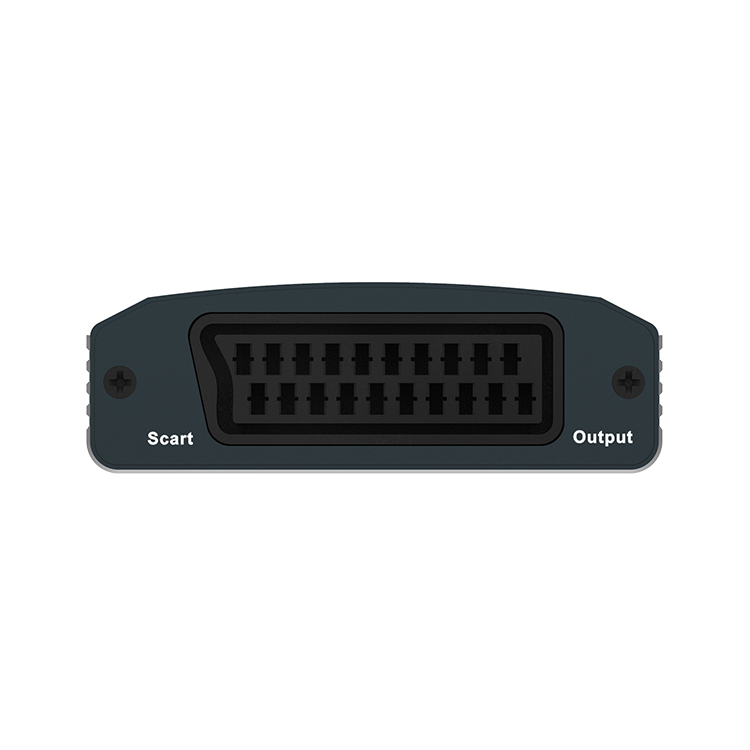

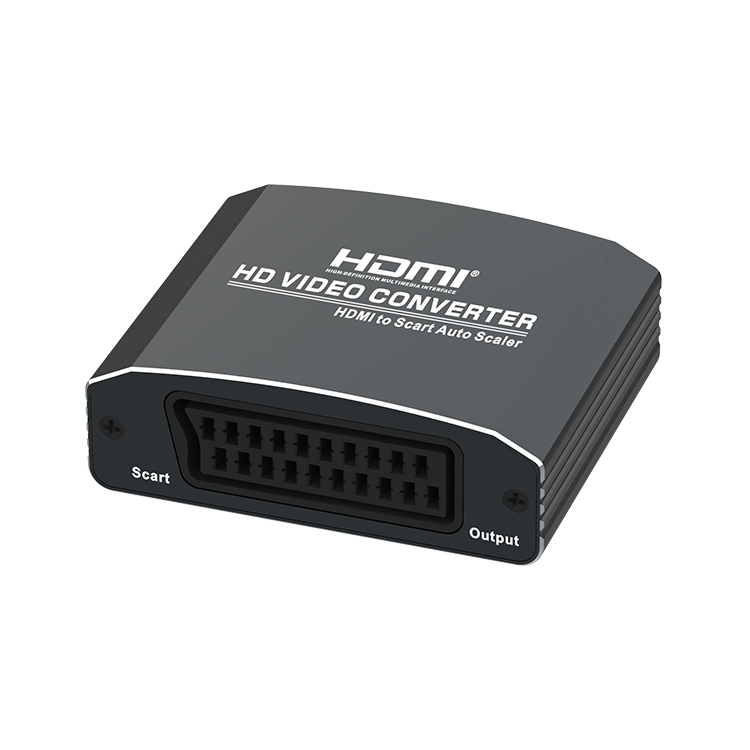

Scart Output --------------------------------------------------Scart Output

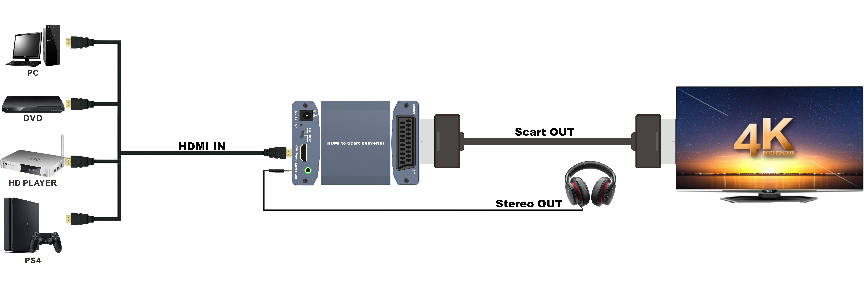

6.0 CONNECTION AND OPERATION

Before installation, please make sure all devices you wish to connect have been turned off.

1.Connect the HDMI input from source device to this converter.(Input cables

are optional)

2.Connect the Scart and Stereo audio output of this product to the display device.

3.Insert the DC side of 5V power supply into this product and then connect

the AC side of the power supply into the wall outlet.

4.Power on all connected devices, Choose the input of the display device

to its Scart channel.

5.The image does not need to be adjusted, the Converter will position
