1.0 Introduction:
HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.
HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.
2.0 Features:
1.Compliant with HDMI2.0, HDCP2.2 and DVI 1.0.
2.Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4:4/YCBCR4:4:4,
and up to 4k2k@60Hz with 12bit YCBCR 4:4:4.
3.Support 3D frame sequential video format up to 1080p@60.
4.Support high resolution VESA mode video format up to QSXGA@60Hz.
5.Support HDR and 18Gbps Signal Speed.
6.Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio.
7.Compatible with DVI by using HDMI to DVI adapter.
8.Extend the transmission distance and improve transmission signal.
9.Metal casing design and overall shielding without signal interference.
10.Power supply (please refer to technical parameter).
3.0 Packaging accessories:
1. HDMI 1×8 Splitter------------------------------------------------1 PCS
2. 5V DC Power Adaptor-------------------------------------------1 PCS
3. User Manual-------------------------------------------------------1 PCS
4.0 Technical parameters
HDMI Source Input Port-------------------------------------------------------------------1
Display Device Output Port---------------------------------------------------------------8
Source Port Connector----------------------------------------------------19 PIN HDMI
Display Device Port Connector------------------------------------------19 PIN HDMI
HDCP Compliant------------------------------------------------------------------------YES
Single Link Range--------------------------------------------------------------4096x2160
Input Video Signal------------------------------------------------------0.5-1.0 Volts P-P
Input DDC Signal--------------------------------------------------------5 Volts P-P(TTL)
Deep Color------------------------------------------------------------------------------48 bit
HDMI Version-----------------------------------------------------------------------HDMI2.0
Bandwidth---------------------------------------------------------------------Up to 600Mhz
Signal Speed-----------------------------------------------------------------Up to 18Gbps
The length of input cable------------------------------PS4≤10M；BLUE DVD≤10M
The length of output cable-----------------------------------------------------------≤10M
The cable standard-----------------------------------------------------28AWG HDMI2.0
Vertical Frequency Range------------------------------------------------------------60Hz
Power Consumption(max.)-------------------------------------------------------6.5Watts
Operation Temperature-----------------------------------------------------------0℃-70℃
Working Voltage-----------------------------------------------------------------------DC 5V
Power Adaptor-------------------------------------------------------------------------5V 2A
Net Weight-----------------------------------------------------------------------------0.98Kg
Dimension: L*W*H(mm)------------------------------------------------------276x110x25

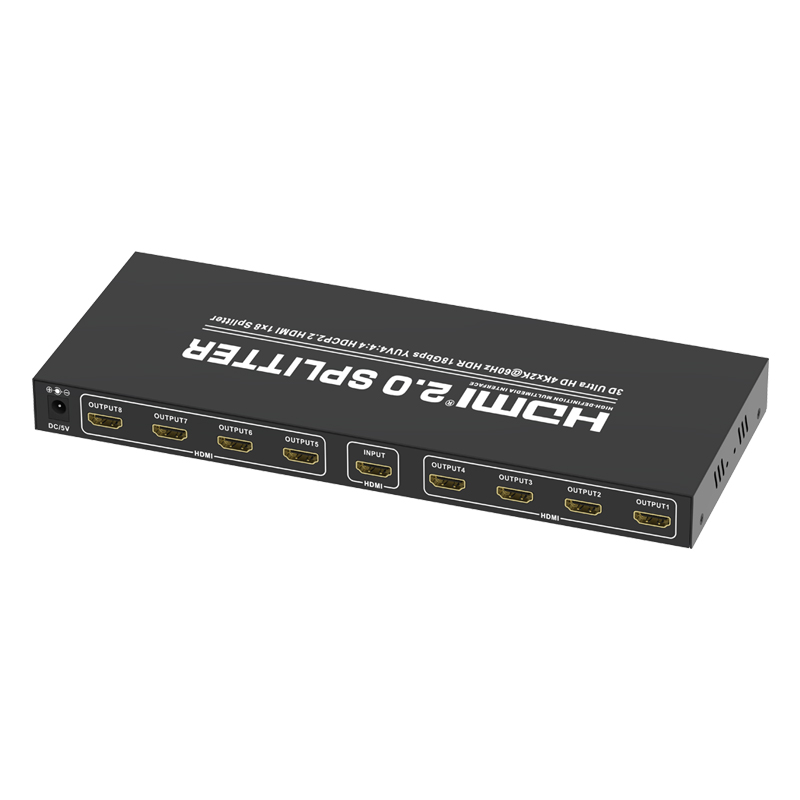

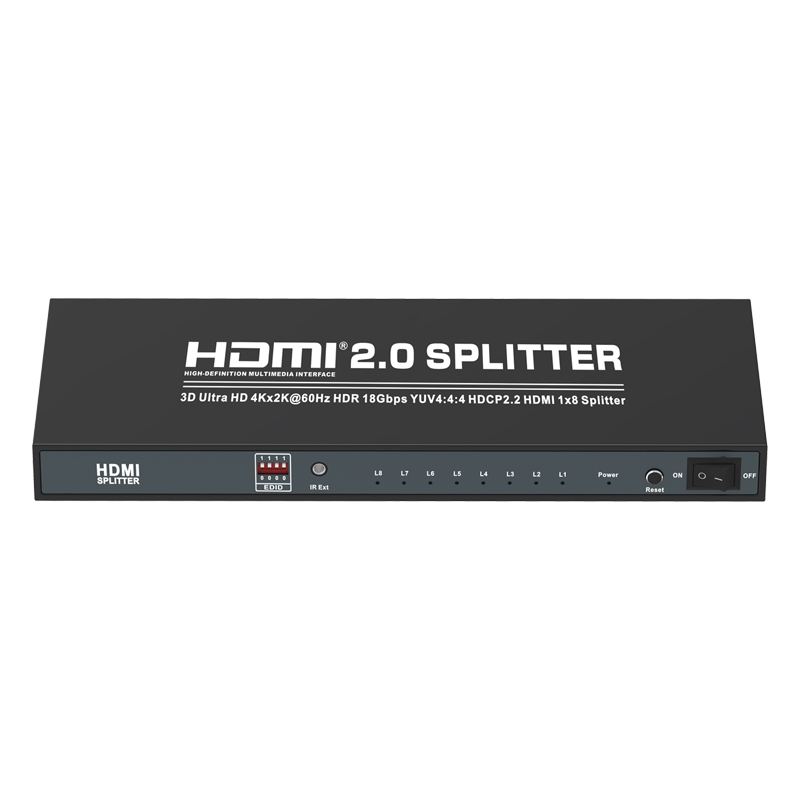

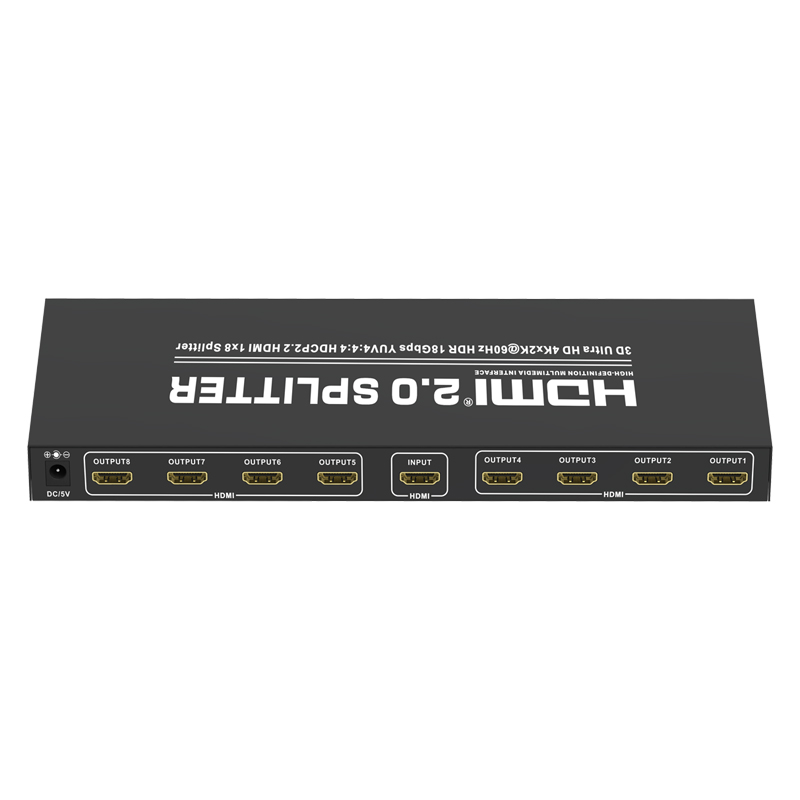

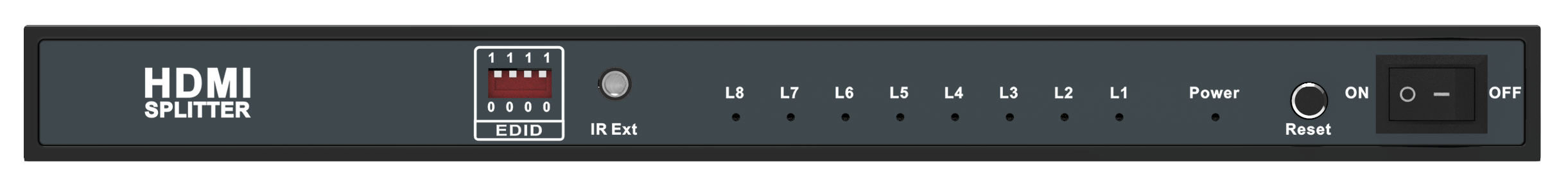

5.0 Panel Introduction
EDID --------------------------------------------EDID Setting button
IR Ext-----------------------------------------------IR Extension port
L1-L8-----------------------------------------HDMI Output Indicator
Power-------------------------------------------------Power Indicator
Reset-----------------------------------------------------Reset button
ON/OFF-------------------------------------------------Power Switch
DC/5V------------------------------------------------Power Input port

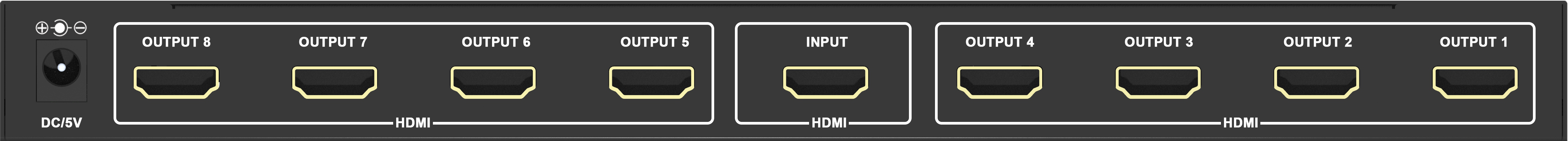

HDMI Output 8-1--------------------------------HDMI 1-8 outputs
HDMI Input------------------------------------------HDMI Input port

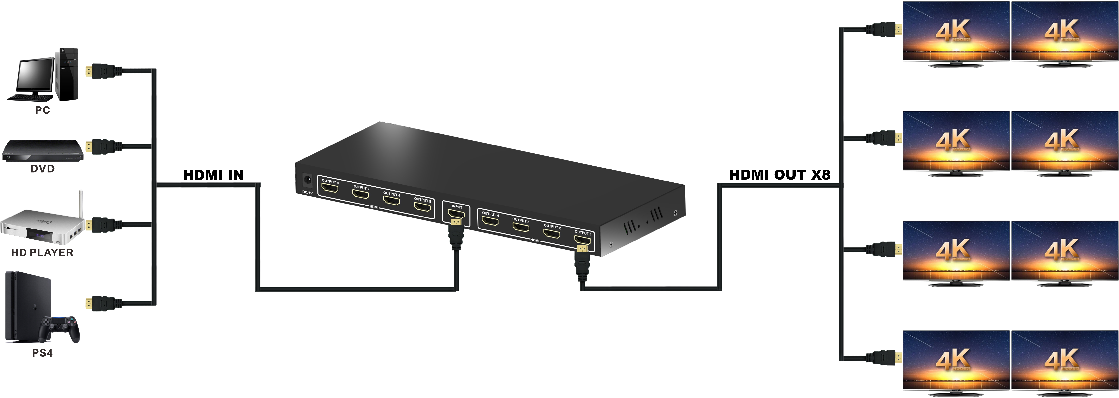

6.0 Connection diagram
Before installation, please make sure all devices you wish to connect have been turned off.
6.01 Connect the HDMI cable between signal source and input port of Splitter.
6.02 Connect the HDMI cable between output port of Splitter and HDTV.
6.03 Connect splitter and power adapter.
6.04 Open the signal source and the power of HDTV, then it works.
