1.0  INTRODUCTION

HDMI Matrix is a perfect matrix product with detached external audio output ports, which can connect 4 different HDMI signal sources and 4 displays. It can easily switch any 1 or 2 of 4 input signals to 4 displays by using remote control or pushing button. The output signals can be same or different. By using this product can avoid the need to disconnect and reconnect signal sources to displays frequently. It can smartly select input signal sources with priority order and jump over those input signal sources which are not in work. It can optimize your home theatre system to the best effect.

2.0 FEATURES

1.When its 4 input ports are separately connected to 4 signal sources

with HDMI cables, the HDMI Matrix automatically recognizes the last

connected port and switches its input signal to 4 displays;

2.The needed input signal sources must be selected by using remote

control or pushing button in order to make 4 displays showing 4 different

Signals;

3.Support HDMI2.0,HDCP2.2;

4. Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR

   4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

5. Switch easily between any 4 HDMI sources.

6. The 4 displays can get the same or different signals without mutual

interaction.

7. Connected easily to dual-channel audio receiver device.

8. Support DVI device with DVI to HDMI adapter.

9. Plug-and-play and no need of setting.

10. Metal casing design and overall shielding without signal interference.

11. Use remote control or push button to freely select input source.

12. LED indicates signal /power mode.

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1.HDMI 4X4 Matrix -----------------------1PCS

2.DC 12V Power adapter----------------1PCS

3.Remote control---------------------------1PCS

4.User Manual------------------------------1PCS

4.0 TECHNICAL PARAMETERS

Explanation: With different brands of the input or output device, the length of the connecting cables will differ too.

5.0 PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

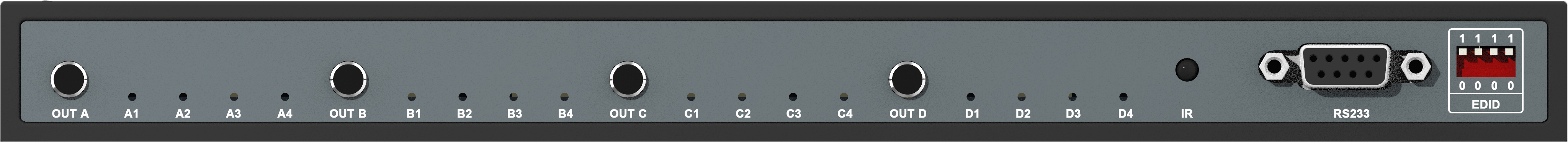

OUT A-------------------------------------------------Output A Select

A1-A4---------------------------------------------Output A1-4 Status

OUT B-------------------------------------------------Output B Select

B1-B4---------------------------------------------Output B1-4 Status

OUT C------------------------------------------------Output C Select

C1-C4--------------------------------------------Output C1-4 Status

OUT D------------------------------------------------Output D Select

D1-D4--------------------------------------------Output D1-4 Status

IR------------------------------------------------------IR Receiver port

RS232------------------------------------------------------RS232 port

EDID------------------------------------------------EDID setting port

DC 12V---------------------------------------DC power Input port

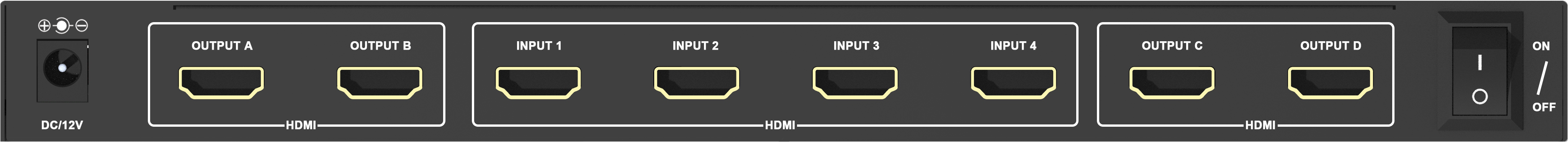

HDMI OUT A ----------------------------------------Output port A

HDMI OUT B ----------------------------------------Output port B

HDMI IN 1-4 ---------------------------------------HDMI Input 1-4

HDMI OUT C ----------------------------------------Output port C

HDMI OUT D ----------------------------------------Output port D

ON/OFF ----------------------------------------------Power Switch

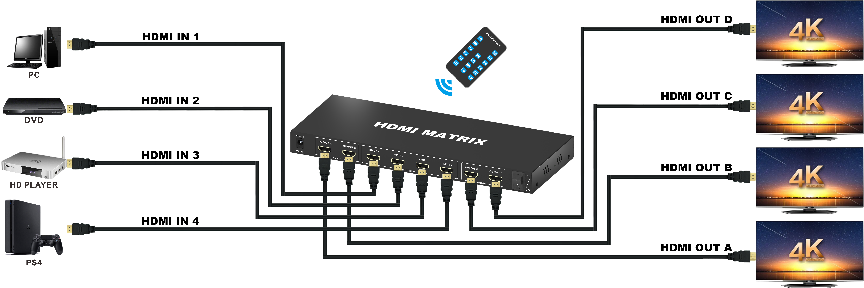

6.0 CONNECTION DIAGRAM

Before installation, please make sure all devices you wish to connect have been turned off.

6.01 Connect the HDMI cable between signal source and input port of Matrix.

6.02 Connect the HDMI cable between output port of Matrix and HDTV.

6.03 Connect Matrix and power adapter.

6.04 Open the signal source and the power of HDTV, then it works.
