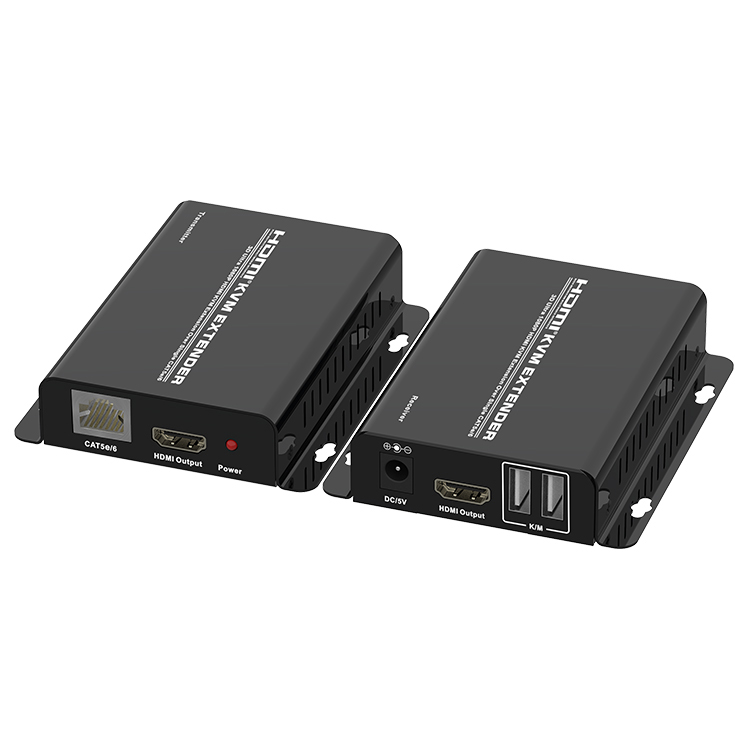

1.0 INTRODUCTION

The HDMI KVM Extender use single cat-5e or cat-6(recommended) cables up to 60 meters instead of HDMI cable to transmit high definition signal, for cutting down cost.

2.0 FEATURES

1.Signal transmission :CAT5e/6(recommended) cables up to 60 meters

instead of HDMI cables are connected between TX and RX Extender.

2.Support HDMI 1.3/HDCP1.1&1.2;

3.Support input/output resolution:480i/p,576p,720p,1080i/p;

4.Support Support TX With HDMI Loopout.

5.The design of pure hardware, plug and play, no need for additional software;

6.Support long distance controlled by keyboard and mouse.

3.0 PACKAGE CONTENTS

When first unpacking your extender please check to see if the following items are included:

HDMI Extender Transmitter ------------------------------------------------ 1PCS

HDMI Extender Receiver --------------------------------------------------- 1PCS

5V DC Power Supply adapter --------------------------------------------- 2PCS

USB Data Cable----------------------------------------------------------------1PCS

Operation Manual ------------------------------------------------------------- 1PCS

4.0 SPECIFICATIONS

HDMI Version-----------------------------------------------------------------HDMI1.3a

Transmitter Input Ports ---------------------------------HDMIx1(AF),USB(BF)x1

Transmitter Output Ports ------------------------------------HDMIx1(AF),RJ45x1

Receiver Input Ports------------------------------------------------------------RJ45x1

Receiver Output Ports-----------------------------------HDMIx1(AF),USB(AF)x2

Frequency Bandwidth---------------------------------------2.25Gbps (single link)

Input/Output Resolutions------------------------------480i/p,576p,720p,1080i/p

Audio-------------------------------------------Sample rate:32kHz,44.1kHz,48kHz

ESD Protection Human Body Model ---------------± 8kV (air-gap discharge)

                                          ± 4kV (contact discharge)

Operating Temperature--------------------------------0˚C ~ 40˚C / 32˚F ~ 104˚F

Storage Temperature ---------------------------------20˚C ~ 60˚C / -4˚F ~ 140˚F

Relative Humidity----------------------------------20~90% RH (non-condensing)

Dimensions (mm)------------------------------------------------------------100x65x25

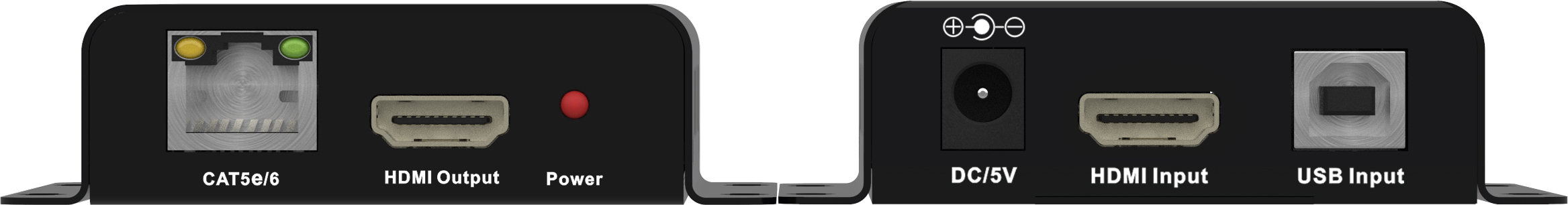

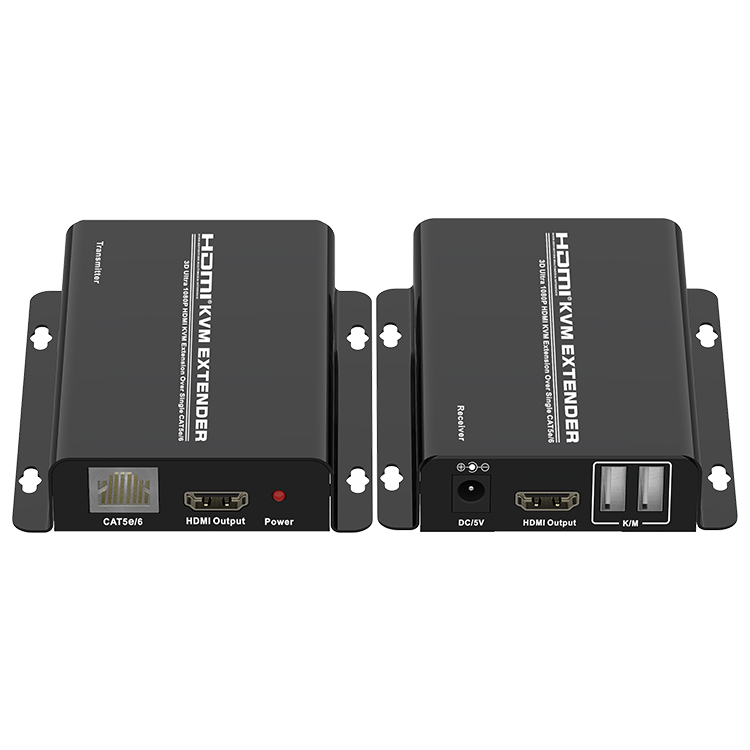

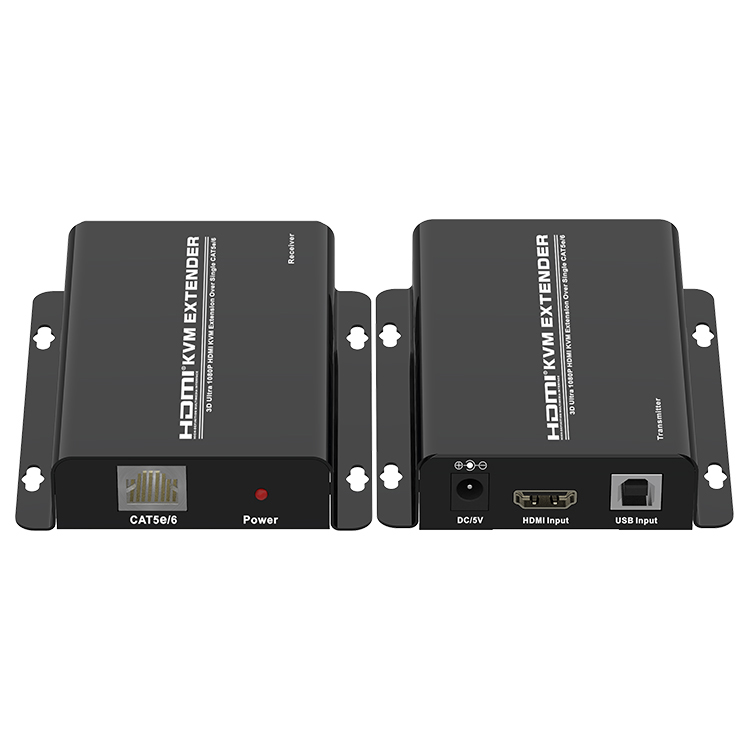

5.0 PANEL DESCRIPTIONS

HDMI KVM Extender Transmitter

DC5V---------------------------------------DC Power input port

HDMI INPUT ------------------------------- HDMI Source port

USB INPUT --------------------------------------USB Input port

Cat5e/6 Output ---------------------------Cat5e/6 Output port

HDMI Output -------------------------------HDMI Loopout port

POWER --------------------------------DC Power Input Status

HDMI KVM Extender Receiver

Cat5e/6 INPUT ------------------------------Cat5e/6 Input port

POWER ---------------------------------DC Power Input Status

DC5V----------------------------------------DC Power input port

HDMI OUTPUT ------------------------------HDMI Output port

Keyboard/Mouse -----------------------Keyboard and Mouse

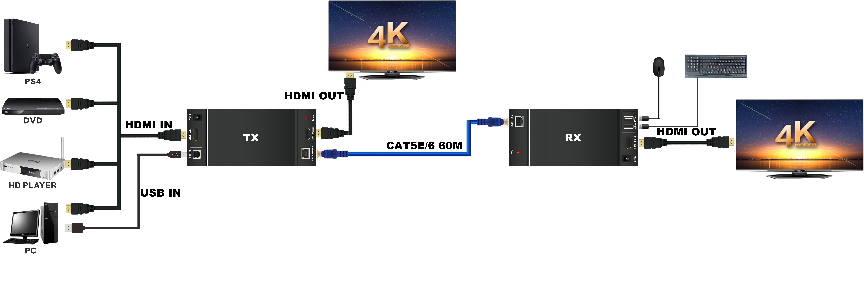

6.0 CONNECTION AND OPERATION

Before installation, please make sure all devices you wish to connect have been turned off.

6.01.Connect HDMI signal source to the transmitter of HDMI KVM extender;

6.02.Connect USB signal source to the transmitter of HDMI KVM extender;

6.03.Use LAN cable(Recommend:CAT5e/6) to connect transmitter and

receiver of HDMI KVM Extender;

6.04.Connect the display equipment with HDMI connector to the receiver of

HDMI KVM extender;

6.05.Connect keyboard and mouse to the receiver of HDMI KVM extender;

6.06.Turn on the power of all devices and the product starts to work.
