1.0 Introduction
CVBS/S-video to HDMI signal converter which will convert S-video/CVBS video signal and R/L audio signal to HDMI signal. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
2.0 Features
1. No need to install drivers, portable, flexible, plug and play;
2. Provide advanced signal processing with great precision,
colors, resolutions, and details;
3. Support PAL, NTSC3.58, NTSC4.43, SECAM,PAL/M, PAL/N
standard TV formats input;
4.Support Up Scaler;
5. Support HDMI 1080p or 720p output.
3.0 Package contents
Before attempting to use this unit please check the packing and make sure the
following items are contained in the shipping carton:
(1)AV/S-video to HDMI Converter---------------------------------1Pcs
(2)5V DC Power Supply----------------------------------------------1Pcs
(3)User Manual---------------------------------------------------------1Pcs
4.0 Specifications
Signal Inputs/Output |
|
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Input Video / Resolution | CVBS | NTSC / PAL |
S-video | NTSC / PAL |
Output Video / Resolution | HDMI | 480i / 576i / 1080i |
480p/576p/720p/1080p/ 640x480p/800x600p/1024x768p/ 1280x768p/1280x800p/1280x1024p/ 1360x768p/1600x1200p/1920x1200p |
Operating Frequency |
|
Vertical Frequency Range | 50/60Hz |
Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
Mechanical |
|
Size( L x W x H ) | 73x60.5x22.5mm |
Weight(Net) | 90g |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 ℃ to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10℃ to +80℃ |
Storage Humidity | 5% to 95 % RH (no condensation) |
Power Requirement |
|
External Power Supply | 5V DC@1A |
Power consumption (Max) | 2.5W |
Regulatory Approvals |
|
Converter Unit | FCC,CE, |
Power Supply | CE,FCC |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version |

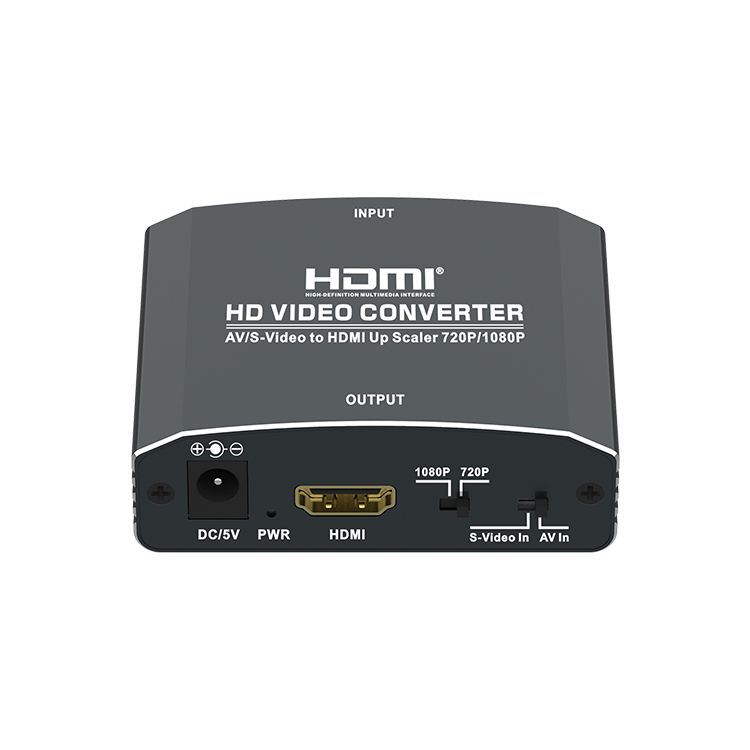

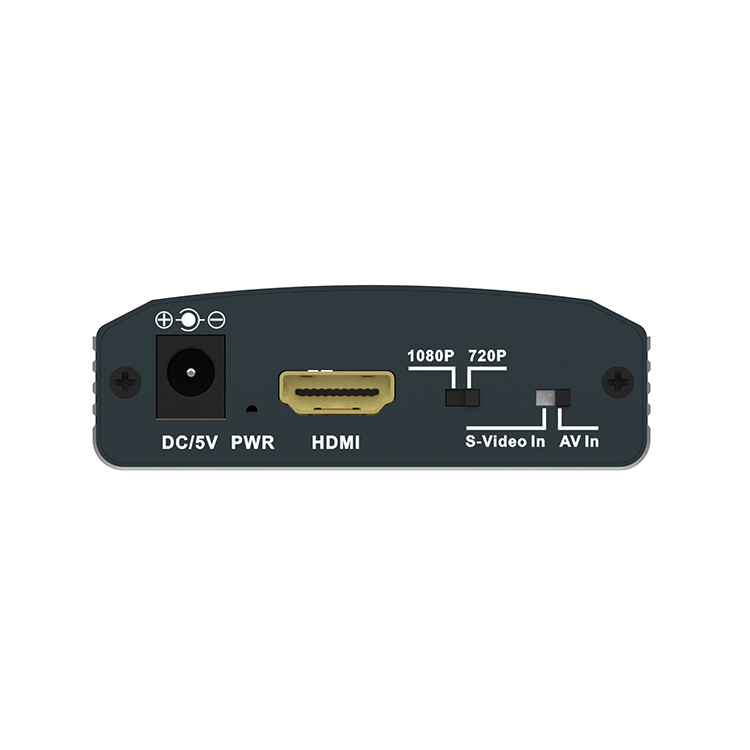

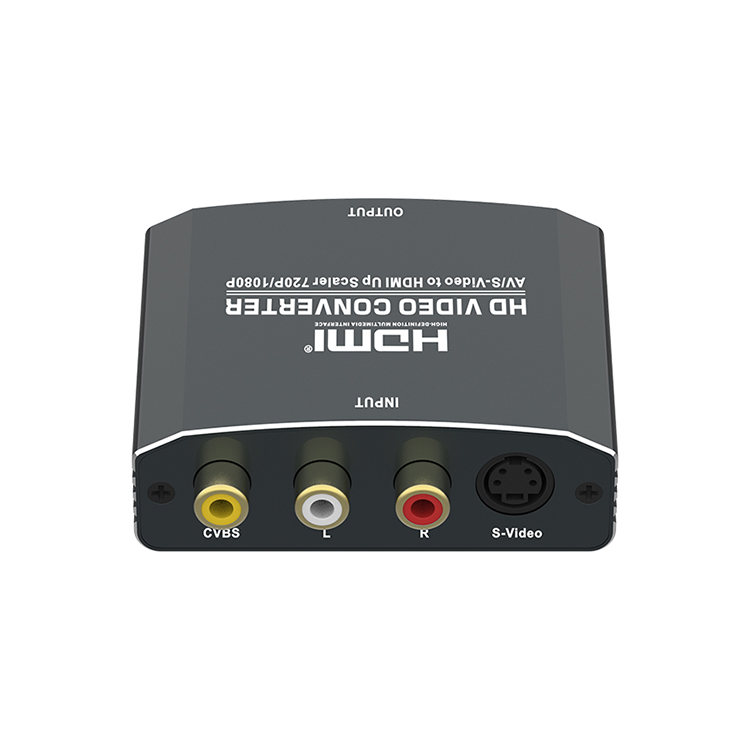

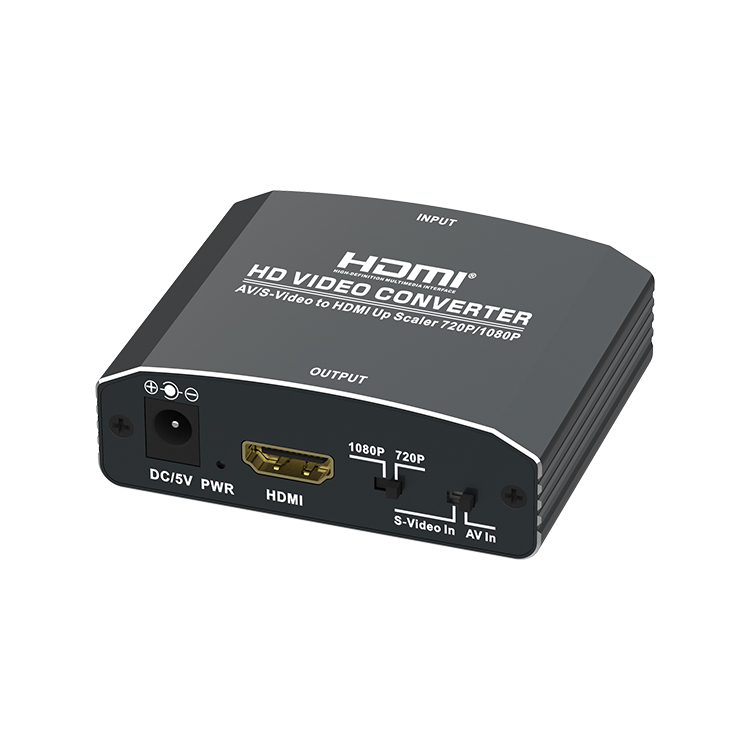

5.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal
input(S),output(S)and power requirements.

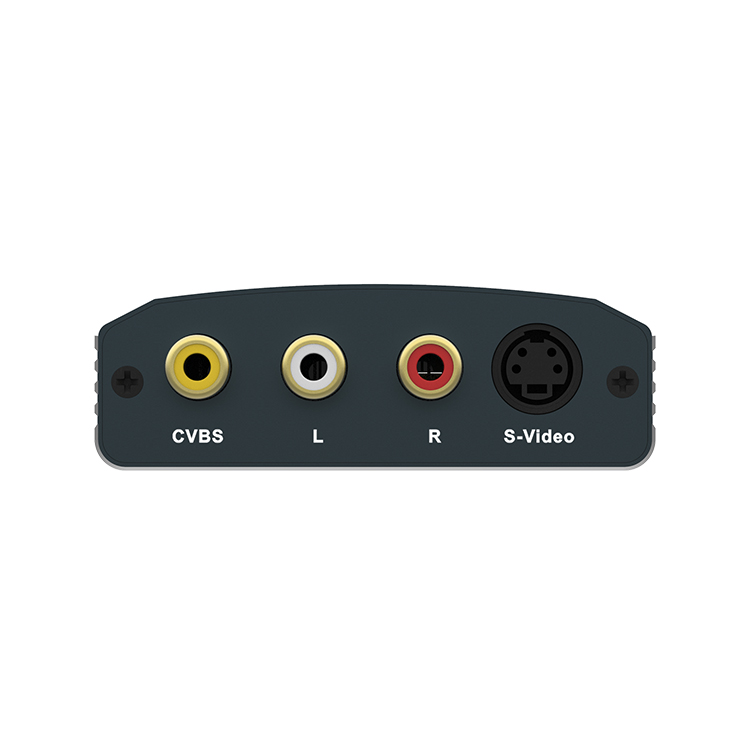

CVBS--------------------------------------------------------CVBS Input
L/R------------------------------------------------------------Audio Input
S-Video---------------------------------------------------S-Video Input
DC/5V-------------------------------------------------------DC 5V Input
PWR-----------------------------------------------------Power indicator
HDMI-------------------------------------------------------HDMI Output
720P/1080P-------------------720P and 1080P resolution switch
A/V/S-Video ----------------------------A/V or S-video Input switch
6.0 APPLICATION AREAS
A. Civil Industry: set-top boxes, XBOX360, PS3, high-definition players.
B. Industrial sector: high-definition camera, video camera, with this common display device will instead of big screen HDMI television monitors, to reduce the cost and space.

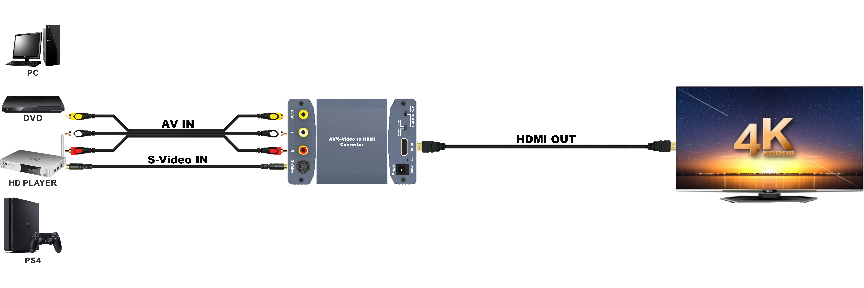

7.0 CONNECT AND OPERATE
Before installation, please make sure all devices you wish to connect have been turned off.
7.01 Connect the AV Cable between AV signal source and AV INPUT
of converter.
7.02 Connect the S-Video Cable between S-video signal source and S-video
INPUT of converter.
7.03 Connect the HDMI Cable between converter and HDMI display.
7.04 Connect the power adapter between converter and outlet. Open the
power supply of HDMI signal source and the display. Choose
corresponding input ports, then it works.
