1.0 INTRODUCTION

HDMI to CVBS or S-video signal converter which will convert HDMI video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, and s-video signals. while support DVI system sideline signals. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i,)or s-video signal. So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

2.0 FEATURES

1. Hardware conversion, plug and play without any software driver;

2. Support HDMI1.4b Compatible with HDCP;

3. Support NTSC and PAL two standard TV formats;

4. Input/output connector:

  Input: HDMI x 1

  Outputs: CVBS x 1; L / R x 1 S-video x 1

5. HDMI input: 480i/p,576i/p,720p,1080i/p,1920x1200;

6. compatible with DVI mode 800x600,1024x768,1280x720,1280x1024，

  1920x1080P@60hz

8. CVBS output: 480I, 576I

9. Audio output: L/R channels

10.S-video OUTPUT: bypass

11.Dimensions(mm):73(L)x60.5(W)x 22.5mm(H)

3.0 PACKAGING ACCESSORIES:

When first unpacking your extender please check to see if the following items are included:

1.HDMI to AV/S-Vdieo Converter------------------------1 PCS

2.User manual------------------------------------------------1 PCS

3.Power supply-----------------------------------------------1 PCS

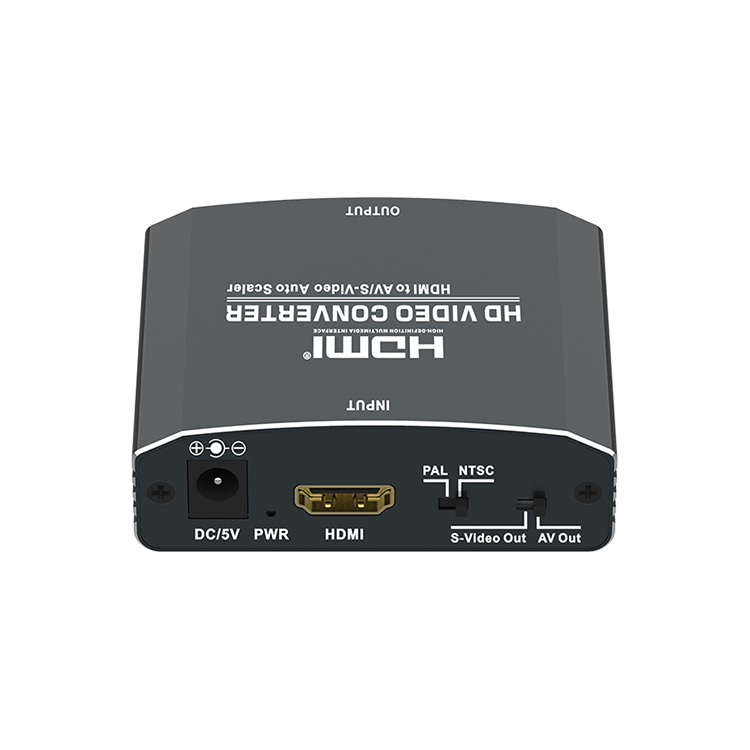

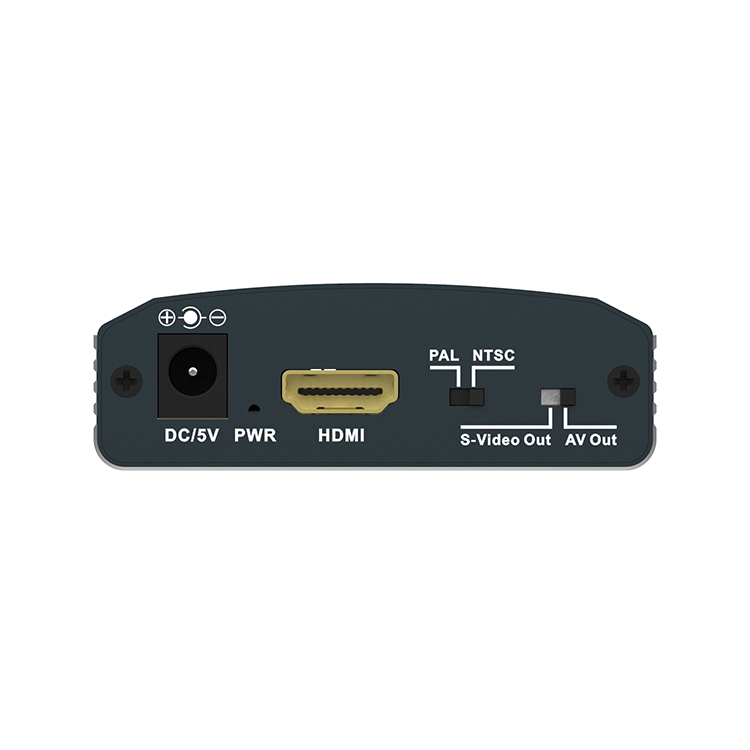

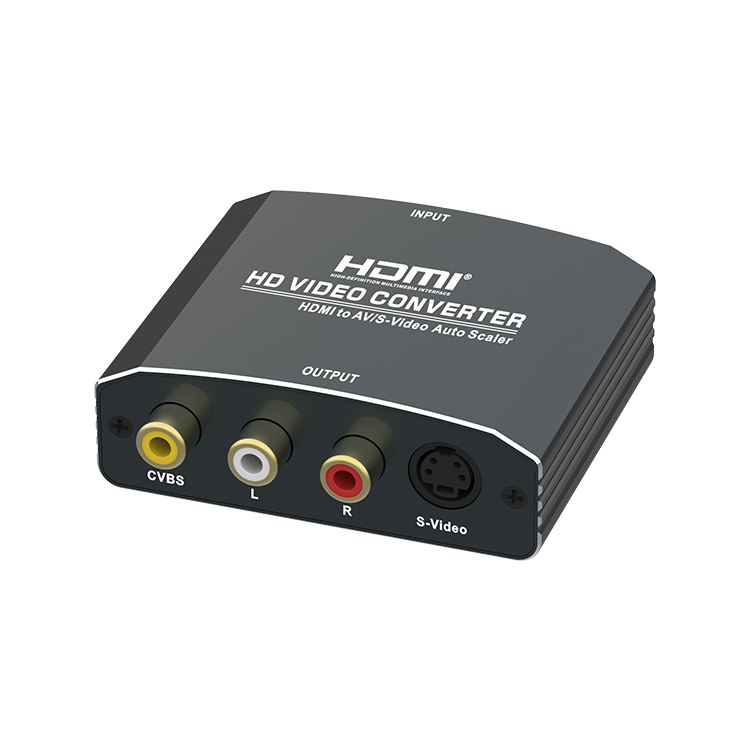

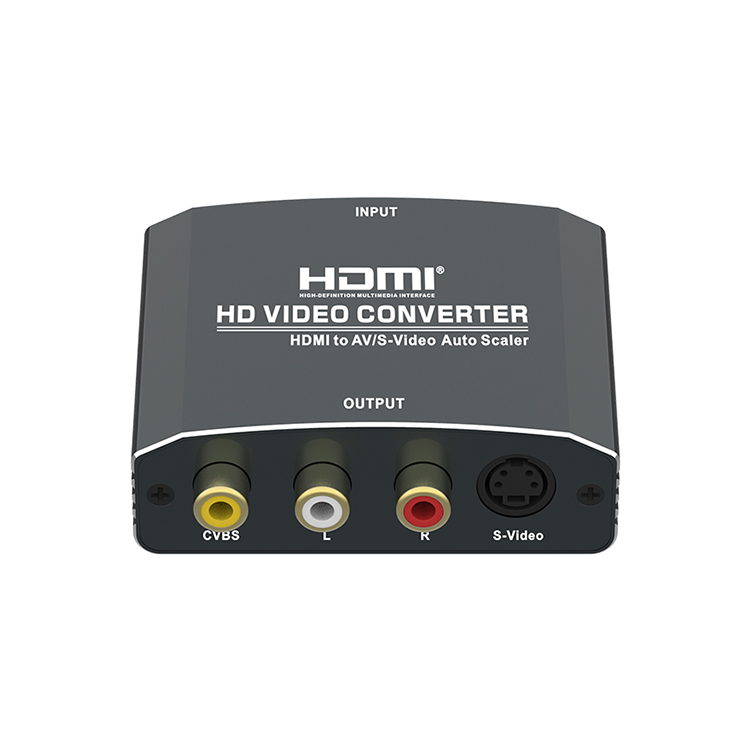

4.0 PANEL DESCRIPTIONS

DC/5V------------------------------------------------------------- DC 5V Input

PWR-----------------------------------------------------------Power indicator

HDMI----------------------------------------------------------------HDMI Input

PAL / NTSC --------PAL and NTSC standard format selector switch

A/V S-Video Out ---------------------------A/V or S-video output switch

A/V Out ------------------------------------------------------------- A/V Output

S-Video---------------------------------------------------------S-Video Output

5.0 APPLICATION AREAS

A. Civil Industry: set-top boxes, XBOX360, PS3, high-definition players.

B. Industrial sector: high-definition camera, video camera, with this common display device will instead of big screen HDMI television monitors, to reduce the cost and space.

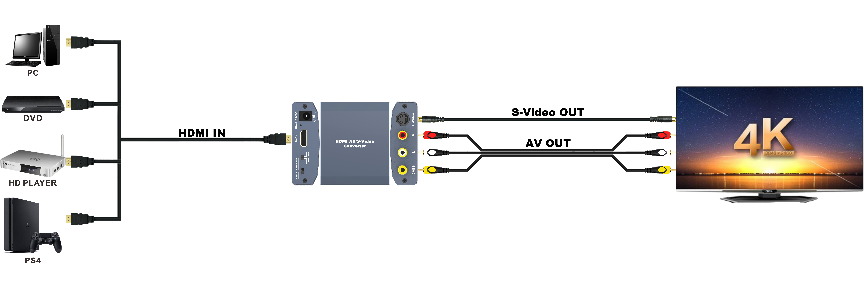

6.0 CONNECT AND OPERATE

Before installation, please make sure all devices you wish to connect have been turned off.

6.01 Connect the HDMI Cable between HDMI signal source and HDMI Input

     of converter.

6.02 Connect the A/V Cable between converter and A/V display.

6.03 Connect the S-video Cable between converter and S-video display.

6.04 Connect the power adapter between converter and outlet. Open the

     power supply of HDMI signal source and the display. Choose

     corresponding input ports, then it works.
